0.75m Ku Band Manual Flyaway Antenna


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

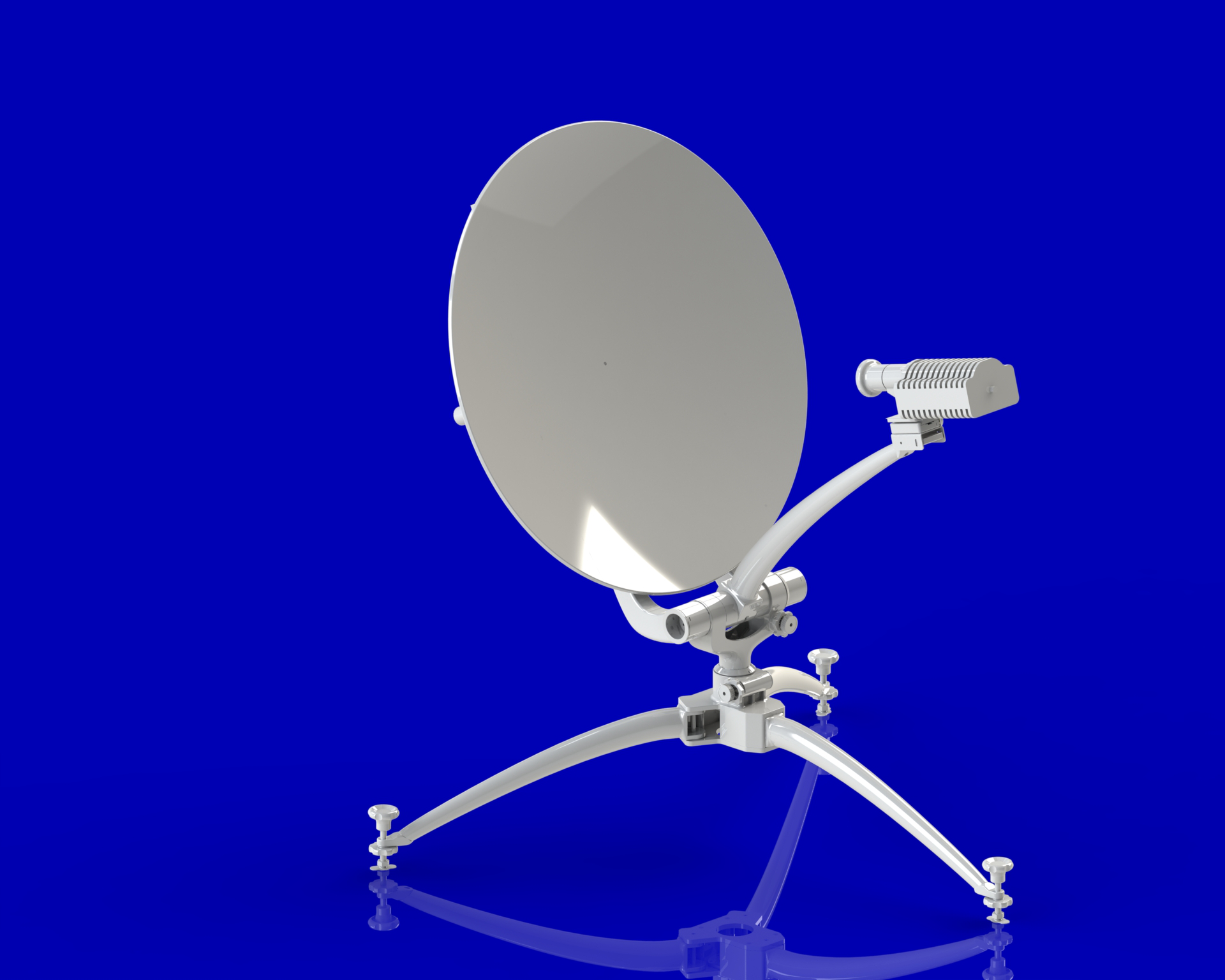

Our newly developed 0.75M flyaway antenna-PR-FCM075. As a small dish dia. Ku/Ka backpack type manual antenna. Adopted very unique foldable stow design and structure design combine carbon fiber and aluminum alloy in perfect, this antenna is a combination of firm, beauty and portable.

Highlight Features

Carbon fiber antenna reflector with light weight, high precision and high efficiency, corrosion resistance and other characteristics, it ensured the antenna in the normal operation under harsh environment in greatest degree.

*Compact structure, Lightweight, portable, rapid deployment, high performance, a person can install and point to satellite within 5 minutes,available in airline baggage.

*Designed specifically for field use, regardless of when and where, it can quickly transfer high-quality broadband content.

Electrical Specification

Type

Ka-Band

Ku-Band

Operating Frequency (GHz)

RX

TX

RX

TX

17.7-21.2

27.5-31.0

10.7-12.75

13.75-14.5

Gain, mid-band (dBi)

41.7@20.0GHz

45.2@30.0GHz

37.2@12.0GHz

38.6@14.0GHz

Polarization

Circular

Linear

Axis Ratio

1.5dB

1.5dB

/

VSWR

1.3:1

1.3:1

1.3:1

1.3:1

-3 dB Beam Width, Mid-band

1.33°

0.90°

2.25°

1.92°

Tx to RX isolation

85dB

80dB

Cross-polarization isolation

/

35dB

Sidelobe

CCIR 580-5

CCIR 580-5

Tx. Power Capability

/

100W

/

200W

Feed Interface

WR42

WR28

WR75

WR75

Feed Insertion Loss

0.3dB

0.3dB

0.2dB

0.2dB

Mechanical Specifications

Antenna Type

Single offset

Main Reflector

Carbon Fiber

Feed

Ku/Ka Quick feed swap

Weight

9Kg

Deploy/Stow

3 minutes

Operating Wind

Stable wind≤50km/h; gusting≤65km/h (need increase weight)

Operating Temperature

-40°C+55°C

Storage Temperature

-55°C+80°C

Drive Mode

Manual

Azimuth Travel

360°

Elevation Travel

90°

Surface Accuracy (R.M.S)

0.2mm

Relative Humidity

0%~100
