1.0m Ku/Ka Band Manual Flyaway Antenna


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

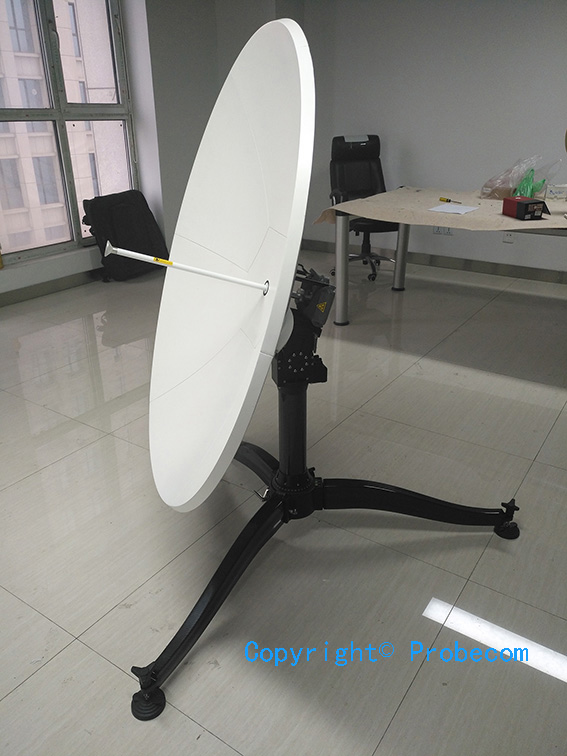

Probecom Ku band flyaway antennes serie products include 1.0m and 1.2m. The Probecom 1.2m manual flyaway antenna is specially designed for highly portable antenna by adopting carbon fiber material with light weight and can be assembled in less than 5 minutes by one person .

It can provide users exceptional performance in high gain and low side lobe



Highlight Features

Carbon fiber antenna reflector with light weight, high precision and high efficiency, corrosion resistance and other characteristics, it ensured the antenna in the normal operation under harsh environment in greatest degree.

Compact structure, Lightweight, portable, rapid deployment, high performance, a person can install and point to satellite within 5 minutes,available in airline baggage.

The latest design of the EHF-band satellite antenna, being compact and robust, cost-effective can be used in the fast and reliable satellite communications.

Designed specifically for field use, regardless of when and where, it can quickly transfer high-quality broadband content.

* IP specificationIP65


Applications

* Sudden public events and all kinds of disasters on-site information gathering Disaster relief.

Public security, military, government, oil, water conservancy, electricity, finance and other important sectors of the country

* The remote areas and the vast rural areas out of coverage.Field operations, exploration, military police and news media.



Components

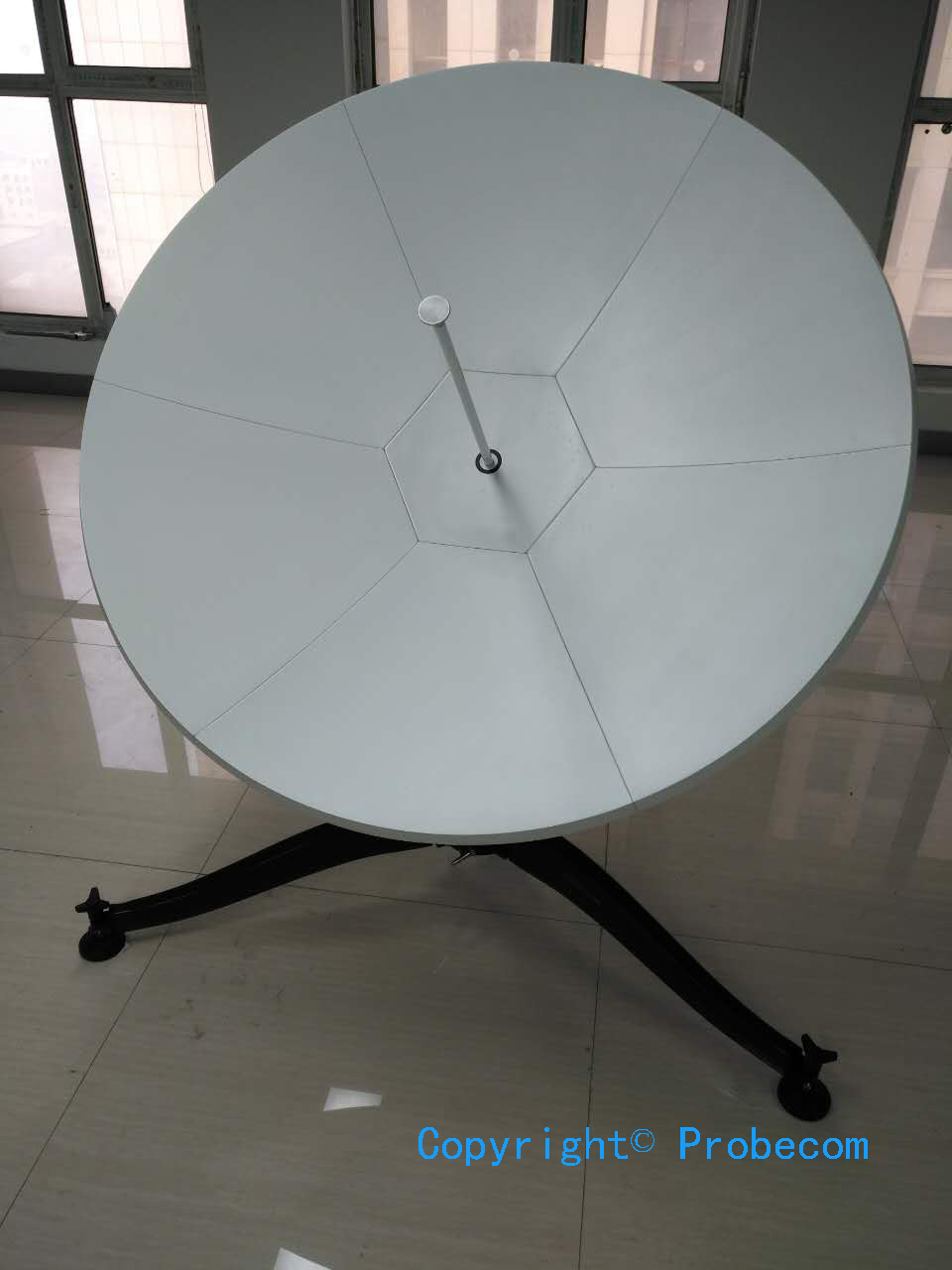

* Ring-Focus Sputtering Plate Antenna

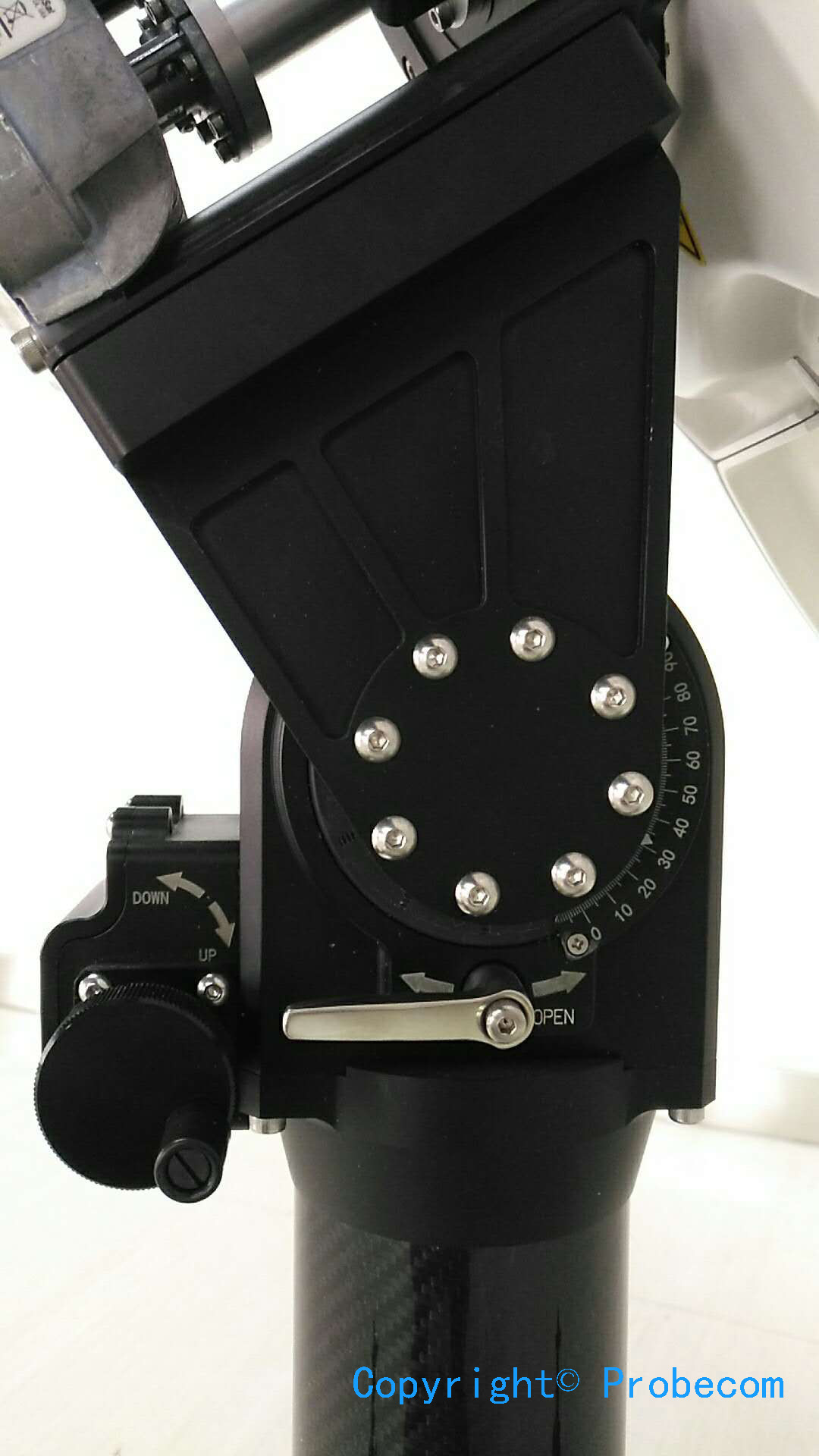

* Azimuth & elevation turntable

Portable case

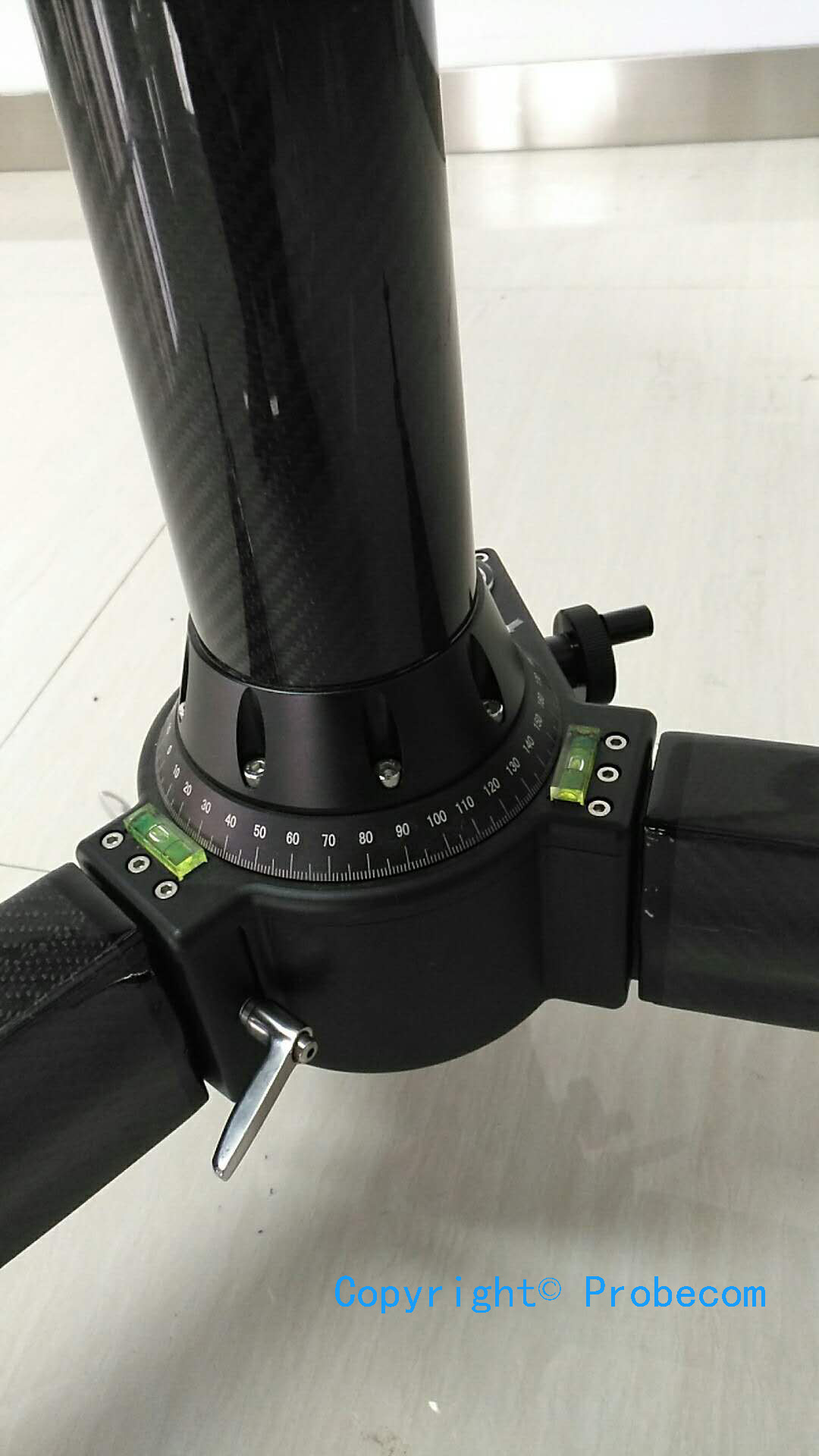

* Compass& leveling




Electrical Specification

Type

Ka-Band

Ku-Band

Operating Frequency (GHz)

RX

TX

RX

TX



19.2-21.2

29.0-31.0

10.7-12.75

13.75-14.5

Gain, mid-band (dBi)

44.3@20.2GHz

47.7@30.0GHz

39.8@12.0GHz

41.1@14.0GHz

Polarization

RHCP/LHCP

Linear V/H Adjustable

Axis Ratio

1.2dB

1.5dB

/

VSWR

1.4:1

1.4:1

1.5:1

1.3:1

-3 dB Beam Width, Mid-band

1.0°

0.68°

1.68°

1.44°

Tx to RX isolation

85dB

80dB

Cross-polarization isolation

/

35dB

Sidelobe

CCIR 580-5

CCIR 580-5

Tx. Power Capability

/

100W

/

100W

Feed Interface

WR42

WR28

WR75

WR75

Feed Insertion Loss

0.6dB

0.5dB

0.5dB

0.4dB

Mechanical Specifications

Antenna Type

Splashing Plate

Main Reflector

Carbon Fiber

Feed

Quick feed swap

Weight

18Kg (Ka band)

19Kg (Ku band)

Operating Wind

Stable wind≤50km/h; gusting≤65km/h (need increase weight)

Operating Temperature

-40°C+60°C

Drive Mode

Manual

Azimuth Travel

360°

Elevation Travel

0°90°

Surface Accuracy (R.M.S)

0.2mm

Relative Humidity

0%~100

1
