1.2m Ku Band Manual Flyaway
Online consulting:
- DESCRIPTION
- TECHNICAL
- SPECIFICATIONS

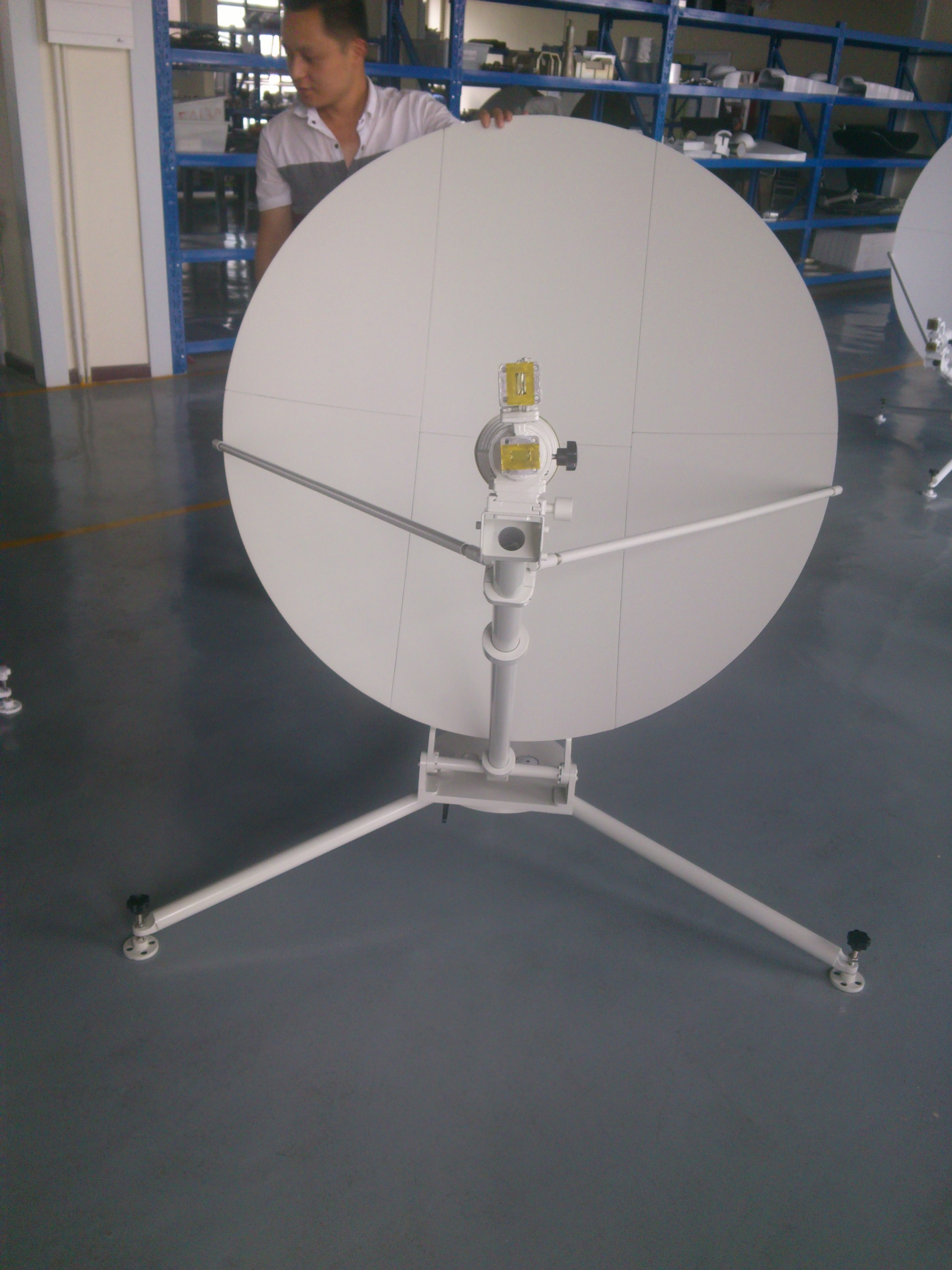

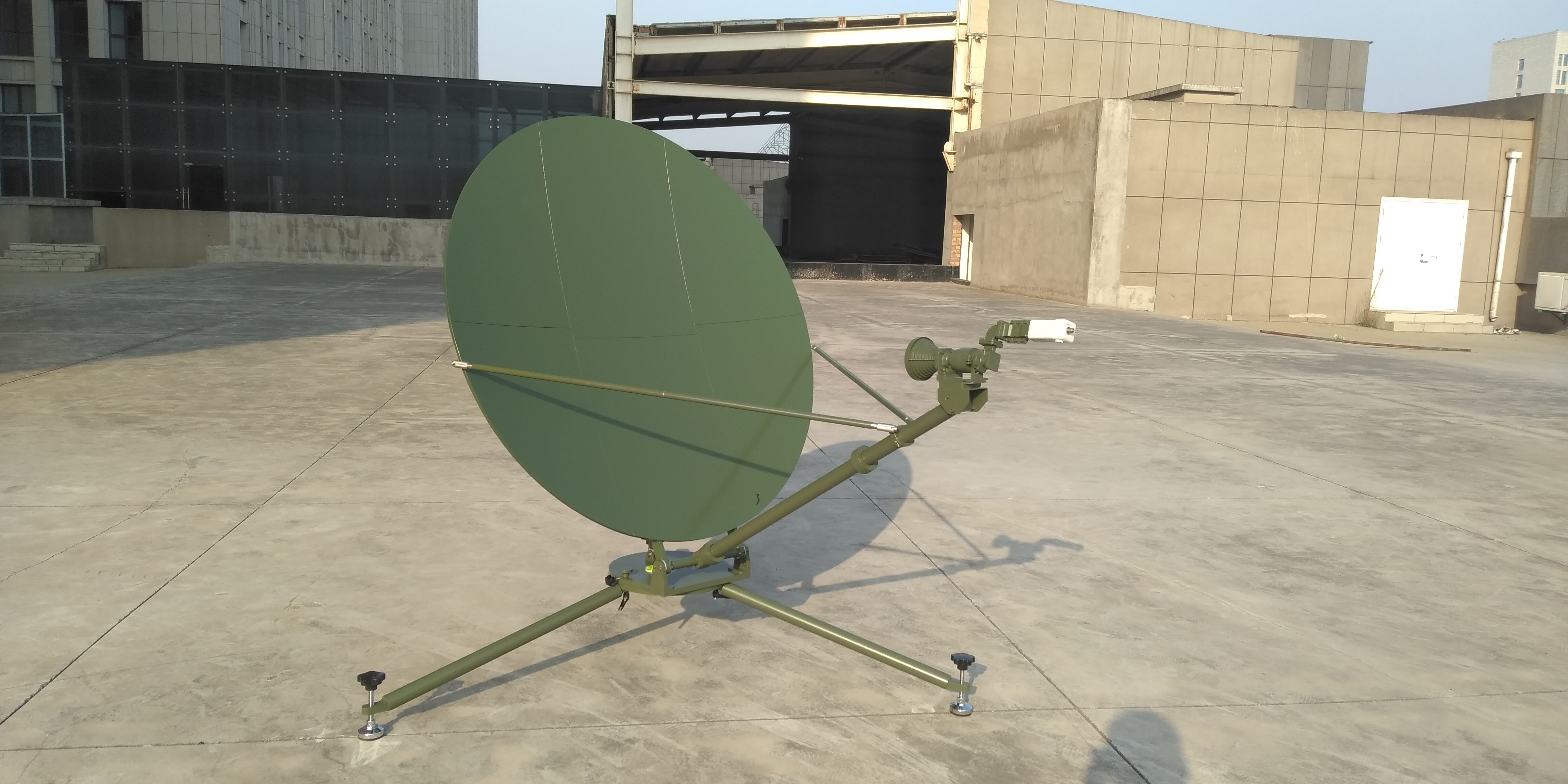

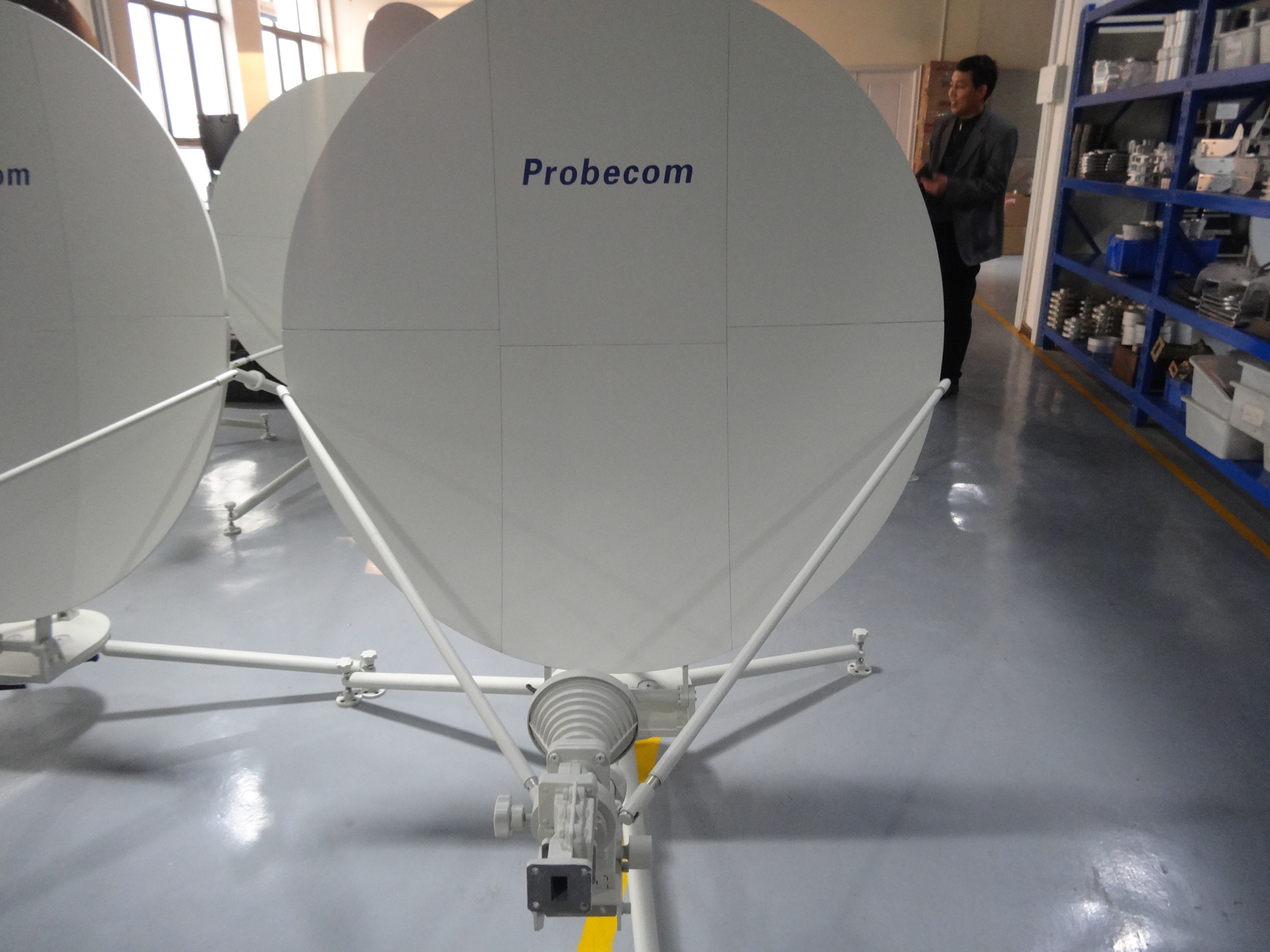

The probecom 1.2m flyaway manual antenna is specially designed for highly portable antenna by adopting carbon fiber material with light weight and can be assembled in less than 3 minutes by two person .
It can provide users exceptional performance in high gain and low side lobe.
|
Applications： l Sudden public events and all kinds of disasters on-site information gathering Disaster relief. l Public security, military, government, oil, water conservancy, electricity, finance and other important sectors of the country l The remote areas and the vast rural areas out of coverage. l Field operations, exploration, military police and news media. |
|
|
Highlight Features l Carbon fiber antenna reflector with light weight, high precision and high efficiency, corrosion resistance and other characteristics, it ensured the antenna in the normal operation under harsh environment in greatest degree. l Compact structure, Lightweight, portable, rapid deployment, high performance, a person can install within 3 minutes, available in airline baggage. l The latest design of the Ku-band satellite antenna, being compact and robust, cost-effective can be used in the fast and reliable satellite communications. l Designed specifically for field use, regardless of when and where, it can quickly transfer high-quality broadband content.
|
|
|
|

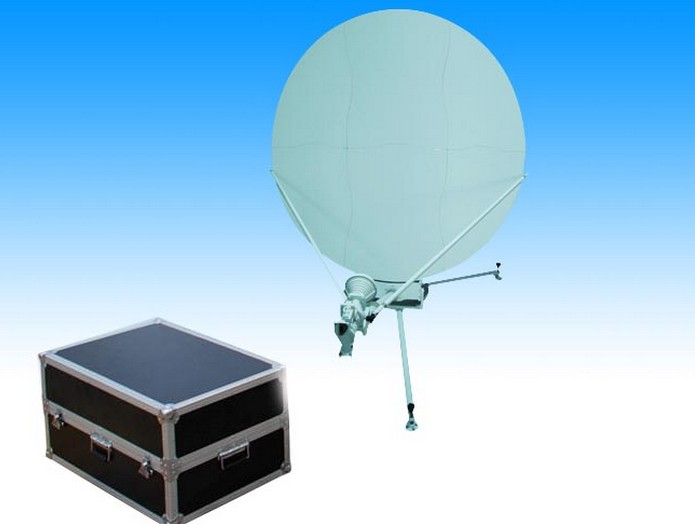

Components l Single Offset Antenna l Azimuth & elevation turntable l Portable case l Compass& leveling |
|
Electrical Specification |
|||||
|
Type |
CFM120EC |
FCM120EKL |
|||
|
Frequency(GHz) |
EC C band |
Extended ku band |
|||
|
|
Receive |
Transmit |
Receive |
Transmit |
|
|
|
3.4-4.2 |
5.85-6.725 |
10.7~12.75 |
13.75~14.5 |
|
|
Typical Gain(dBi) |
31.8@4GHz |
35.3@6GHz |
41.6@12GHz |
43@14GHz |
|
|
Polarization |
Linear |
Linear |
|||
|
VSWR |
1.30:1 |
1.30:1 |
1.30:1 |
1.30:1 |
|
|
Beam width: -3dB |
4.22° |
2.81° |
1.36° |
1.15° |
|
|
Power Handing Capability |
|
1KW |
|
200W |
|
|
Feed Interface |
CPR-229F |
CPR-137F |
WR75 |
WR75 |
|
|
Feed Insertion Loss(dB) |
0.3dB |
0.2dB |
0.4dB |
0.2dB |
|
|
Tx/Rx Isolation |
80dB |
80dB |
|||
|
Cross Polarization Isolation |
≥30dB |
≥30dB |
|||
|
Side lobe |
At least 90% of the side-lobe peaks does not exceed： |
||||
|
MECHANICAL SPECIFICATIONS |
|||||
|
Weight |
22kg |
19kg |
|||
|
material |
Carbon Fiber |
||||
|
Mounting time |
3 minutes （Two Persons） |
||||
|
Drive mode |
Manual Drive |
||||
|
Azimuth Travel |
-15°～15° Fine adjust |
||||
|
Elevation travel |
10°～85° |
||||
|
Polarization Travel Rate |
±90° |
||||
|
Surface Accuracy (R.M.S) |
0.3mm |
||||
|
Ambient Temperature |
-30°～+60° |
||||
|
Relative Humidity |
0％～100％ |
||||
