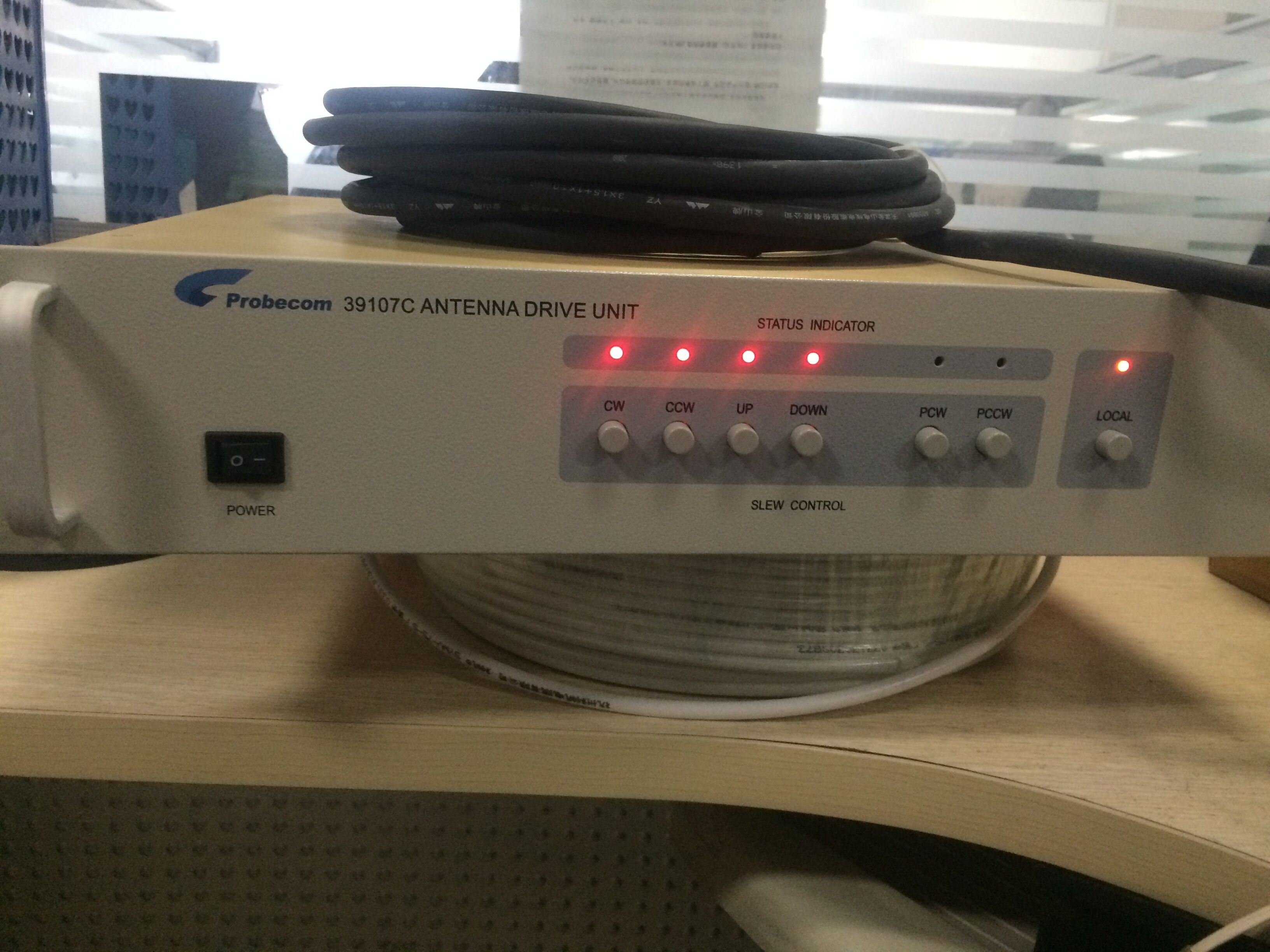

39107C Antenna Control System (AC Controller )
- DESCRIPTION
- TECHNICAL
- SPECIFICATIONS
39107C is a single speed ADU which is one part of 39107DT antenna control system, 39107C have quickly Install ,Easy Operation and Human Interface. it can work any antenna and east to drive antenna Azimuth ,Elevation and POL without any display.it will be easy to upgrade to 39107DT system smoothly.
Main Function:
*Azimuth, Elevation drive(POL option)
* Single speed
* Limit switches protection
* Status Indicator
* Control Switch of Direction (CW, CCW, UP, DOWN), (PCW and PCCW option)
* Power protection
* Easy upgrade to 39107DT
