X Band 50W Pulse Continuous Wave SSPA
Online consulting:
- DESCRIPTION
- TECHNICAL
- SPECIFICATIONS

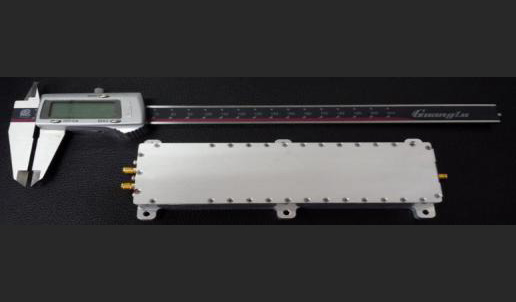

X-band 50W pulse Continuous Wave
Solid-state Power Amplifier For Satellite Communication
X band TWTA
Ability Description :
1、Experienced R&D engineer team;
2、Powerful RF design&simulation software and testing facility;
3、Customized L/S/C/X/ku/K/Ka/V/Q/W band Milimeter HPA, Milimeter SSPA, Milimeter SSPB;
4、Ultra wideband products is avaliable;
5、Ultra output power capacity is avaliable;
6、Meets for EMC(Electro Magnetic Compatibility) testing,Satellite communication,Radar system requirements;
7、CW(continous wave) and PW(pulse wave) is avaliable;
8、SSPA,SSPB,HPA, Power amplifier modules is avaliable;
9、Up converter modules is avaliable
|
Operating Frequency |
X-band（4GHz bandwidth） |
|
Output power |
≥50W（47dBm） |
|
Gain |
≥50dB |
|
Gain Flatness |
≤±2dB |
|
Input / Output VSWR |
≤1.5：1 |
|
Spurious Suppression |
≤-60dBc |
|
Pulse Width |
1us--1ms |
|
Duty Cycle |
≤50% |
|
Rising Edge / Falling Edge |
≤30ns |
|
Pulse Top Drop |
≤10% |
|
Power Supply Voltage |
28VDC |
|
Power Consumption |
≤120W |
|
Cooling Method |
Conduction Cooling |
|
RF Input Interface |
SMA-K |
|
RF Output Interface |
SMA-K |
|
Operating Temperature |
-40℃～+70℃ |
|
Storage Temperature |
-55℃～+85℃ |
|
Vibration and Shock |
Missile |
