SSPA & TWTA

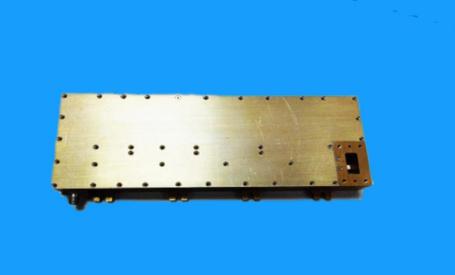

SSPA 13.5-14.5G 50W


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

Introduction

* Ultra-wideband doubled frequency CW SSPA, SSPB, TWTATravelling wave tube amplifier

* Higher linear characteristics SSPA, SSPB, TWTATravelling wave tube amplifier

* Pulse wave SSPA, SSPB, TWTATravelling wave tube amplifier

* Ka band KW PW / CW SSPA, SSPB, TWTATravelling wave tube amplifier

* Q band 1~400 W CW SSPA, SSPB, TWTATravelling wave tube amplifier

* Ultra-wideband doubled frequency traveling wave tube driver MPM

* Phased array Tx/Rx components

* V~W band SSPA, SSPB, TWTATravelling wave tube amplifier

*THz frequency conversion, frequency doubling and amplifying module




Ability Description :

1、Experienced R&D engineer team;

2、Powerful RF design&simulation software and testing facility;

3、Customized L/S/C/X/ku/K/Ka/V/Q/W band SSPA;

4、Ultra wideband products is avaliable;

5、Ultra output power capacity is avaliable;

6、Meets for EMC(Electro Magnetic Compatibility) testing,Satellite communication,Radar system requirements;

7、CW(continous wave) and PW(pulse wave) is avaliable;

8、SSPA,SSPB,HPA, Power amplifier modules is avaliable;

9、Up converter modules is avaliable



High performance, high power, high efficiency, light weight, miniaturization and easy to use are the characteristics of our products, standardization and serialization are our goal.

13.5-14.5G 50W

Operating system :CW

Application: outdoor (Replace of ADVANTEC products)

MTPF: ≥2000h

P-1: ≥47d Bm

Power gain:50d B

Small signal gain: 60dB

Third-order intercept:  35d Bc@P-1 back 7dB

Efficiency:  20%

Size: 196*84*18mm
