SSPA & TWTA

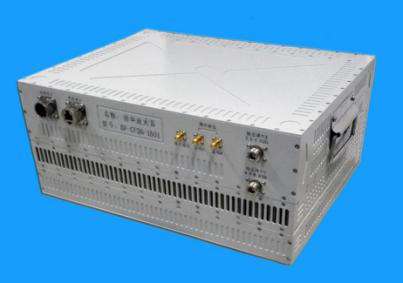

SSPA 2.5-6.5 100W


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

Introduction


* Ultra-wideband doubled frequency CW SSPA (Solid state power amplifier)

* Higher linear characteristics SSPA (Solid state power amplifier)

* Pulse wave SSPA (Solid state power amplifier)

* Ka band KW PW / CW SSPA (Solid state power amplifier)

* Q band 1~400 W CW SSPA (Solid state power amplifier)

* Ultra-wideband doubled frequency traveling wave tube driver MPM

* Phased array Tx/Rx components

* V~W band SSPA (Solid state power amplifier)

*THz frequency conversion, frequency doubling and amplifying module


Ability Description :

1、Experienced R&D engineer team;

2、Powerful RF design&simulation software and testing facility;

3、Customized L/S/C/X/ku/K/Ka/V/Q/W band SSPA;

4、Ultra wideband products is avaliable;

5、Ultra output power capacity is avaliable;

6、Meets for EMC(Electro Magnetic Compatibility) testing,Satellite communication,Radar system requirements;

7、CW(continous wave) and PW(pulse wave) is avaliable;

8、SSPA,SSPB,HPA, Power amplifier modules is avaliable;

9、Up converter modules is avaliable



High performance, high power, high efficiency, light weight, miniaturization and easy to use are the characteristics of our products, standardization and serialization are our goal.

2.5-6.5 100W

Operating system :CW / PW compatible

Application:  Indoor test instruments (-40~+50°C)

Service life:  ≥15 years

Saturation output power: ≥51dBm

Power gain: ≥45d B

Small-signal gain: ≥60d B ± 1.5d B

Overall efficiency: 20%

ACL accuracy: ± 0.5d B

Second Harmonic: 40d Bc

Communication: Local control / Ethernet remote control



1
