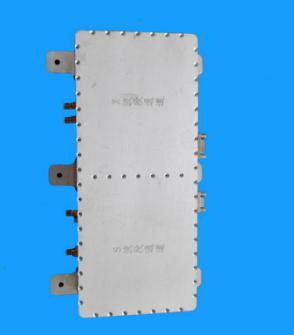

SSPA 2.7-6.2G 8-12G 50W


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

Introduction

* Ultra-wideband doubled frequency CW SSPA, SSPB (Solid State Power Amplifier with BUC)

* Higher linear characteristics SSPA, SSPB (Solid State Power Amplifier with BUC)

* Pulse wave SSPA, SSPB (Solid State Power Amplifier with BUC)

* Ka band KW PW / CW SSPA, SSPB (Solid State Power Amplifier with BUC)

* Q band 1~400 W CW SSPA, SSPB (Solid State Power Amplifier with BUC)

* Ultra-wideband doubled frequency traveling wave tube driver MPM

* Phased array Tx/Rx components

* V~W band SSPA, SSPB (Solid State Power Amplifier with BUC)

*THz frequency conversion, frequency doubling and amplifying module



Ability Description :

1、Experienced R&D engineer team;

2、Powerful RF design&simulation software and testing facility;

3、Customized L/S/C/X/ku/K/Ka/V/Q/W band SSPA, SSPB (Solid State Power Amplifier with BUC);

4、Ultra wideband products is avaliable;

5、Ultra output power capacity is avaliable;

6、Meets for EMC(Electro Magnetic Compatibility) testing,Satellite communication,Radar system requirements;

7、CW(continous wave) and PW(pulse wave) is avaliable;

8、SSPA,SSPB,HPA, Power amplifier modules is avaliable;

9、Up converter modules is avaliable



High performance, high power, high efficiency, light weight, miniaturization and easy to use are the characteristics of our products, standardization and serialization are our goal.

2.7-6.2G 8-12G 50W

Operating system: CW (50% max)

Application: Missile-borne (-40~+50°C)

MTPF : ≥2000h

Peak Power:  47d Bm

Power gain: ≥50d B

Small-signal gain: ≥60dB

Modulation depth≥90dBc

Channel Efficiency: 25%

Output: Band/ Dual channel /same amplitude phase/Electrical switching

Size:230*150*50mm
