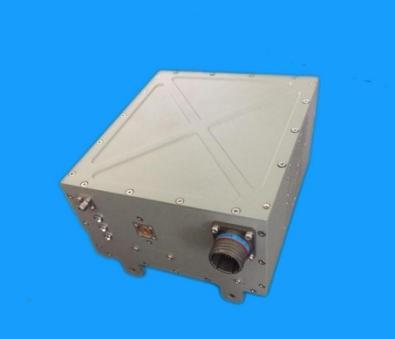

SSPA 33-36G 250W

Introduction

* Ultra-wideband doubled frequency CW SSPA

* Higher linear characteristics SSPA

* Pulse wave SSPA

* Ka band KW PW / CW SSPA

* Q band 1~400 W CW SSPA

* Ultra-wideband doubled frequency traveling wave tube driver MPM

* Phased array Tx/Rx components

* V~W band SSPA

*THz frequency conversion, frequency doubling and amplifying module

Ability Description :

1、Experienced R&D engineer team;

2、Powerful RF design&simulation software and testing facility;

3、Customized L/S/C/X/ku/K/Ka/V/Q/W band SSPA;

L Band TWTA, S Band TWTA, Q Band TWTA

4、Ultra wideband products is avaliable;

5、Ultra output power capacity is avaliable;

6、Meets for EMC(Electro Magnetic Compatibility) testing,Satellite communication,Radar system requirements;

7、CW(continous wave) and PW(pulse wave) is avaliable;

8、SSPA,SSPB,HPA, Power amplifier modules is avaliable;

9、Up converter modules is avaliable

High performance, high power, high efficiency, light weight, miniaturization and easy to use are the characteristics of our products, standardization and serialization are our goal.

33-36G 250W

Operating system: PW (30% max)

Application: Airborne(-40~+50°C)

MTPF ： ≥ 2000h

Peak Power: ≥55dBm

Power gain: ≥55d B

Small-signal gain:≥90d B

Channel efficiency: ≥15%

Communication method: RS422

Size:190*170*120mm
