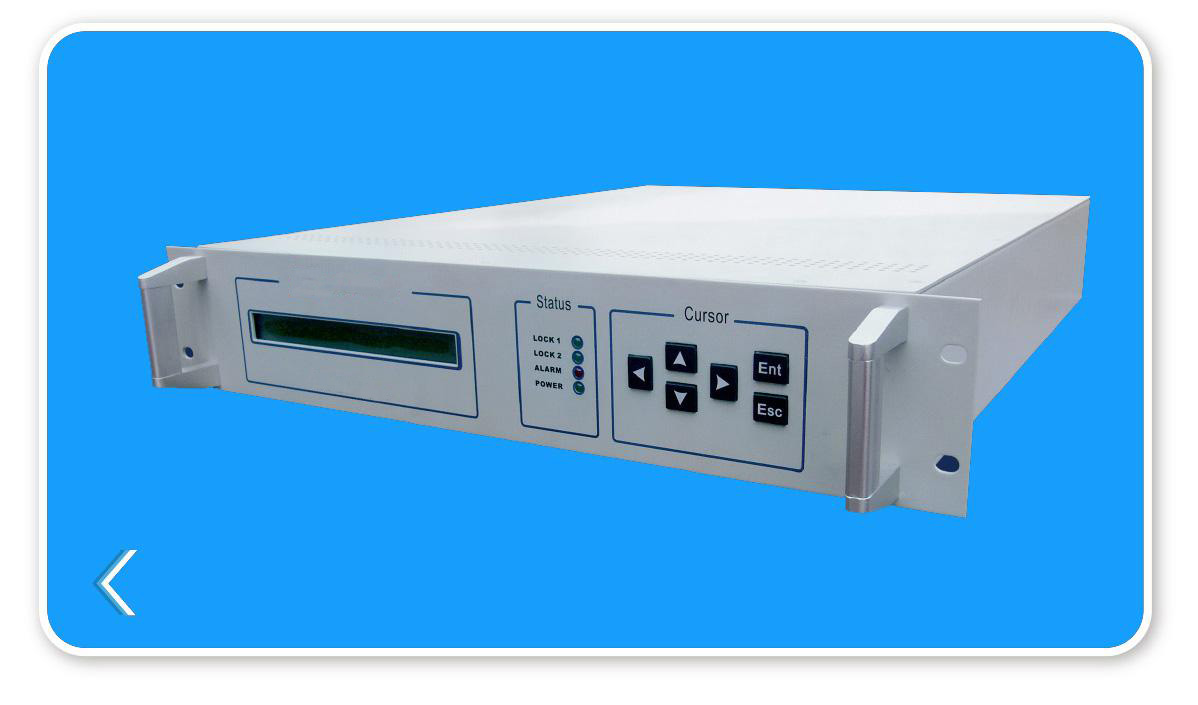

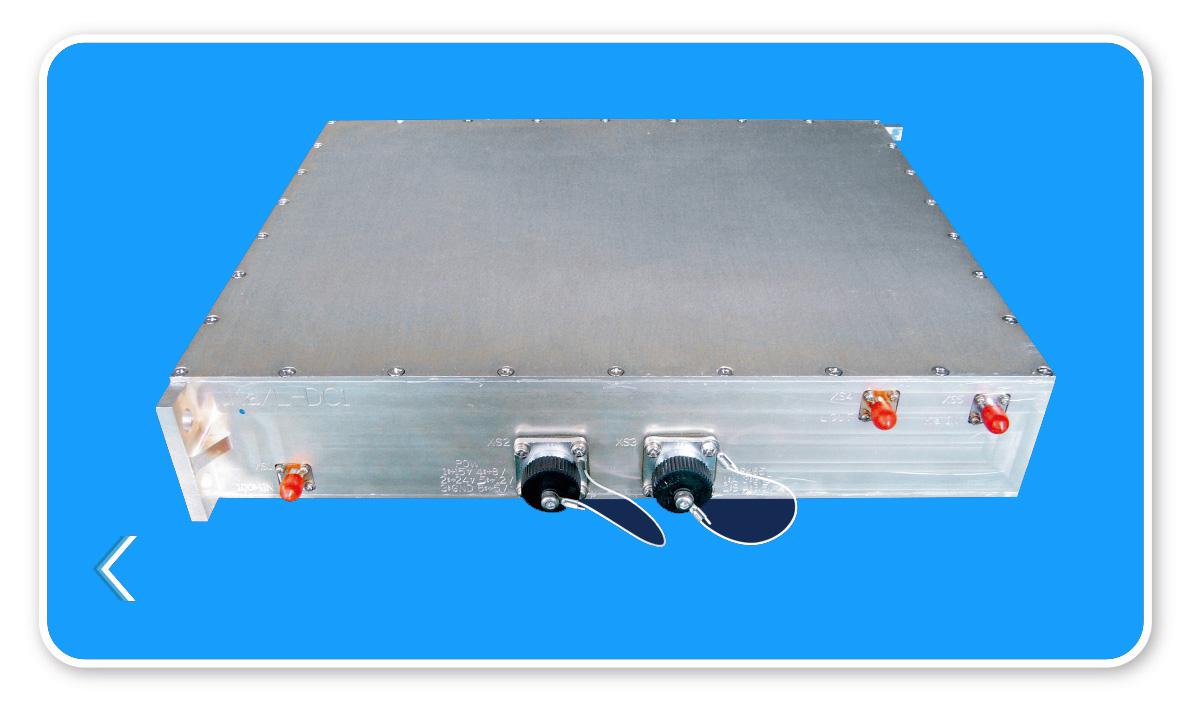

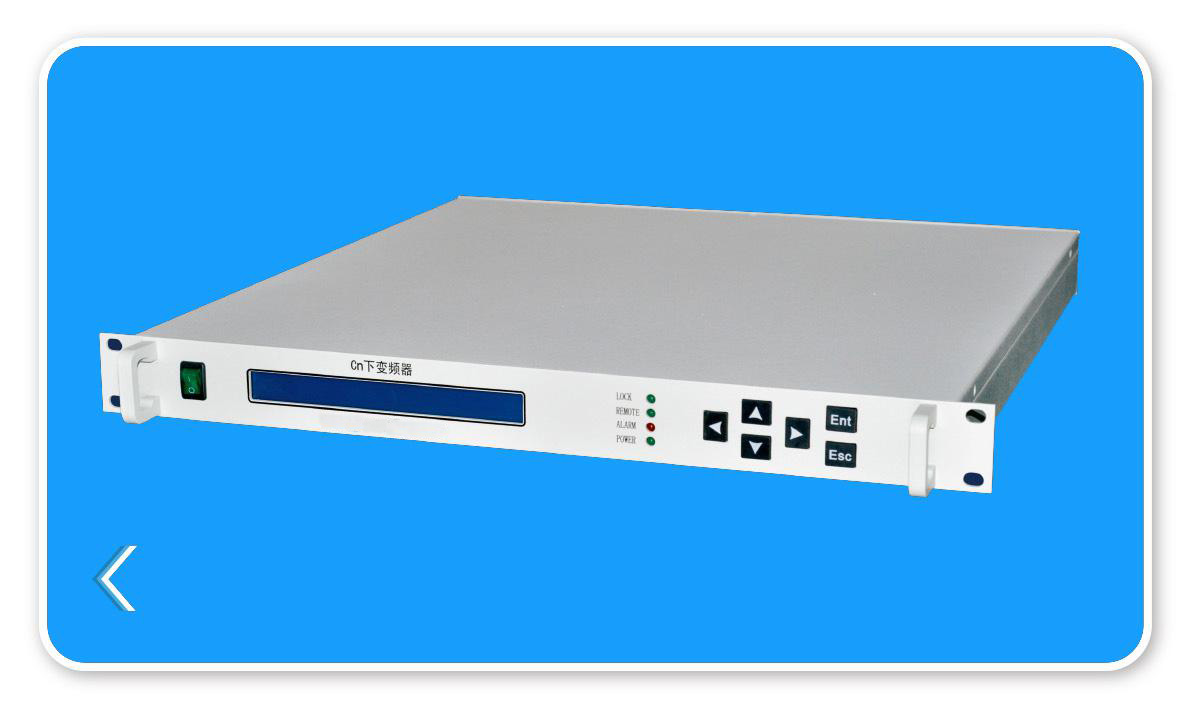

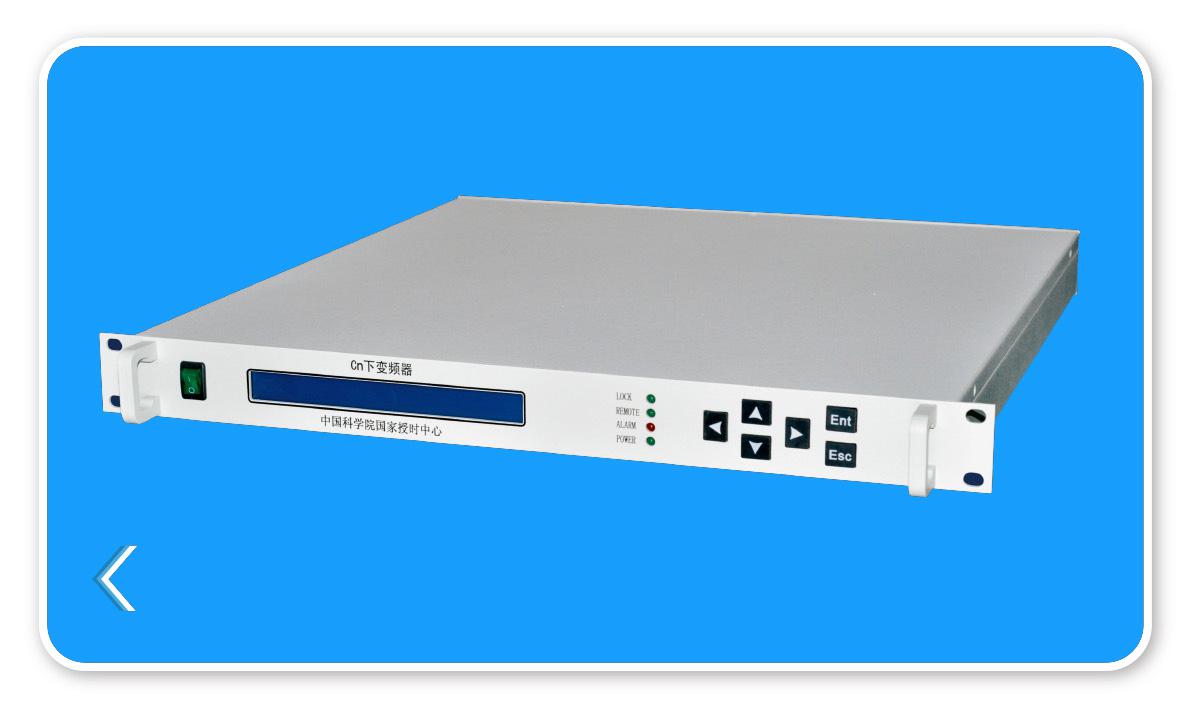

BUC

Converter Series


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

The UC,DC up&down converter series which produced by Probecom company are widely applied in many fields, such as satellite communication, radar, navigation, monitoring and control, broadcast television and other fields. The products features reliable performance, flexible configuration .



Features:

.High reliability, high stability, high quality

.Built-in high stability reference source,internal and external reference adaptive.

.Low phase noise

.Low stray

.Local control / remote control are switchable

.Low VSWR

.Wide operating temperature range


Options:

. 1: 1 dual channel backup or online at the

same time

.Multi-species, multi-standard can be

made freely

.Indoor and outdoor optional

.Frequency resolution is optional



Ability Description :

1、Experienced R&D engineer team;

2、Powerful RF design&simulation software and testing facility;

3、Customized L/S/C/X/ku/K/Ka/V/Q/W band SSPA;

4、Ultra wideband products is avaliable;

5、Ultra output power capacity is avaliable;

6、Meets for EMC(Electro Magnetic Compatibility) testing,Satellite communication,Radar system requirements;

7、CW(continous wave) and PW(pulse wave) is avaliable;

8、SSPA,SSPB,HPA, Power amplifier modules is avaliable;

9、Up converter modules is avaliable





Up-link Converter Series

Type

Model

Input Frequency
(MHz)

Output Frequency
(MHz)

X:Option Description

Up-link Converter Series

LUC20000X

70/140 optional

950~1450

B-Built-in dual channel online at the same time

SUC2000X

70/140 optional

2200~2300

C-Built-in dual-channel redundant backup

CUC2000X

70/140 optional

5850~6450

D-Non-standard frequency range output

XUC2000X

720

8000~9000

E-Frequency step decimal

KuUC2000X

70/140 optional

14000~145000

F-The signal output interface is provided with a 10MHz reference signal and a current supply output

KaUC2008X

7200

25000~27500

G-Compatible CPCI architecture

QUC2008X

1200

42000~45000

H-The working temperature of -35℃ ~+55℃



Down-link Converter Series

Type

Model

Input Frequency
(MHz)

Output Frequency
(MHz)

X:Option Description

Down-link Converter Series

LDC20000X

950~1450

70/140 optional

B-Built-in dual channel online at the same time

SDC2000X

2200~2300

70/140 optional

C-Built-in dual-channel redundant backup

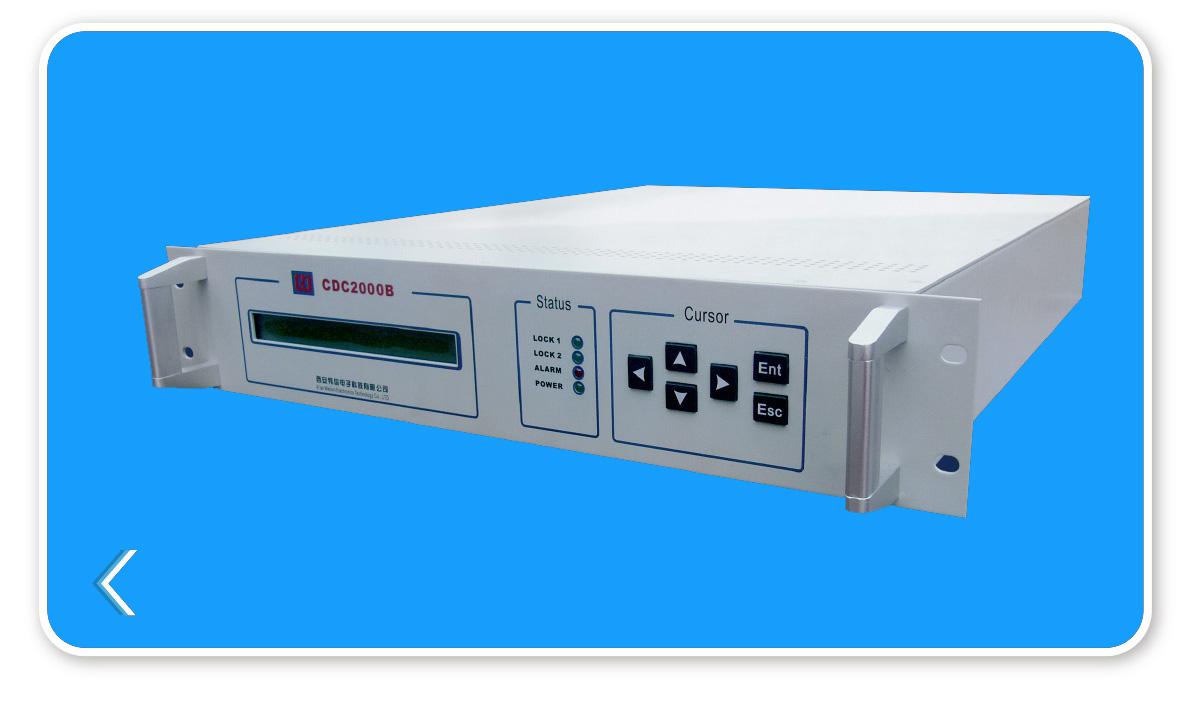

CDC2000X

5850~6450

70/140 optional

D-Non-standard frequency range output

XDC2000X

8000~9000

720

E-Frequency step decimal

KuDC2000X

12250~12750

70/140 optional

F-The signal output interface is provided with a 10MHz reference signal and a current supply output

KaDC2008X

22000~24000

7200

G-Compatible CPCI architecture


Electrical Specification

Conversion gain

35dB±2.5dB(up-link converter)/45dB±Down-link converter

Gain adjustment

0~30dB,1dB/0.5dB per day

Gain stability

±0.5dB/per day

Gain fluctuation

±0.5dB/(±18MHz)

Step frequency

1MHz/100KHz/10KHz optional

Frequency Spectrum

Positive phase/Inverted phase optional

Phase noise

 -70dBc/Hz@100Hz

 -85dBc/Hz@1KHz

 -90dBc/Hz@10KHz

 -95dBc/Hz@100KHz

Maximum output power

 +dBm@P1dB(+12dBm@P1dB optional)

Intermodulation distortion

 ≤-45dBc(Pout=  )

Non-carrier spurs

 -75dBm

Carrier spurious

 -60dBc@0dB output

Image rejection

 ≥65dBc

Group delay characteristic

Linear group delay 0.03ns/MHz

Parabolic group delay 0.01ns/MHz2

Group delay fluctuation

Temperature Specification

Working temperature

 -20℃~+40℃

Storage temperature

 -55℃~+65℃

Temperature range

  0~95%
