1.8m Ku Band Vehicle Mounted SNG Antenna


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

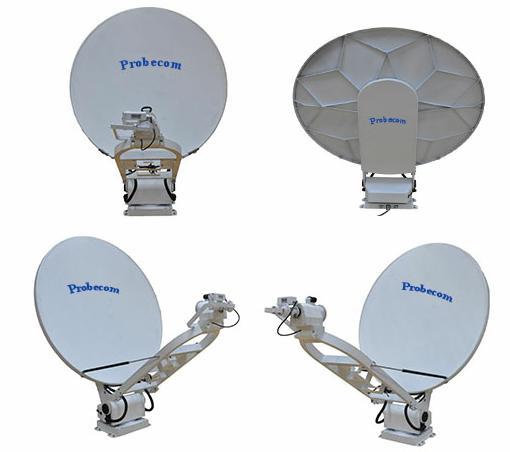

1.8m Ku Band Vehicle Mounted SNG Antenna


Key Feature:


*  Offset feed antenna for C/Ku-band

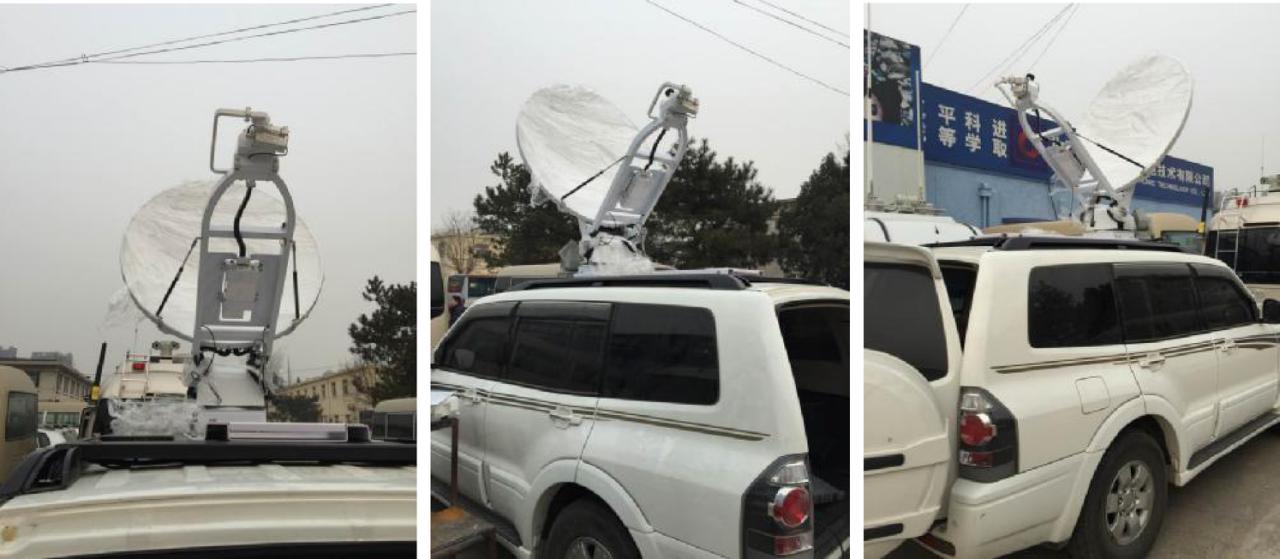

*  Special designed for mounting on SUV, Minivan or MPV

*  Suit for broadband communication and various emergency situations.

*  Meet needs of mainstream satellite operating company.

*  Acquire any Ku and C band satellite within 2 minutes.

*  Matches various types of BUC

*  4 tracking methods: Beacon, DVB carrier, reference star and modem signal

*  Instant broadband data communications

*  WIFI control method is optional.


 Model

 P4000V18

 Electrical Performance

 Frequency

 Ku band

 Tx

 13.75~14.5GHz

 Rx

 10.70~12.75GHz

 Polarization

 Linear, Orthogonal

 Feed Interface

 WR75

 3dB Beamwidth

 TX: 0.8°@14.0GHz

 RX: 1.0°@12.0GHz

 Gain

 RX: 45.3dBi

 TX: 46.8dBi

 Noise Temperature

 10°EL=43K, 20°EL=28K, 30°EL=23K,



 Sidelobe Envelope

 1.5°<θ<20°     29-25logθ dBi

 20°<θ<26.3 °   -3.5dBi

 26.3°<θ<48 °  32-25logθ dBi

 48°<θ<180 °   -10 dBi

 Cross Polarization

 30dB (On Axis)

 26dB (in 1dB Contour)

 Isolation (Port to Port)

 RX: >35dB

 TX: >80dB

 VSWR

 RX:1.5:1

 TX:1.3:1

 Mechanical Performance

 Reflector

 1.8m, SMC

 Antenna Type

 Prime focus, offset feed antenna

 Positioning Sensor

 BD&GPS

 Azimuth Sensor

 Compass ±2°

 Tilt Sensor

 Tilt meter ±0.2°

 Azimuth Range

 ±240°

 Elevation Range

 0°~95°

 Polarization

 ±95°

 Elevation Travel Rate

 0.1°~9°/ sec

 Azimuth Travel Rate

 0.1°~9°/ sec

 Polarization Travel Rate

 0.1°~12°/ sec

 Physical Performance

 Stowed Dimension (mm)

 2600L×1880W×600H

 Weight

 ≤160kg

 Antenna controller Unit

 Power

 90-260VAC,40-60Hz

 Signal Tracking

 DVB  S1/S2 and Beacon receiver

 (hot standby), Modem SNR

 Operating Mode

 Auto/Manual, key touch position

 Dimension/Weight

 1U, 2.5kg

 Language

 English

 Setup Time

 ≤2min

 Pointing Accuracy

 0.1°

 Power Consumption (w/o BUC)

 ≤300W

 Remote Network Control

 Support WiFi control

 Environmental Performance

 Wind Loading

 Operational: 72km/h

 Survival (Deploying): 110km/h

 Survival (Stowing): 220km/h

 Temperature

 Operating temperature: -40℃ ~ 55℃

 Storage temperature: -55℃ ~ 85℃

 Protection Grade

 IP65

 Humidity

 0~100%

 Altitude

 ≤5000m

 MTBF

 ≥2000hr

 MTTR

 ≤1.5hr
