2.4m Ka Band LEO Antenna
Online consulting:
- DESCRIPTION
- TECHNICAL
- SPECIFICATIONS
Probecom offer Ka band TT&C antenna (Telemetry, Tracking and Command antenna) and TT&C system (Telemetry, Tracking and Command system).
|
Electrical Specification |
|||
|
Type |
KA24T |
||
|
Operating Frequency, GHz |
Ka-Band |
||
|
Receive |
Transmit |
||
|
17.7~20.2 |
27~30 |
||
|
Gain, dBi |
50.0@17.7GHz |
53.8@27.5GHz |
|
|
Polarization |
Circular |
||
|
Axial Ratio, dB |
|
0.5 |
|
|
VSWR |
1.30 |
1.30 |
|
|
-3 dB Beam Width, Mid-band |
0.5°@17.7GHz |
0.32°@27.5GHz |
|
|
Typical G/T（EL=30°，4-port） |
24.9dB/K(120K LNA) |
|
|
|
Feed Interface |
WR-42 |
WR-28 |
|
|
Isolation, Tx to Rx, dB Tx/Tx ,Rx /Rx , dB |
85 20 |
||
|
Side lobe |
CCIR 580-4 |
||
|
Mechanical Specification |
|||
|
Antenna Diameter |
2.4m |
||
|

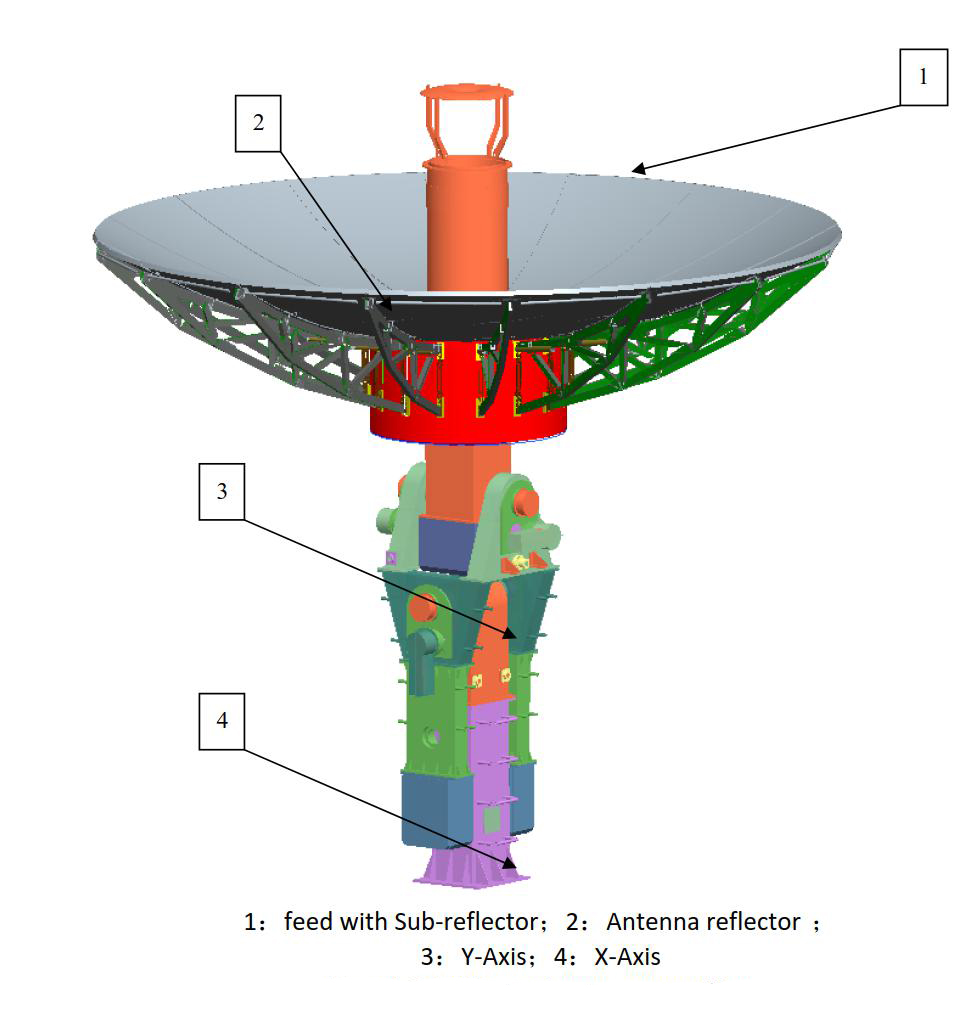

Antenna Type |
Ring focus antenna |
||
|
Mount type |
X-Y mount antenna |
||
|
tracking mode |
program tracking |
||
|
The biggest movement range |
±90° |
||
|
Maximum Rotating Speed |
5°/s |
||
|
tracking accuracy |
0.1° |
||
|
Environmental Specification |
|||
|
Operational Wind |
61km/h |
||
|
store up Wind |
115km/h |
||
|
Temperature |
-30°~+55° |
||
|
Relative Humidity |
100% |
||
|
|
|||
