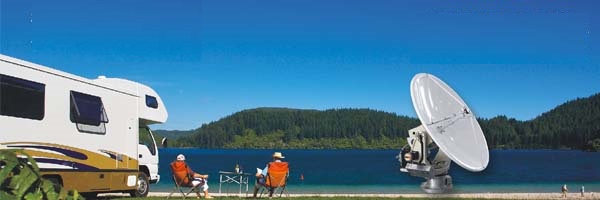

P9001 Parabolic On The Move Antenna
![](/upload/2017-05/05/P9001.jpg)
![](/upload/2017-05/05/P90011.jpg)
- DESCRIPTION
- TECHNICAL
- SPECIFICATIONS
Probecom Land Mobile Communication Parabolic Antenna uses ring focus back feed antenna, it has high gain, the mobility is strong and tracking effect is superior. It is suitable for different kinds of communication.
Features:
*Ring focus back feed antenna, low weight and high accuracy.
*Carbon fiber honeycomb interlayer structure.
*High accuracy GPS/INS integrated attitude azimuth measurement technology.
*Innovation of the 4-axis tracking structure.
*Narrowband satellite beacon identification technology.
*Radome uses Nomex honeycomb composite material.
Parabolic On The Move Antenna
|
|
Model No. |
P9001 |
Stabilization Type |
2-axis |
Dimension (diameter×hight) |
113×105cm |
Antenna Weight |
50kg |
Operation Frequency |
Rx:12.25-12.75GHz Tx:14.0-14.5GHz |
Antenna Type |
Ring focus back feed |
Antenna Gain |
Rx:38.8dBi(12.5GHz) Tx:40dBi(14.25GHz) |
Cross-polarization Isolation |
>30dB |
Side-lobe Envelope Characteristic |
ITU-R S.456-6(40WBUC 2M bandwidth) |
Signal Polarization |
Linear |
Angular Velocity |
Azimuth: 150°/s Elevation: 120°/s Polarization: 100°/s |
Angular Acceleration |
Azimuth: 800°/s2 Elevation: 800°/s2 Polarization: 600°/s2 |
Dynamic Accuracy
|
0.2°RMSE |
Travel Range |
Azimuth: 360°continuous rotation Elevation: 0o-90o Polarization: 360°continuous |
Initial Acquisition |
<120s(pause) <180s(in motion) |
Re-acquisition |
<1 second for <30 seconds blockage <5 seconds for <20 minutes blockage |
INS |
Built-in |
Power Input |
AC220V, 50Hz |
Temperature |
-40℃~65℃ |
