P series On The Move Antenna System:

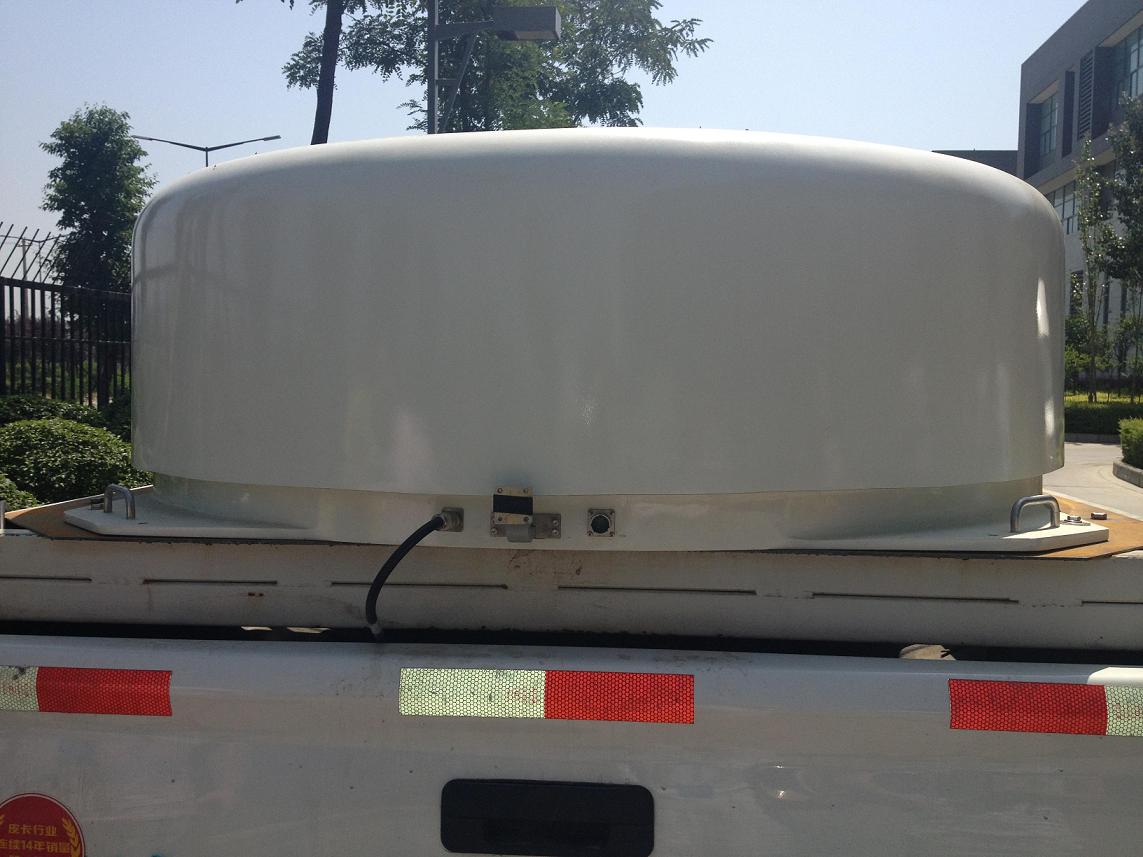

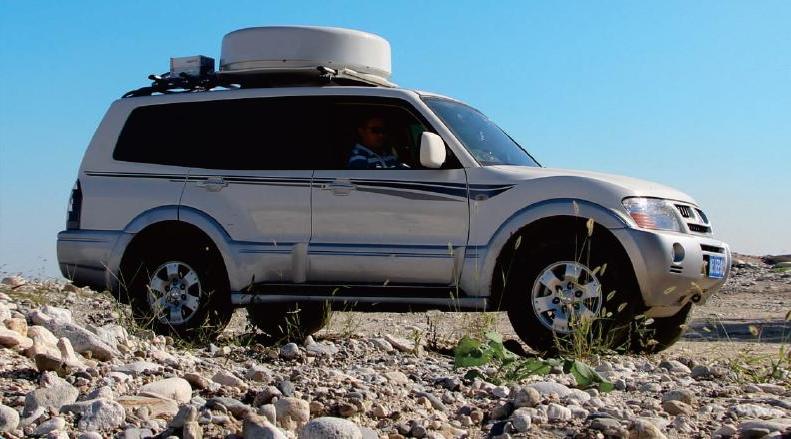

The P series On The Move Antenna is built to track a single satellite while mounted on a stationary
or moving vehicle at anywhere/anytime on the road.

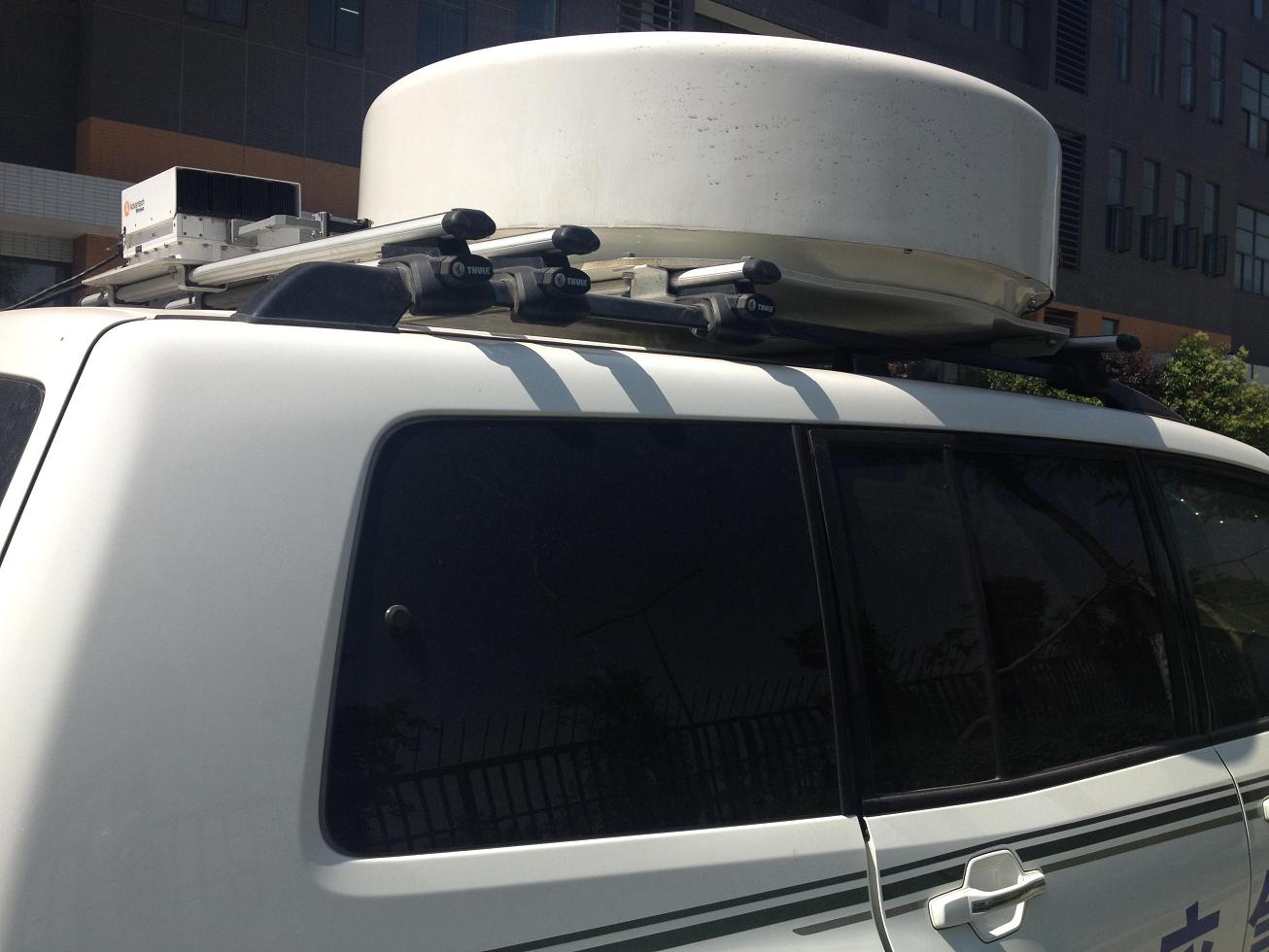

The P series On The Move Antenna is highly efficient, low-profile, rugged vehicle roof-mounted SATCOM Ku-Band antenna capable of on-the-move broadband communication. The unit provides continuous broadband connectivity (voice, video and data) at highway speeds without antenna deployment delays. The antenna automatically acquires and tracks the desired Ku-band satellite using open-loop and closed-loop tracking and software algorithms. The P series On The Move interfaces to a modem that is installed internal to the vehicle.
P series On The Move Antenna Applications:
* Off-road vehicle tracking
* High-speed internet access
* VoIP communications
* Teleconferencing
* Wide area private network extension
* Video broadcasting
|
Model No. |
P9000 |
|
Stable Type and Track Type |
Two-axis balancing stability (azimuth and elevation) Four-axis tracking (azimuth, elevation, receive polarization and transmit polarization) |
|
Radome Size (Diameter×Height) |
142×45cm |
|
Net Weight |
100kg |
|
Antenna Type |

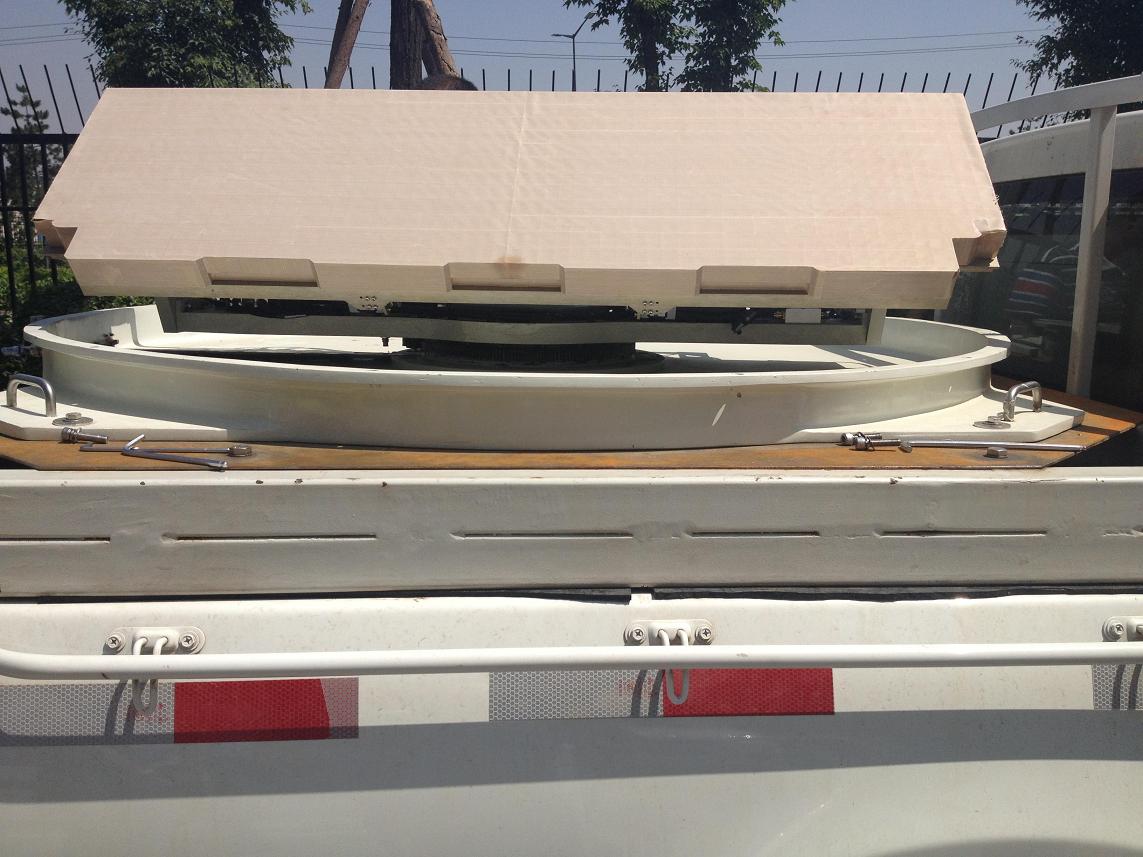

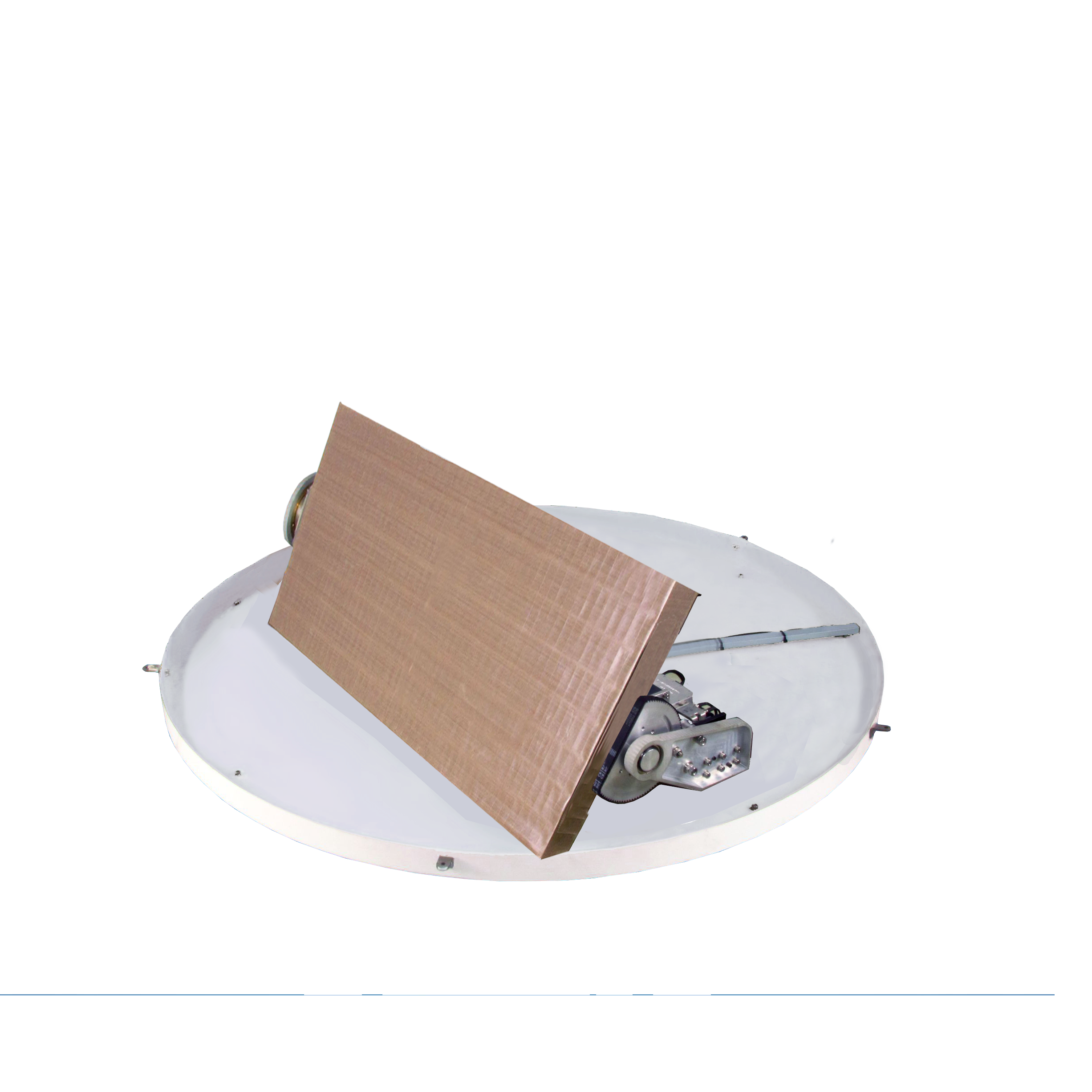

Panel waveguide horn array antenna |
|
Interoperability |
Equiv. to 90cm Parabolic |
|
Frequency range |
Rx:12.25～12.75GHz ; Tx:14.0～14.5GHz |
|
Gain (Polarization Converter) |
Rx:38.5dBi (12.5GHz)； Tx:39.7dBi(14.25GHz) |
|
G/T |
16.5dB/°K |
|
EIRP |
55.5dBW（40W BUC） |
|
Cross Polarization Isolation |
＞30dB(Pause and in Motion) |
|
Off Axis emission |
≥30dB |
|
Sidelobe Envelope Characteristic |
Meet ITU-RS.465-6 standard |
|
Polarization |
Linear |
|
Tracking Velocity |
Azimuth: 150°/s Elevation: 120°/s Polarization: 100°/s |
|
Tracking Acceleration |
Azimuth: 800°/s2 Elevation: 800°/s2 Polarization: 600°/s2 |
|
Dynamic Accuracy |
0.2°RMSE |
|
Azimuth: 360°continuous Elevation: 0°～90° Polarization: 360°continuous |
|
|
Initial Acquisition |
<120s(pause), <180s(in motion) |
|
Re-acquisition |
<1 second for <30 seconds blockage <5 seconds for <20 minutes blockage |
|
Inertial Navigation System |
Built-in |
|
Power |
AC220V, 50Hz |
|
Operational Temperature |
-40℃～65℃ |
