P8000 On The Move Antenna


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

P series On The Move Antenna System:

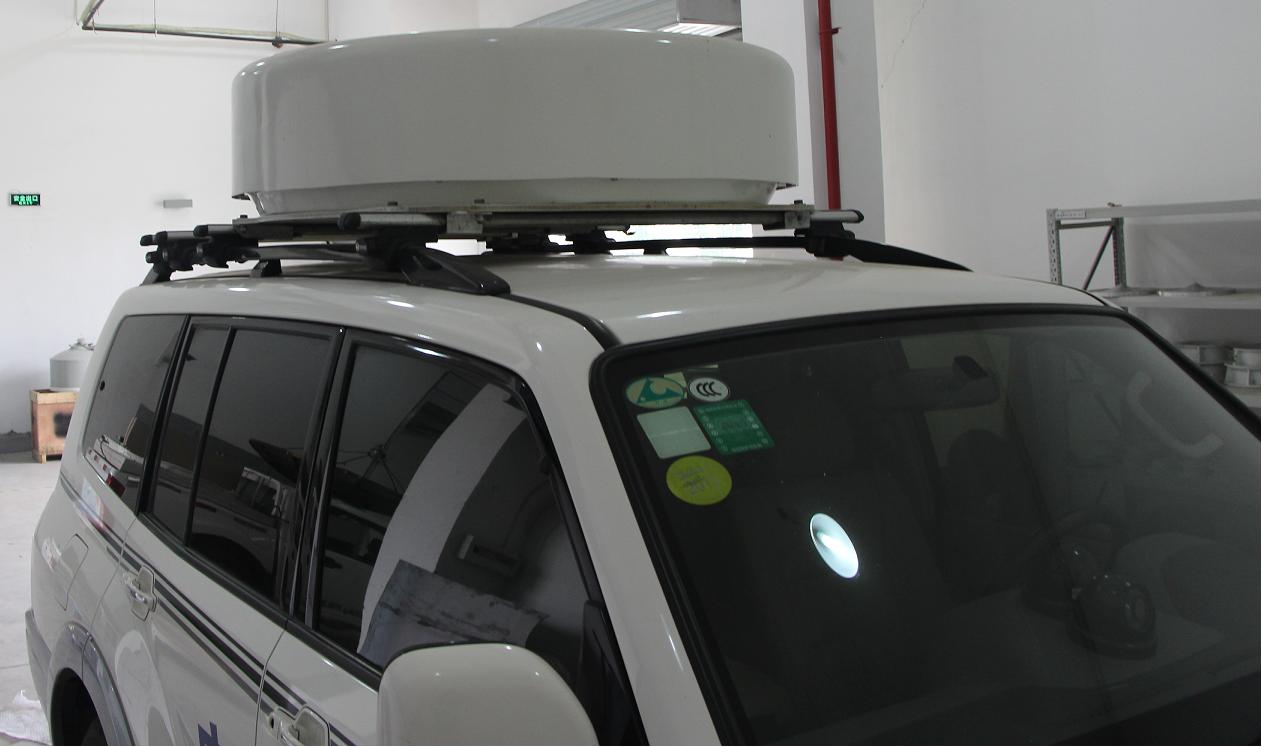

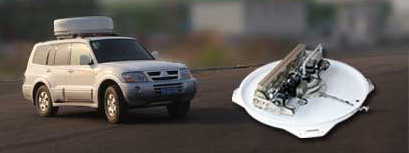

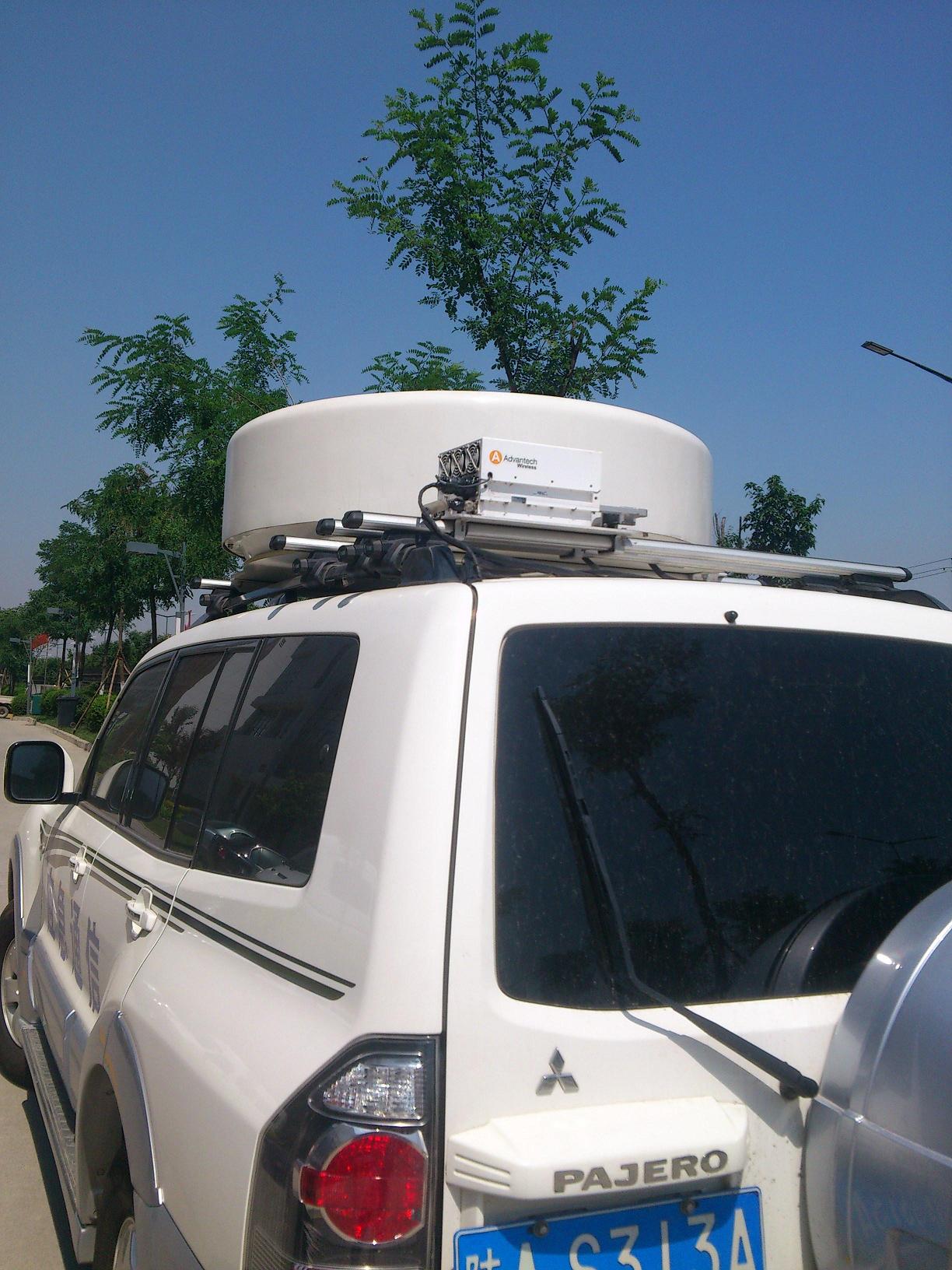

The P series On The Move Antenna is built to track a single satellite while mounted on a stationary or moving vehicle at anywhere/anytime on the road.

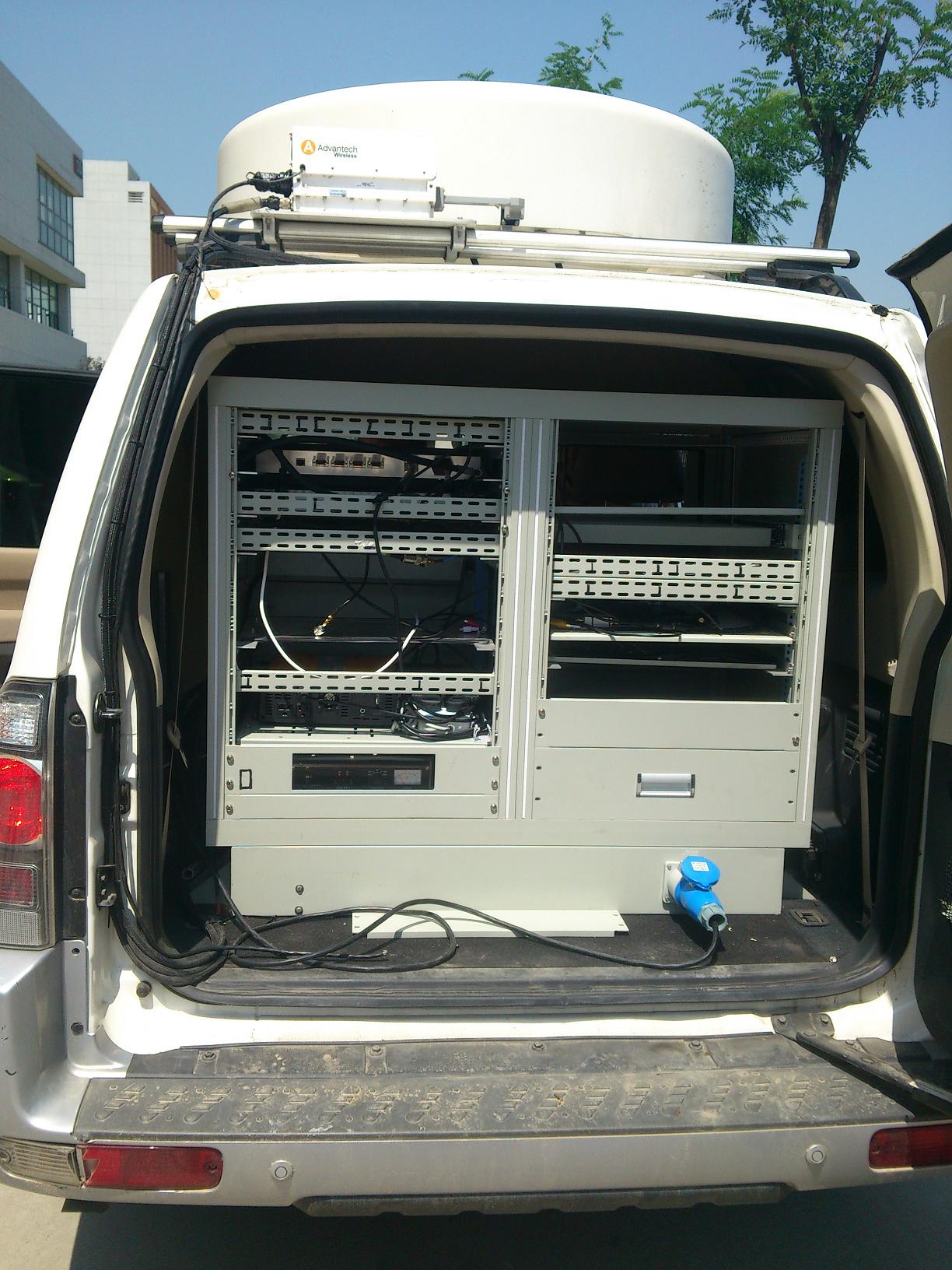

The P series On The Move Antenna is highly efficient, low-profile, rugged vehicle roof-mounted SATCOM Ku-Band antenna capable of on-the-move broadband communication. The unit provides continuous broadband connectivity (voice, video and data) at highway speeds without antenna deployment delays.  The antenna automatically acquires and tracks the desired Ku-band satellite using open-loop and closed-loop tracking and software algorithms.  The P series On The Move interfaces to a modem that is installed internal to the vehicle.

P series On The Move Antenna Applications:



* Off-road vehicle tracking

* High-speed internet access

* VoIP communications

* Teleconferencing

* Wide area private network extension

* Video broadcasting



Model No.

P8000

Stable Type

and Track Type

Two-axis balancing stability (azimuth and elevation)

Four-axis tracking

 (azimuth, elevation, receive polarization and transmit polarization)

Radome Size (diameter×hight)

130×40cm

Net Weight

85kg

Antenna Type

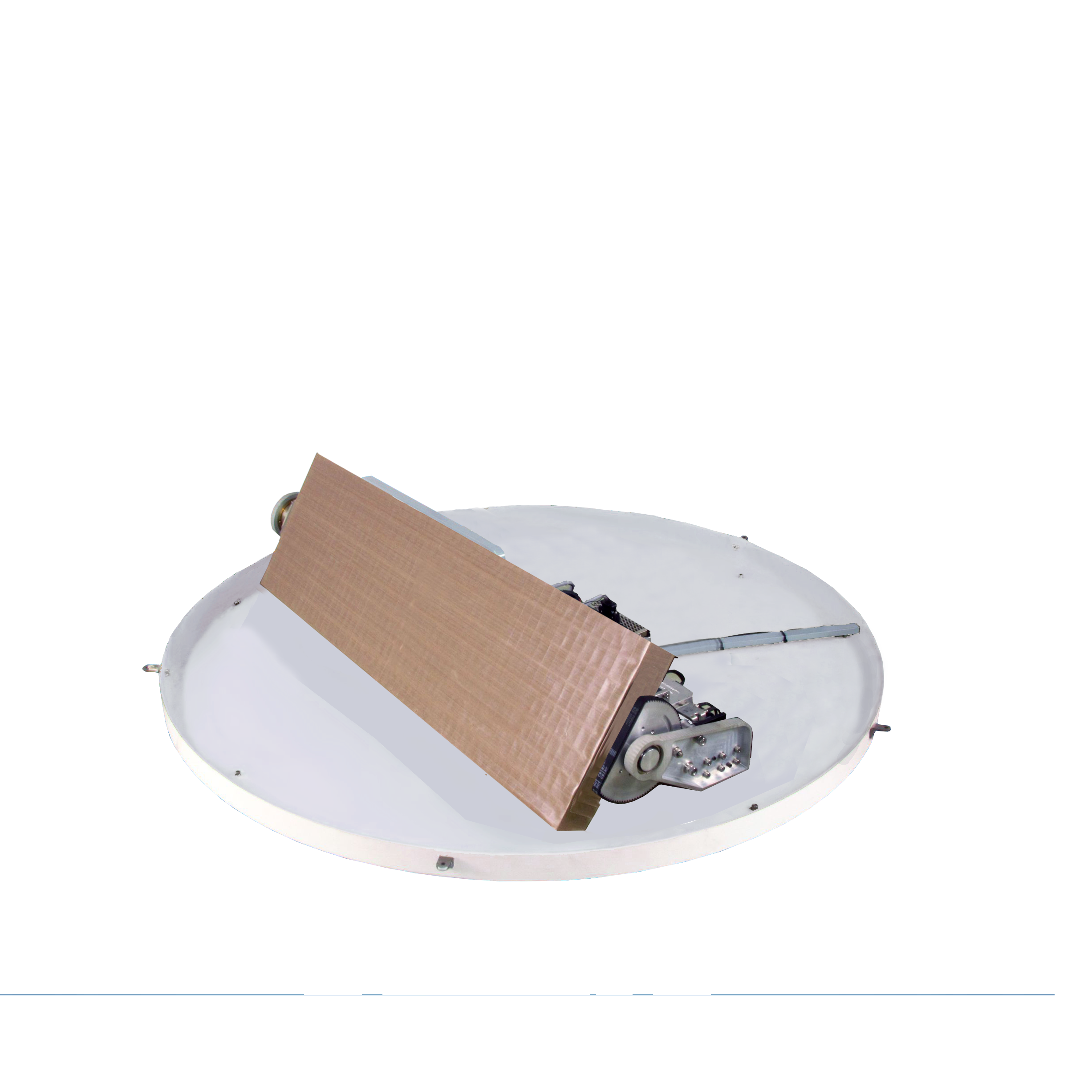

Panel waveguide horn array antenna

Interoperability

Equiv. to 80cm Parabolic

Operation Band

Rx:12.2512.75GHz ; Tx:14.014.5GHz

Gain

(Polarization Converter)

Rx:37.5dBi (12.5GHz)

Tx:38.7dBi (14.25GHz)

Cross Polarization Isolation

30dB(Pause and in Motion)

Sidelobe Envelope Characteristic

Meet ITU-RS.465-6 standard

Polarization

Linear Polarization

Tracking Velocity

Azimuth: 150°/s

Elevation: 120°/s

Polarization: 100°/s

Tracking Acceleration

Azimuth: 800°/s2

Elevation: 800°/s2

Polarization: 600°/s2

Dynamic Accuracy

0.2° RMSE

Travel Range

Azimuth: 360°continuous

Elevation: 0°90°

Polarization: 360°continuous

Initial Acquisition

<120s(pause)

 <180s(in motion)

Re-acquisition

   <1 second for <30 seconds blockage

<5 seconds for <20 minutes blockage

Inertial Navigation System

Built-in

Power

AC220V, 50Hz

Operational Temperature

-4065
