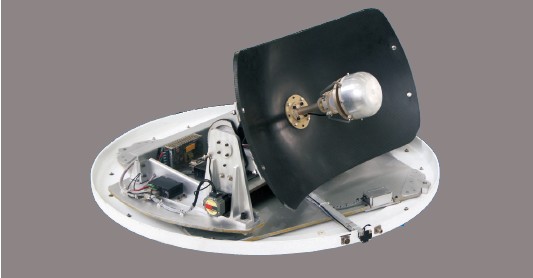

P7201 Parabolic On The Move Antenna


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

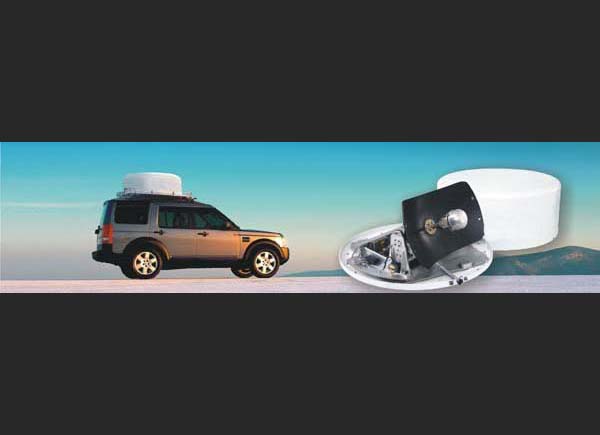

Probecom Land Mobile Communication Parabolic Antenna uses ring focus back feed antenna, it has high gain, the mobility is strong and tracking effect is superior. It is suitable for different kinds of communication.

Features:



*Ring focus back feed antenna, low weight and high accuracy.



*Carbon fiber honeycomb interlayer structure.



*High accuracy GPS/INS integrated attitude azimuth measurement technology.



*Innovation of the 4-axis tracking structure.



*Narrowband satellite beacon identification technology.



*Radome uses Nomex honeycomb composite material.

Parabolic On The Move Antenna



Model No.

P7201

Stabilization Type

2-axis

Dimension

(diameter×hight)

115×57cm

Antenna Weight

70kg

Operation Frequency

Rx:12.25-12.75GHz  Tx:14.0-14.5GHz

Antenna Type

Ring focus back feed

Antenna Gain

Rx:37.2dBi(12.5GHz)

Tx:38.2dBi(14.2GHz)

Cross-polarization

Isolation

>30dB

Side-lobe Envelope Characteristic

ITU-R S.456-6(40WBUC 2M bandwidth)

Signal Polarization

Linear

Angular Velocity

Azimuth: 150°/s

Elevation: 120°/s

Polarization: 100°/s

Angular Acceleration

Azimuth: 800°/s2

Elevation: 800°/s2

Polarization: 600°/s2



Dynamic Accuracy



0.2°RMSE

Travel Range

Azimuth: 360°continuous rotation

Elevation: 0o-90o

Polarization: 360°continuous

Initial Acquisition

<120s(pause)

 <180s(in motion)

Re-acquisition

 <1 second for <30 seconds blockage

<5 seconds for <20 minutes blockage

INS

Built-in

Power Input

AC220V, 50Hz

 Temperature

-4065
