P series On The Move Antenna System:

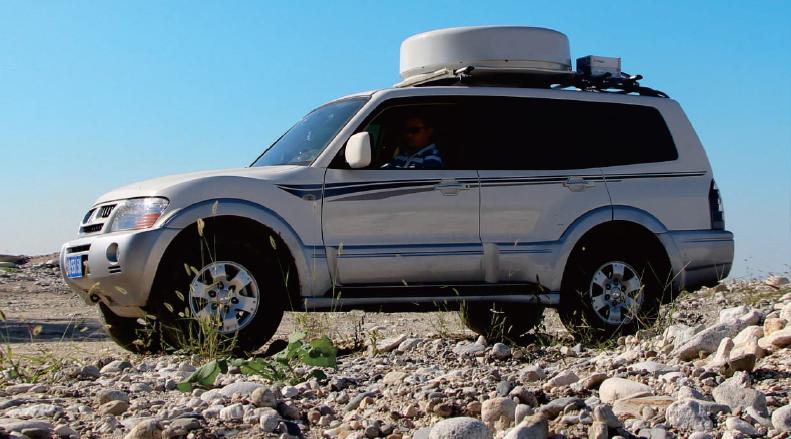

The P series On The Move Antenna is built to track a single satellite while mounted on a stationary or moving vehicle at anywhere/anytime on the road.
The P series On The Move Antenna is highly efficient, low-profile, rugged vehicle roof-mounted SATCOM Ku-Band antenna capable of on-the-move broadband communication. The unit provides continuous broadband connectivity (voice, video and data) at highway speeds without antenna deployment delays. The antenna automatically acquires and tracks the desired Ku-band satellite using open-loop and closed-loop tracking and software algorithms. The P series On The Move interfaces to a modem that is installed internal to the vehicle.
P series On The Move Antenna Applications:
* Off-road vehicle tracking
* High-speed internet access
* VoIP communications
* Teleconferencing
* Wide area private network extension
* Video broadcasting
P6500 is a brand new product designed to meet this requirement, it adopts series of new technology, like: stable tracking system, conical scanning peak value tracking, narrow band satellite beacon identification technology, high performance antenna flat wave guide array type antenna reflector, high accurate GPS/INS integration attitude azimuth measurement technology, flexible antenna remote control technology, 100Hz attitude and navigation data real time output, high wave permeability antenna radome, rather low profile design, etc.

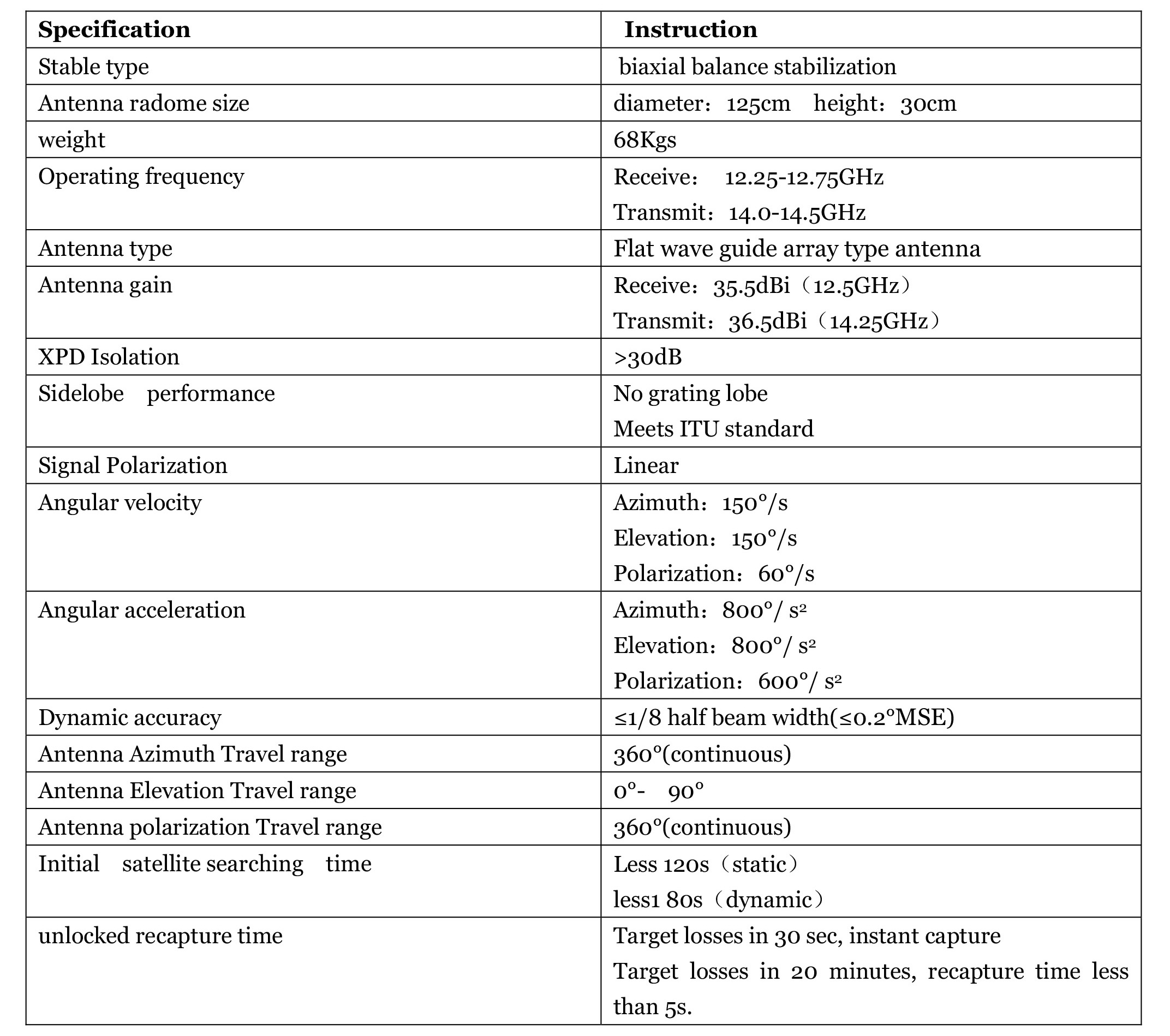

![P6500 specification on the move_datasheet P6500 specification on the move_datasheet](/upload/2017-05/05/P6500specificationonthemove_datasheet.jpg)
