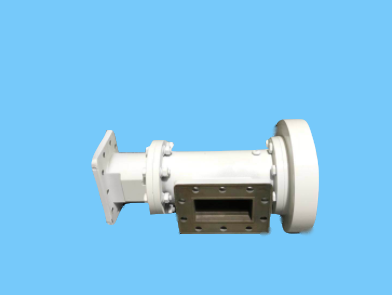

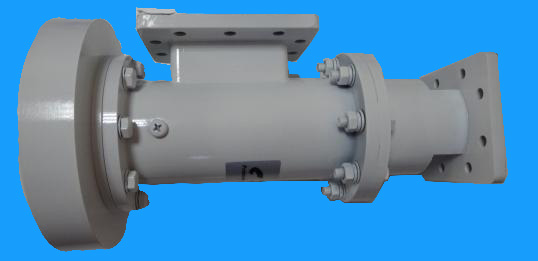

Standard C Band Diplexer (RX Only Linear POL)


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

Probecom Technologies designs, fabricates, and electrically tests waveguide filters and diplexers from 1-40 GHz for the commercial, military.

A full array of standard filters and diplexers is available for the various commercial and military frequency bands. Many are "off the shelf products". Custom designed filters and diplexers for specific customer applications are available.

TWO-PORT

Operating Frequency, GHz

RX1

RX2

3.625-4.2

3.625-4.2

Polarization

Linear

Linear

VSWR

1.25:1

1.25:1

Cross POL, dB

30

30

Insertion Loss, dB

≤0.2dB

≤0.2dB

Interface

CPR229F

CPR229F

Isolation, Rx/Rx, dB

30dB

Standard and Option



Feed Horn

No or Customized

Material

Aluminum Casting or Customized

Exterior

White paint or Customized
