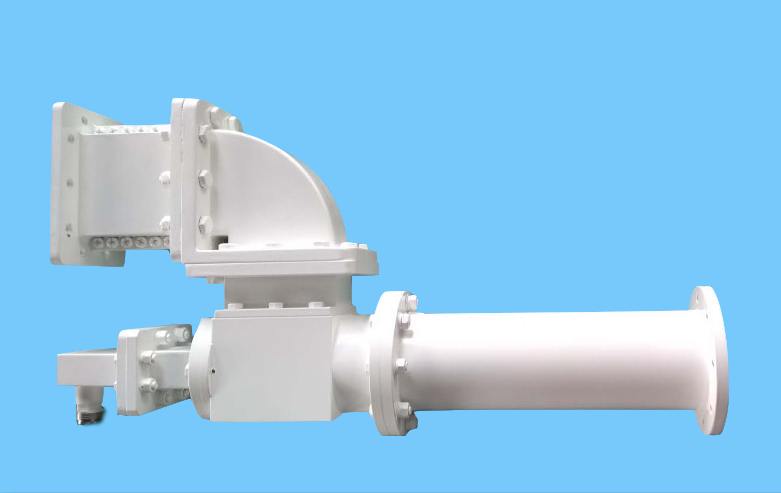

Insat C Band 2 Ports Diplexer (Circular POL)


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

Probecom Technologies designs, fabricates, and electrically tests waveguide filters and diplexers from 1-40 GHz for the commercial, military .
A full array of standard filters and diplexers is available for the various commercial and military frequency bands. Many are "off the shelf products". Custom designed filters and diplexers for specific customer applications are available.

TWO-PORT

Operating Frequency, GHz

TX

RX

6.725-7.025

4.5-4.8

Polarization

Circular

Circular

VSWR

1.25:1

1.25:1

Axial Ratio

1.09:1

1.30:1

Insertion Loss, dB

≤0.2dB

≤0.25dB

Interface

CPR137F or N Type

CPR229F

Power Handing, KW

1



Isolation, Tx to Rx, dB

≥85dB

Standard and Option



Pressurization

No or Customized

Material

Aluminum Casting or Customized

Exterior

White paint or Customized
