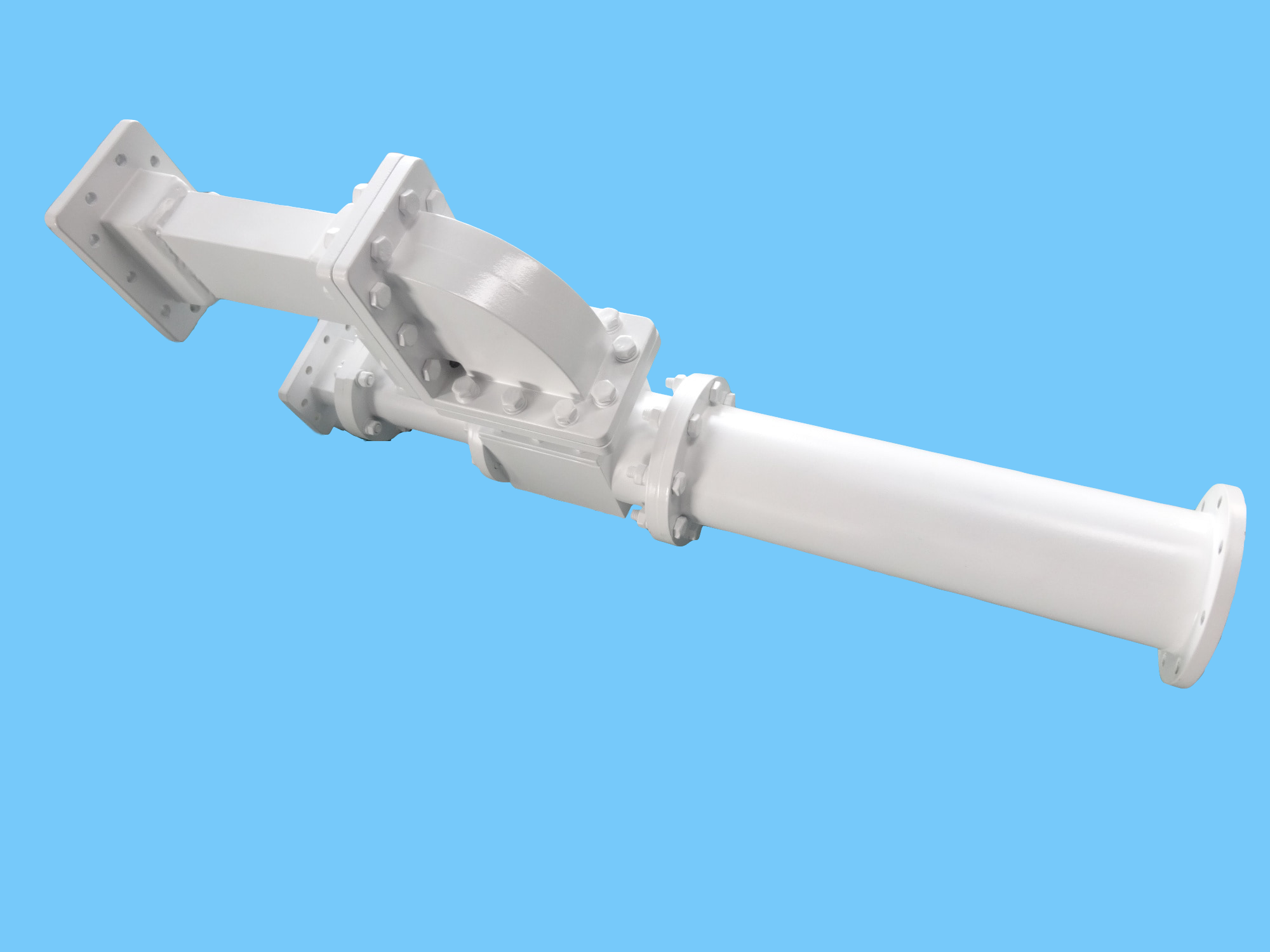

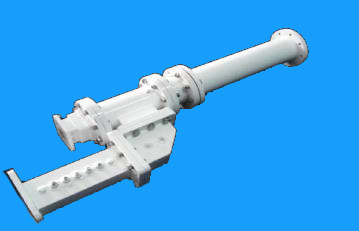

Extended C Band 2 Ports Diplexer (Circular POL)


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

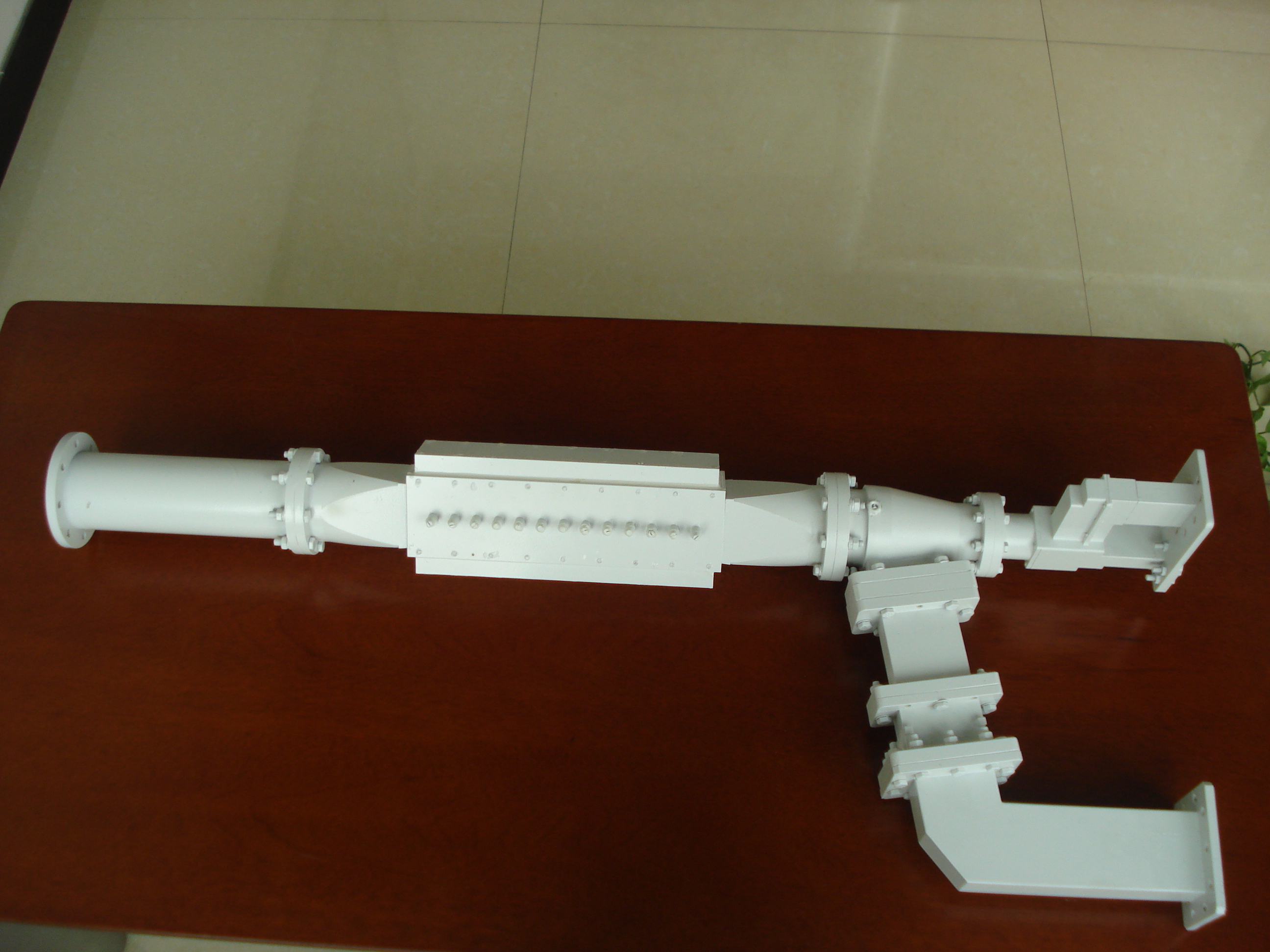

Extended-C-Band-2-Ports-Diplexer-Circular-POL-1r微信图片_20190926154658

Probecom Technologies designs, fabricates, and electrically tests waveguide filters and diplexers from 1-40 GHz for the commercial, military .

TWO-PORT

Operating Frequency, GHz

TX

RX

5.85-6.725

3.4-4.2

Polarization

Circular

Circular

VSWR

1.30:1

1.30:1

Axial Ratio

1.09:1

1.30:1

Insertion Loss, dB

≤0.3dB

≤0.4dB

Interface

CPR137F or N Type

CPR229F

Power Handing, KW

1



Isolation, Tx to Rx, dB

≥80dB

Standard and Option



Pressurization

No or Customized

Material

Aluminum Casting or Customized

Exterior

White paint or Customized
