Probecom cooperates with famous Chinese insitutes and famous universities to developt meteorological radar products. Product list include stratospheric wind profiler radar, S band dual Polarization weather radar, C band dual polarization full coherent weather radar, boudray layer wind profiler radar, low-level wind profiler radar, low level wind shear alert system, troposheric wind profiler radar, mobile millimeter wave weather radar system, clound & Fog detection and prediction system, comprehensive meteorological system.

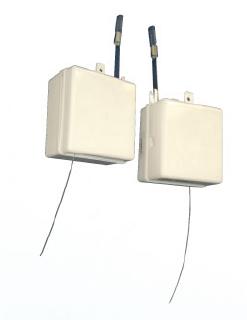

GPS sonde can perform the weather forecast accurately together with a meteorological radar by measuring and acquiring the meteorological parameters of an air area, such as temperature, relative humidity, air pressure and wind speed. It is also used for the atmospheric meteorological research including the atmospheric boundary layer correction
Main technical specifications
|
Temperature measurement range |
+50 ~ -90℃ |
|
Accuracy of temperature |
0.5℃ |
|
Humidity measurement range |
0~100% RH |
|
Accuracy of humidity |
5%RH （above -40℃） 8%RH(below -40℃) |
|
Air pressure measurement range |
1080 ~ 5hpa |
|
Accuracy of air pressure |
2hpa (1080 ~100hpa) 1hpa (100~ 3hpa) |
|
Accuracy of wind speed |
3m/s |
|
Accuracy of wind direction |
3° |
|
Measurement period |
1s |
|
Modulation Mode |
FSK |
