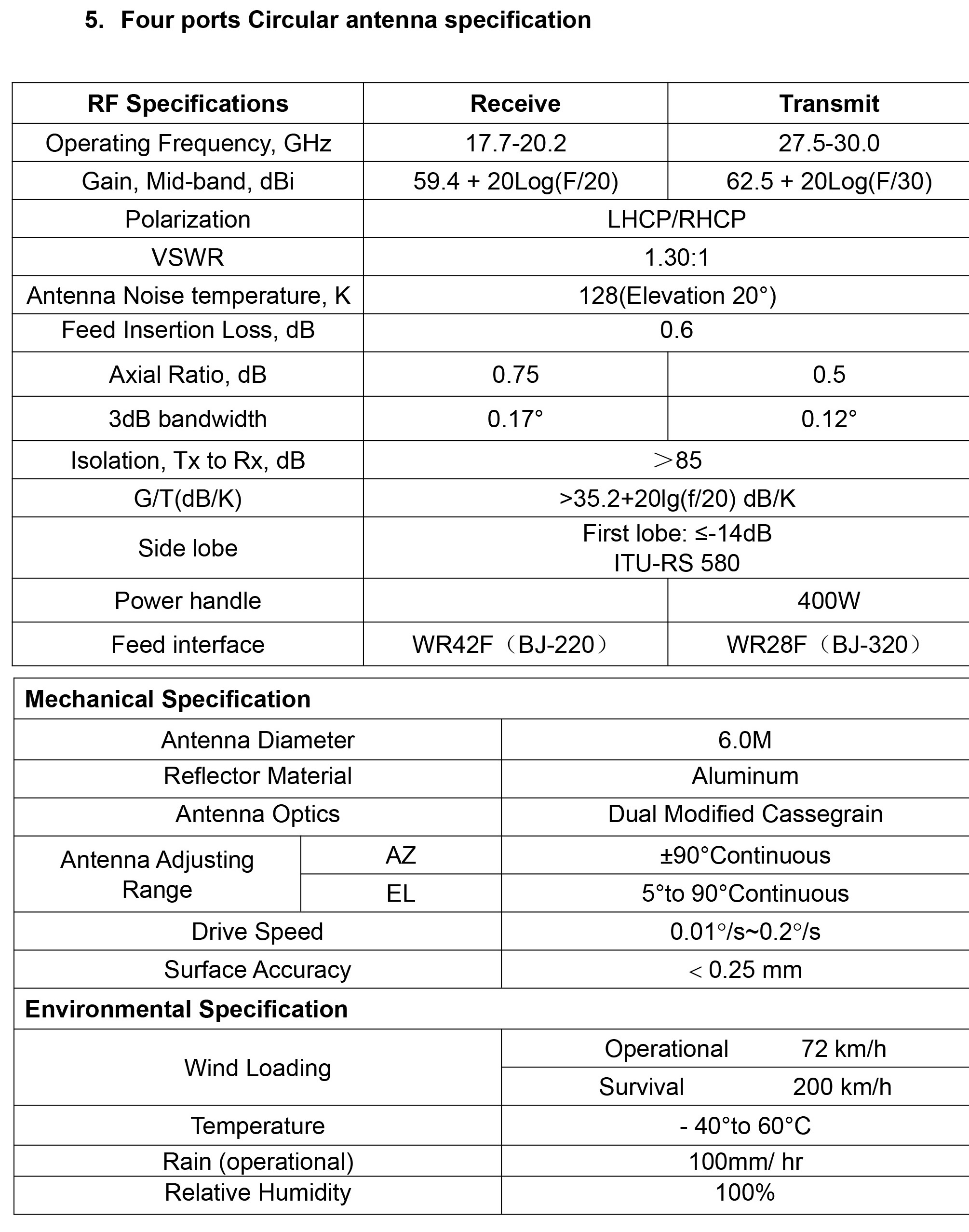

  • SPECIFICATIONS

6.0 and 7.3 Ka

1. General Description

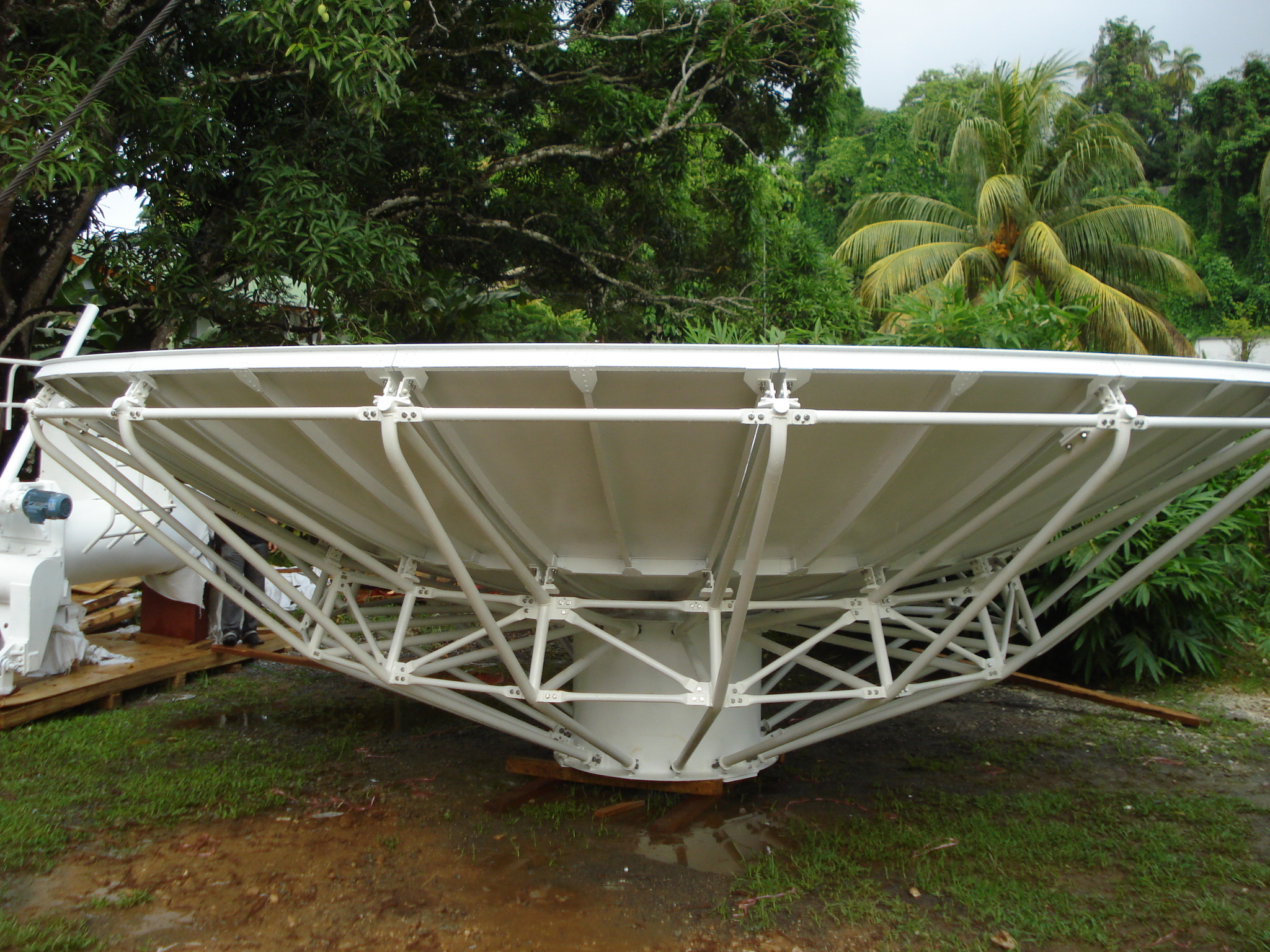

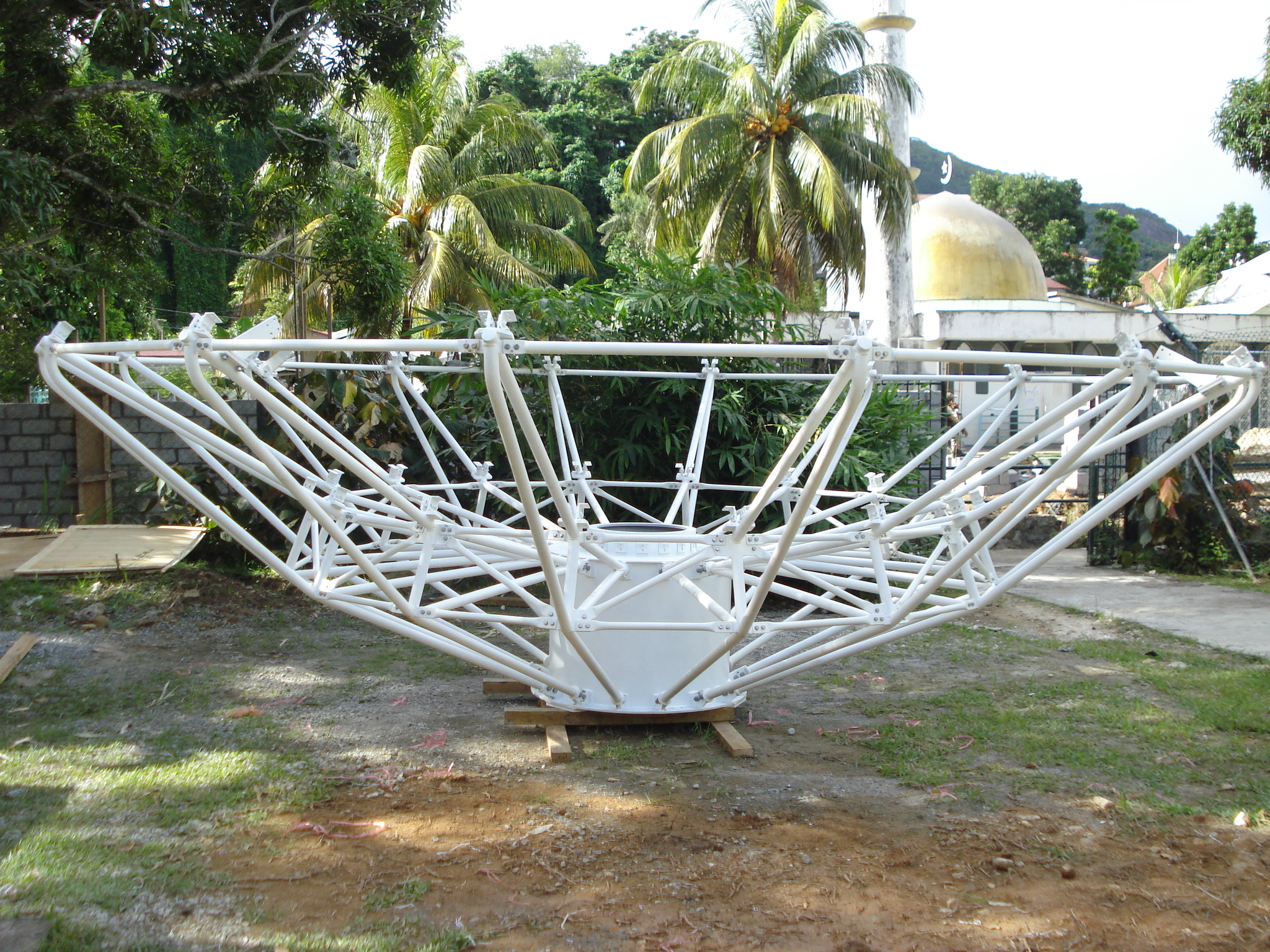

Probecom 6.0M Ka band antenna adopts all aluminum re-enforced reflectors, consisting of precisely formed panels with matched radials and hub assemblies, ensure the ease of installation. The standard designed azimuth over elevation pedestal provides a cost-effective solution for high stiffness and stability, full orbital arc coverage and fine drive performance, and ensures the pointing accuracy for Ka-Band.


It is widely and ideally used for Broadcasters, Service Providers, GSM operator, Satellite operator, Military and Government Agencies, FreeLands or Rescue Organizations.



2. Highlighted Features



*High RF performance



*High gain, low sidelobes, low cross polarization



*Galvanized stainless steel hardware



*Different frequency ranges from many feed configurations



3. Options



*Full motion antenna



*Feed blower or deicing with automatic controls



*Two or four Tx/Rx port in linear or circular polarized feeds



*Installation and maintenance services



4. Antenna Accessory



Motorization Kits



Limit Switches



ODU Support Kits



Factory Feed System Testing and Documentation



Ocean /Air Transport Packing



Foundation Kit



Grounding Kit Cable-Mounting Kit

6.0
