4.5m Ka Band Antenna
- DESCRIPTION
- TECHNICAL
- SPECIFICATIONS

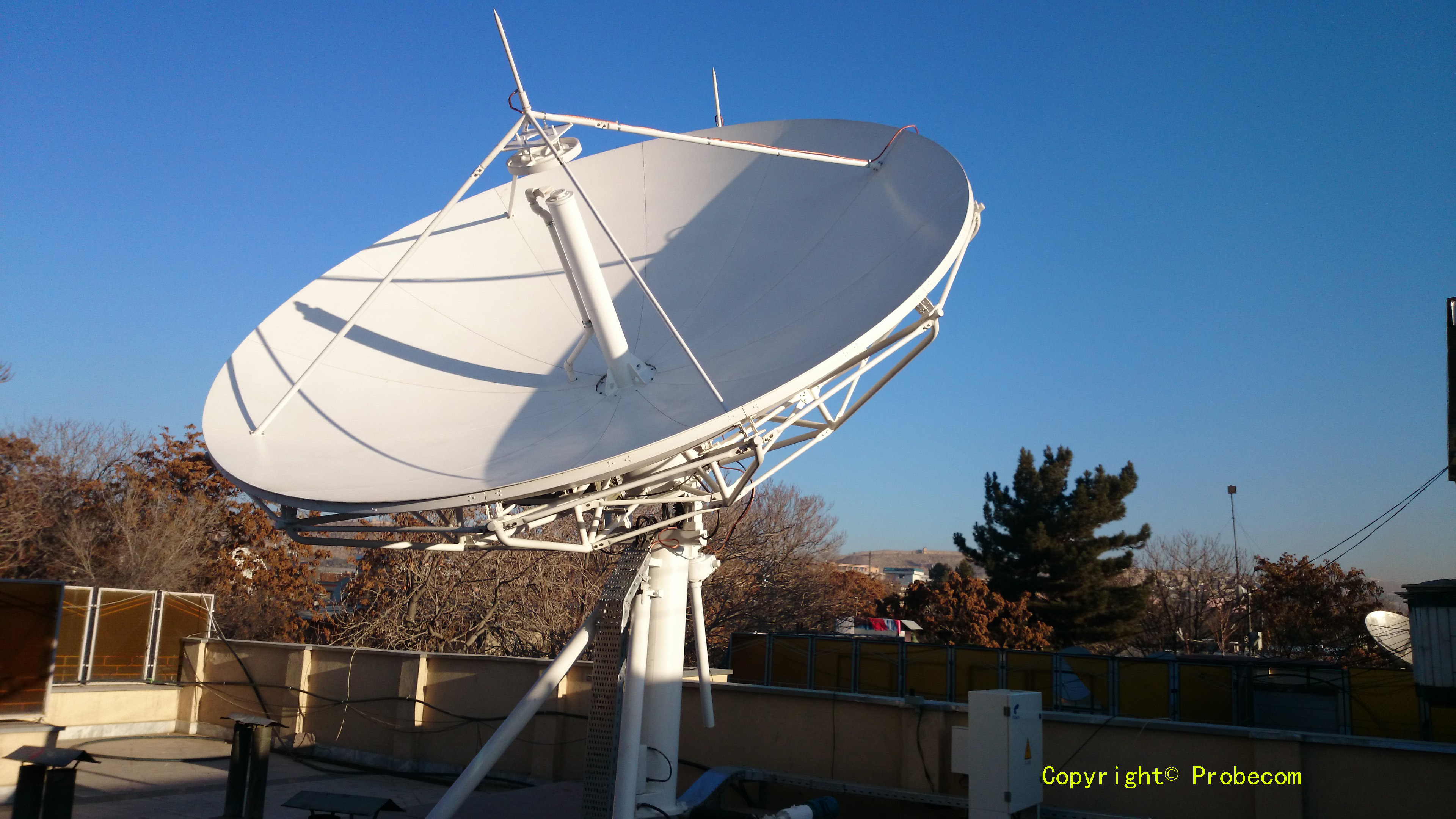

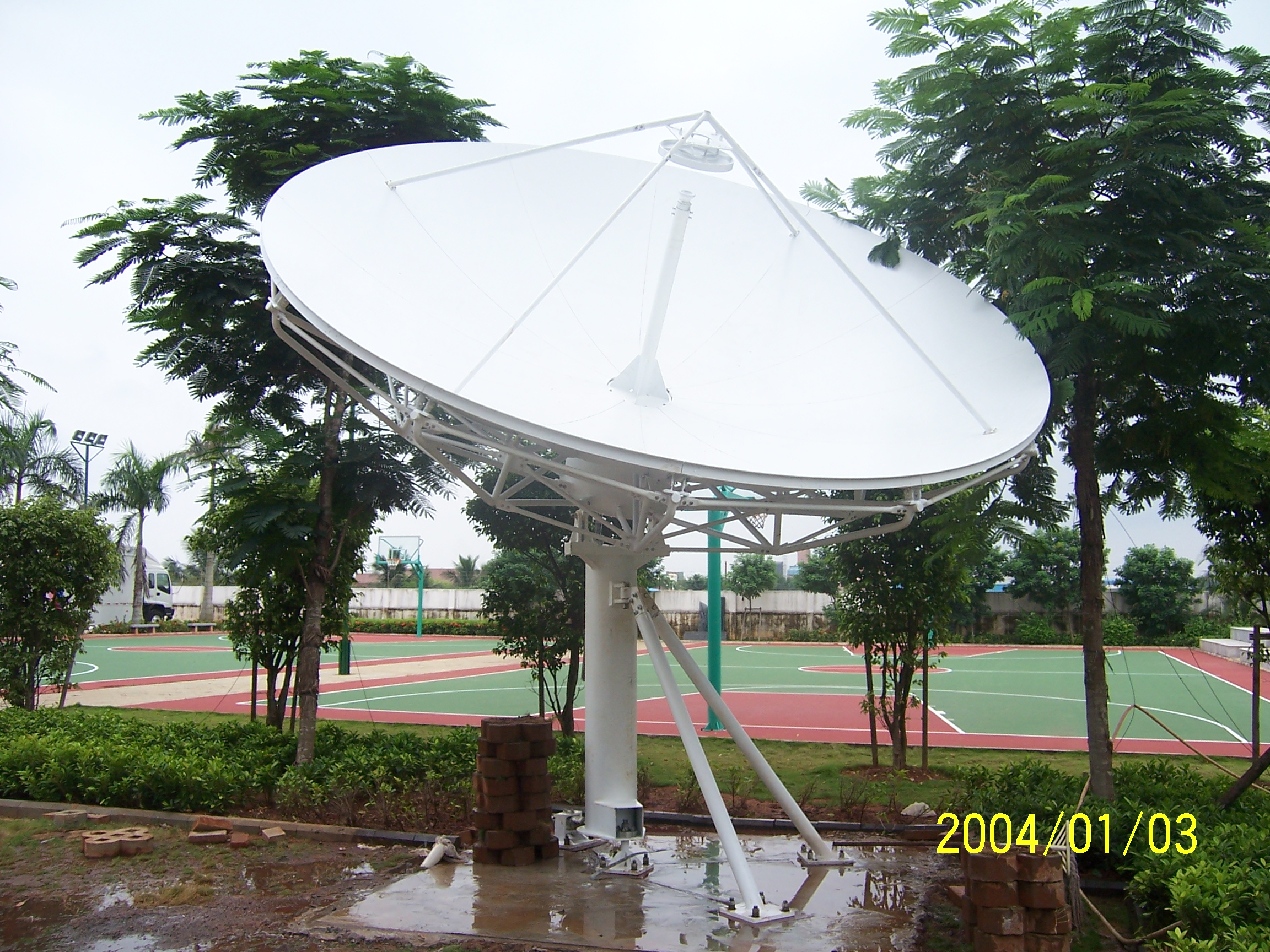

Probecom 4.5M Ka band fixed antenna adopts all aluminum re-enforced reflectors, consisting of precisely formed panels with matched radials and hub assemblies, ensure the ease of installation. The standard designed azimuth over elevation pedestal provides a cost-effective solution for high stiffness and stability, full orbital arc coverage and fine drive performance, and ensures the pointing accuracy for Ka-Band.
It is widely and ideally used for Broadcasters, Service Providers, GSM operator, Satellite operator, Military and Government Agencies, FreeLands or Rescue Organizations.
2. Highlighted Features
*High RF performance
*High gain, low sidelobes, low cross polarization
*Galvanized stainless steel hardware
*Different frequency ranges from many feed configurations
3. Options
*Full motion antenna
*Feed blower or deicing with automatic controls
*Two or four Tx/Rx port in linear or circular polarized feeds
*Installation and maintenance services
4. Antenna Accessory
Motorization Kits
Limit Switches
ODU Support Kits
Factory Feed System Testing and Documentation
Ocean /Air Transport Packing
Foundation Kit
Grounding Kit Cable-Mounting Kit
