Flyaway Antennas

1.0m Ku/ka Band AutoFlyaway


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

General specification

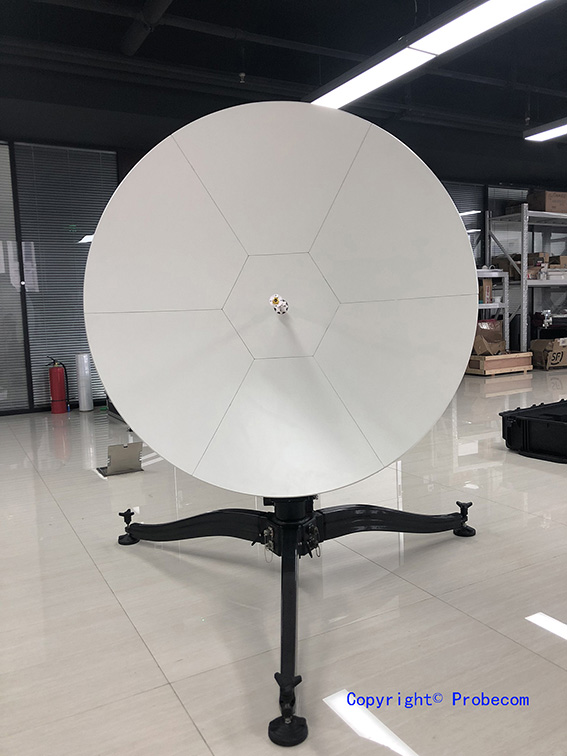

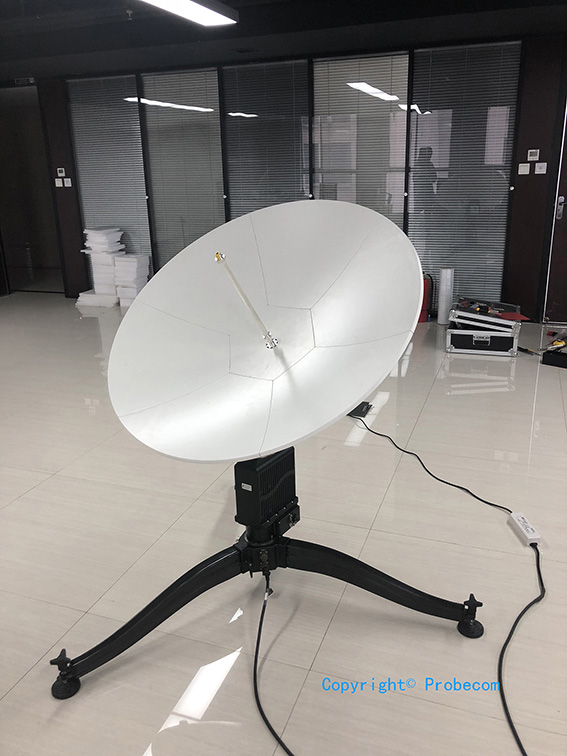

Probecom Ka band auto-tracking flyaway antenna with a select range of 0.75m, 1.0m, and 1.2m series. Antenna adopts with splash plate form, which improves antenna reflection efficiency and achieve antenna better sidelobe in EHF band. Antenna reflector material use carbon fiber material with specially designed processing and surface treatment technology, which improve reflector surface accuracy (RMS with 0.2mm) and compressive strength,

meet with Ka band conductivity. Compact design make antenna with light weight, easy portable and ease operate.



Highlight Features

* Carbon fiber antenna reflector with light weight, high precision and high efficiency, corrosion resistance and other characteristics, it ensured the antenna in the normal operation under harsh environment in greatest degree.

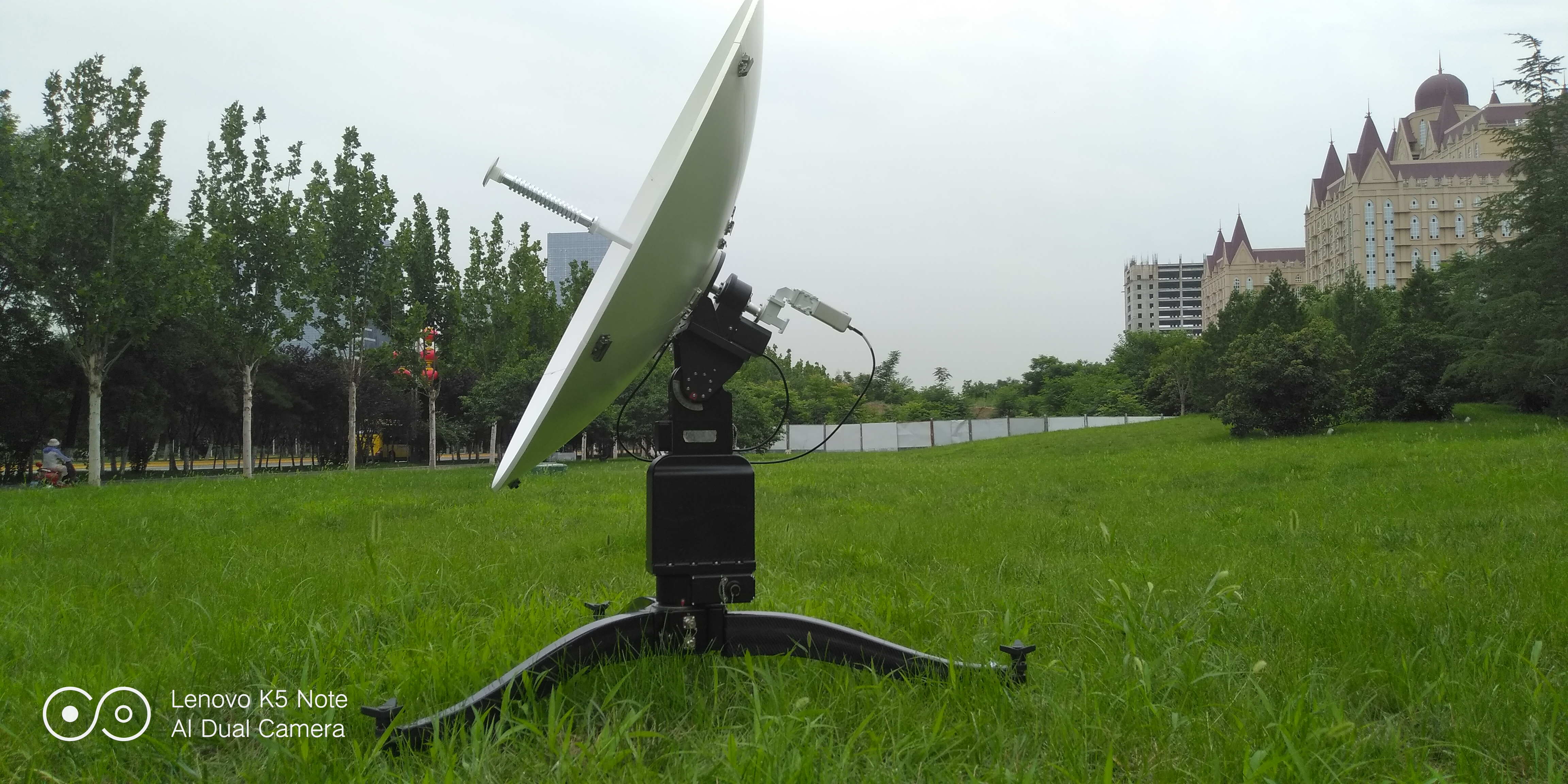

* Compact structure, Lightweight, portable, rapid deployment, high performance, a person can install and point to satellite within 5 minutes,available in airline baggage.

* The latest design of the EHF-band satellite antenna, being compact and robust, cost-effective can be used in the fast and reliable satellite communications.

* Designed specifically for field use, regardless of when and where, it can quickly transfer high-quality broadband content.

* IP specificationIP65


Applications

* Sudden public events and all kinds of disasters on-site information gathering Disaster relief.

* Public security, military, government, oil, water conservancy, electricity, finance and other important sectors of the country

* The remote areas and the vast rural areas out of coverage.Field operations, exploration, military police and news media.



Components

* Sputtering Plate Antenna

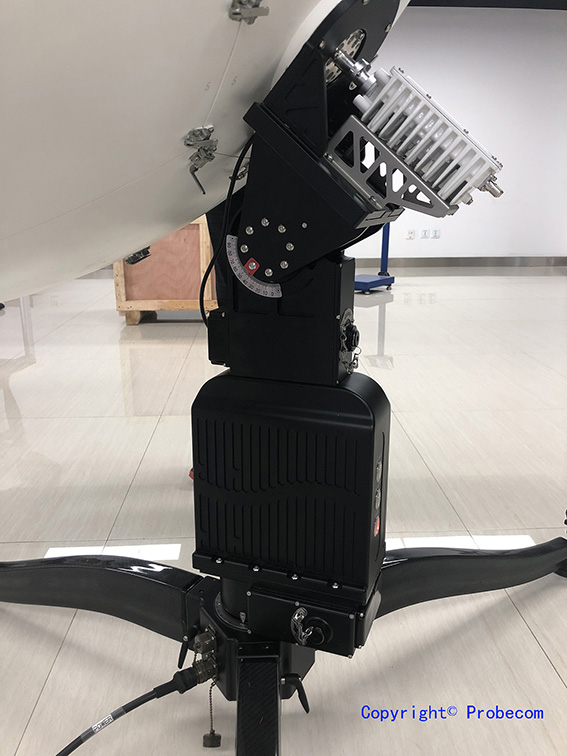

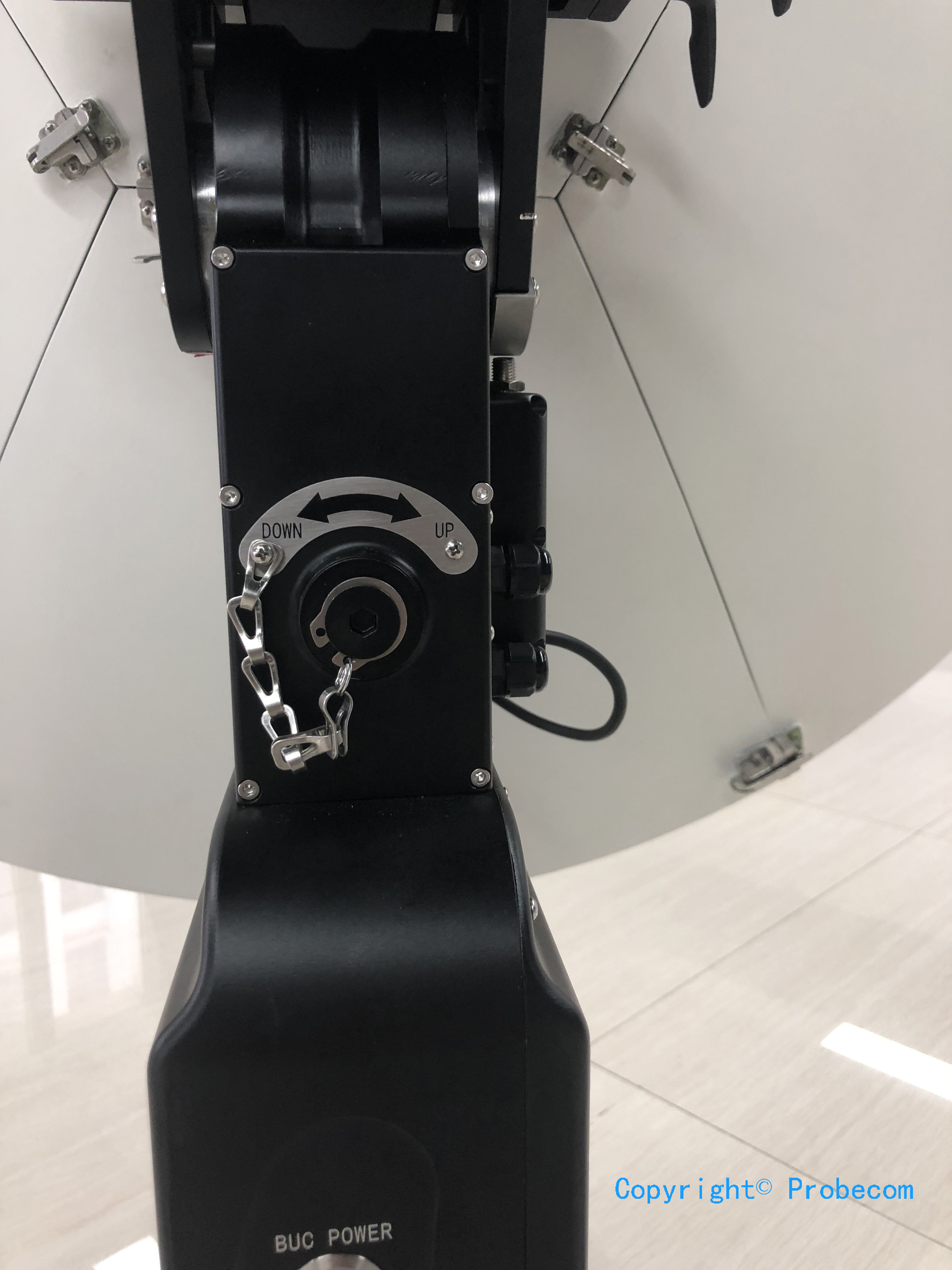

* Azimuth & elevation turntable

* Beacon receiver

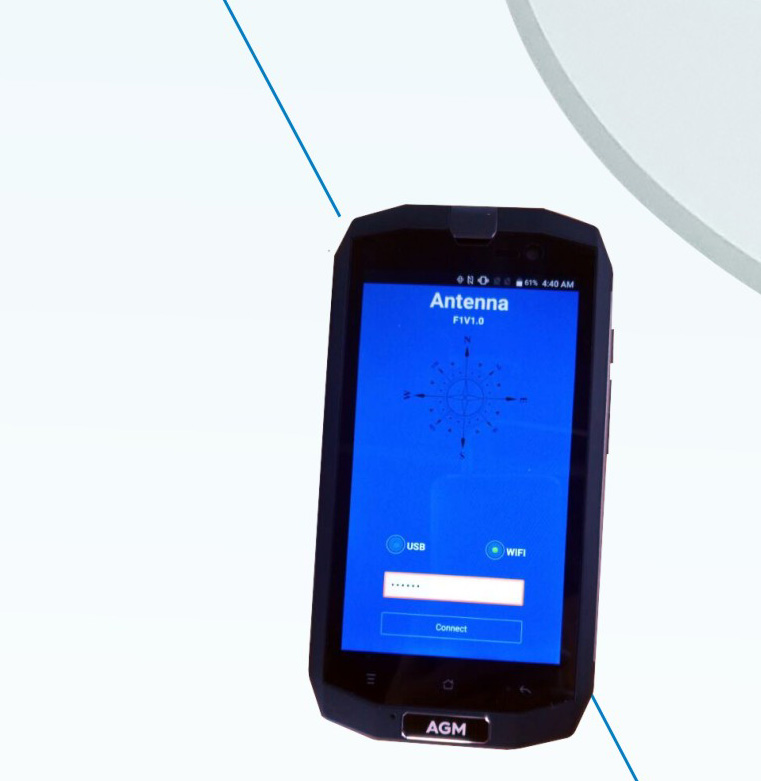

* Wireless handset

* Portable case

* Compass& leveling




Electrical Specification

Type

Ka-Band



Operating Frequency (GHz)

Receive

Transmit

Band1 17.7-19.2

Band1 27.5-29.0

Band2 19.2-21.2

Band2 29.0-31.0

Gain, mid-band (dBi)

43.47@19.2GHz

47.05@29.0GHz

Polarization

Circular

Axis Ratio, dB

2-Port Feed

1.2

VSWR

1.5:1

1.5:1

-3 dB Beam Width, Mid-band

1.1°

0.73°

Tx. Power Capability, W

/

100

Feed Interface

WR42

WR28

Feed Insertion Loss(dB)

0.9dB

0.7dB

Isolation

Tx to Rx, dB

80

Rx to Tx, dB

40

Antenna Type

Ring-Focus Sputtering Plate

Reflector Material

Carbon Fiber

Mechanical Specifications

Antenna Type

Splashing Plate

Main Reflector

Carbon Fiber

Feed

Quick Disassemble

Weight

32Kg

Antenna Direction

Electronic orientation through GPSs, electronic compasses and inclinometer

Storage Time

≤3min

Satellite Acquiring

Auto tracking

Satellite Acquiring Time

≤3min

Tracking Accuracy

≤0.05°RMS

Azimuth Travel

±95°

Elevation Travel

88°

Surface Accuracy (R.M.S)

0.2mm

Operating Wind Speed

43.2km/h~60km/h

Survival Wind Speed

72km/h-100km/h

Operating Temperature

-55°+60°

Power Supply

24V 50Hz or Customization

System power consumption

200W


:Band 1/Band 2 as option
