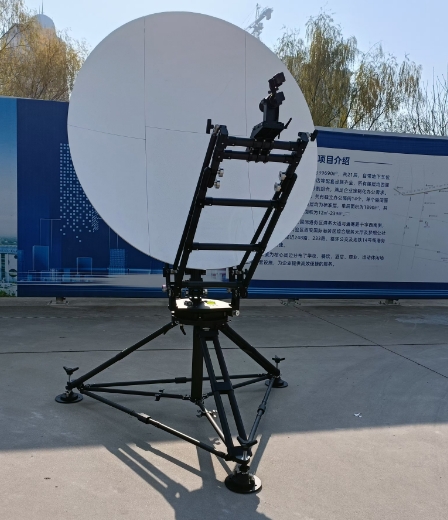

1.8m c/ku band manual flyaway

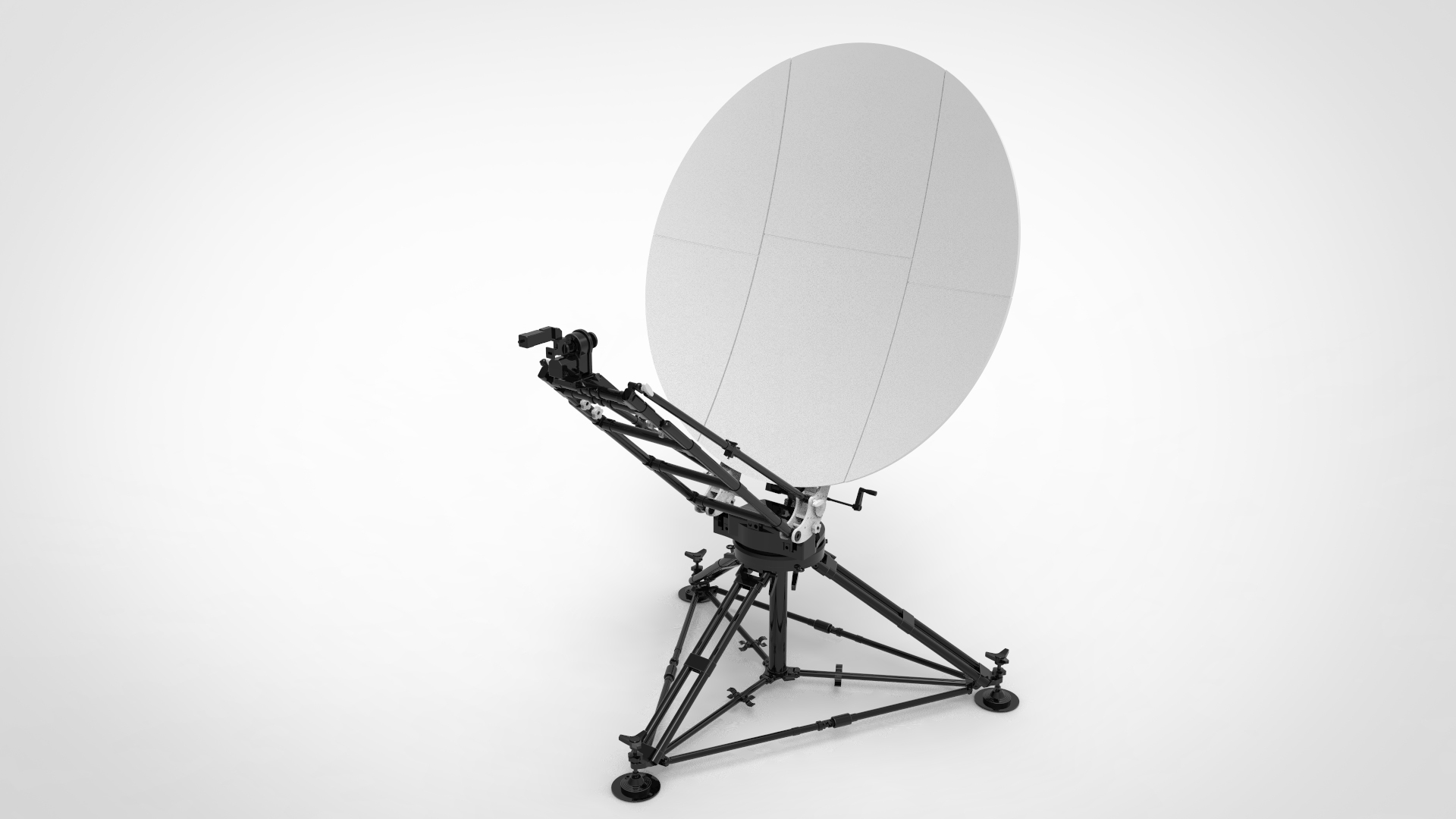

![](/upload/2022-05/07/1-bfbf5.jpg)
- DESCRIPTION
- TECHNICAL
- SPECIFICATIONS
ELECTRICAL SPECIFICATIONS |
||||
Type |
CFM180 |
|||
Operation Frequency(GHz) |
KU band |
C band |
||
Receive |
Transmit |
Receive |
Transmit |
|
10.7-12.75 |
13.75-14.5 |
3.4-4.2 |
5.85-6.725 |
|
Typical Gain(dBi) |
44.8@12GHz |
46.2@14GHz |
35.7@4GHz |
39.2@6GHz |
Polarization |
Linear |
Linear |
||
XPD on Axis(dB) |
33dB |
33dB |
||
Power Handing Capability |
/ |
200W |
/ |
400W |
Feed Interface |
WR75 |
WR75 |
CPR229 |
CPR137 |
Tx/Rx Isolation |
80dB |
|||
Radiation pattern |
ITU-R.S580-5 |
|||
MECHANICAL SPECIFICATIONS |
||||
Antenna diameter |
1.8m |
|||
Antenna type |
single Offset |
|||
Reflector construction |
Carbon Fiber |
|||
Pointing mode |
Manual |
|||
Azimuth travel |
360° |
|||
Elevation travel |
0 to 90° |
|||
POL travel |
±95° |
|||
Mount type |
Elevation over azimuth |
|||
Surface Accuracy (R.M.S) |
0.3mm |
|||
Weight |
90Kg |
|||
Operation temperature |
-40 to + 60°C |
|||
Wind loading |
Operating : 40Km/h gusting to 72 Km/h Survival : 96 Km/h with ties down |
|||
Relative Humidity |
0%~100% |
