1.2m Ku Band Motorized Flyaway Antenna
Online consulting:
- DESCRIPTION
- TECHNICAL
- SPECIFICATIONS
Introduction

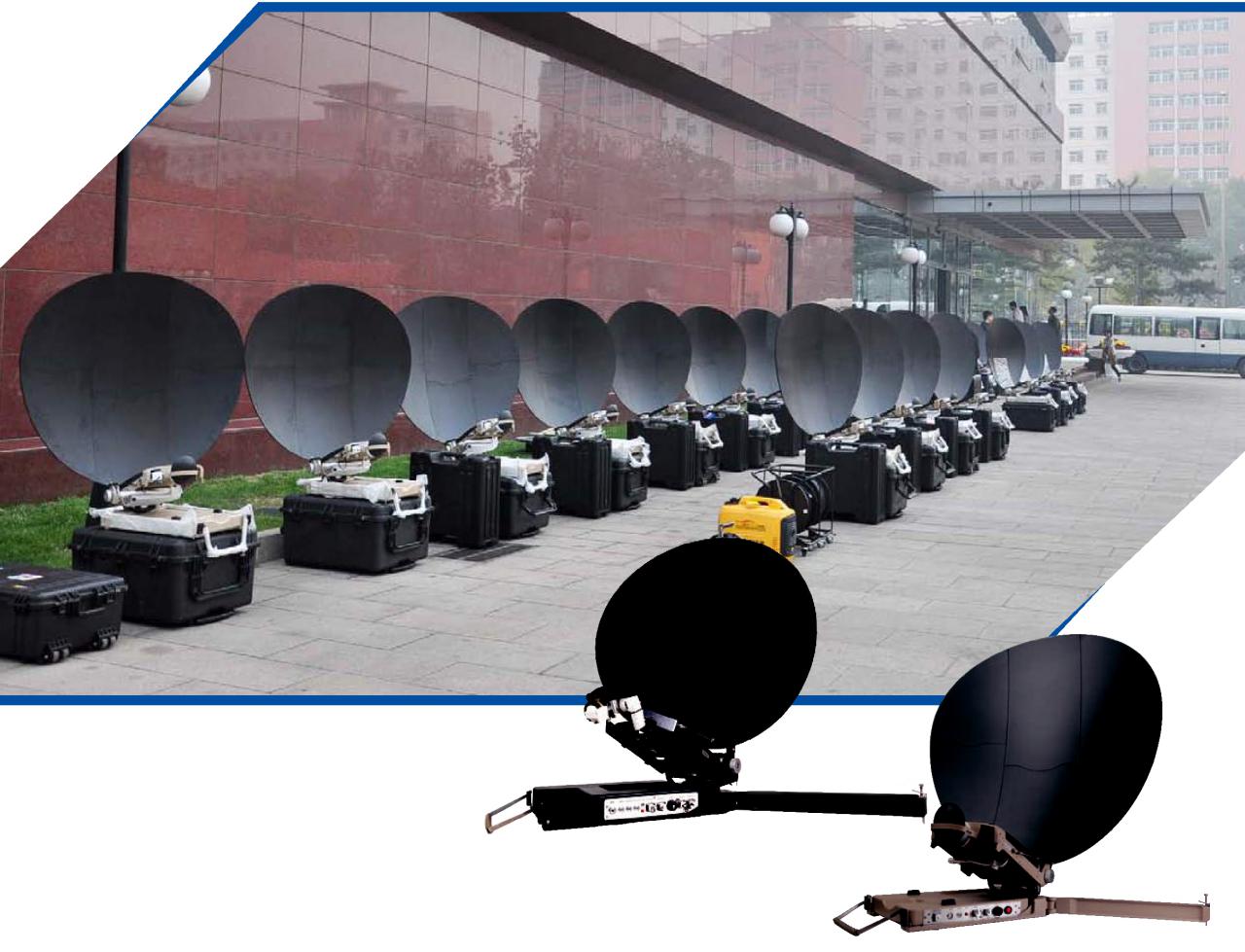

1.2m portable automatic satellite dish antenna has the present highest level of integration and the fastest speed of satellite acquisition.
This antenna is designed for emergency communication especially for individual field application. It’s Quick Deploy Antenna, small-volume and light-weight.
Features
1. One button Setup (deploy, acquire and stow)
2. Ultra-fast satellite acquisition (less than 3 min)
3. High-reliable Tracking/ Dual-Tracking Receiver Technology/ Accurate star-tracking
4. Carbon Fiber Reflector/ High Accuracy/ Low Weight/ Difficult Deformation
5. High Integration Level/ Excellent Portability
6. Third-party MODEN/VSAT IDU Integration Available
7. B/S Control Method / PC or Handheld Smart Terminal Control Available
8. Military-Standard Environment Adaptability
|
Antenna & Feed |
||
|
Model |
Single Offset Antenna |
Gregory Dual Offset Antenna |
|
Reflector Material |
Carbon Fiber |
Carbon Fiber |
|
Reflector Dimension |
1.0m × 0.82m |
1.2m × 1.1m |
|
Frequency-Rx |
10.95 ~ 12.75GHz |
10.95 ~ 12.75GHz |
|
Frequency-Tx |
13.75 ~ 14.5GHz |
13.75 ~ 14.5GHz |
|
Polarization |
Linear Polarization |
Linear Polarization |
|
Gain(dBi±0.3)- Rx |
39.5dBi@12.5GHz |
41dBi@12.5GHz |
|
Gain(dBi±0.3)- Tx |
40.3dBi@14.25GHz |
42dBi@14.25GHz |
|
Side Lobe Performance: |
100λ / D＜θ＜7 29-25logθdBi 32-25logθdBi 10 10 |
100λ / D＜θ＜7 29-25log θdBi 10 |
|
Polarization Isolation: |
≥35dB (axial direction) |
≥35dB (axial direction) |
|
Servo & Control |
||
|
Signal Tracking Type: |
DVB S1/S2 , Beacon Receiver(Hot Spare) |
DVB S1/S2 , Beacon Receiver(Hot Spare) |
|
Tracking Accuracy: |
≤0.2° |
≤0.2° |
|
Setup Time: |
≤ 3min |
≤ 3min |
|
Control Mode: |
Wire Control/ Wireless(WIFI) Control |
Wire Control/ Wireless(WIFI) Control |
|
Control Terminal: |
PC / Handheld Smart Terminal |
PC / Handheld Smart Terminal |
|
Power Supply: |
90-264 VAC, 47-63 Hz, 48VDC (Optical) |
90-264 VAC, 47-63 Hz, 48VDC (Optical) |
|
Power Consumption (BUC not Included) : |
Maximum: ≤ 110W |
Maximum: ≤ 110W |
|
Structure Features |
||
|
Net Weight: |
25.5Kg |
29.5Kg |
|
Product Size: |
670mm × 400mm × 230mm |
670mm × 400mm × 230mm |
|
Azimuth: |
±90° |
±90° |
|
Elevation: |
10° ~ 90° |
10° ~ 90° |
|
Polarization: |
±90° |
±90° |
|
Work Environment |
||
|
Operating Temperature: |
-25℃ ~ +55℃ |
-25℃ ~ +55℃ |
|
Storage Temperature: |
-40℃ ~ +80℃ |
-40℃ ~ +80℃ |
|
Wind Resistance: |
a) working wind speed: ≤14m/s |
a) working wind speed: ≤14m/s |
|
|
b) Maximum wind speed: ≤18m/s |
b) Maximum wind speed: ≤18m/s |
|
Rain: |
≤100mm/h |
≤100mm/h |
