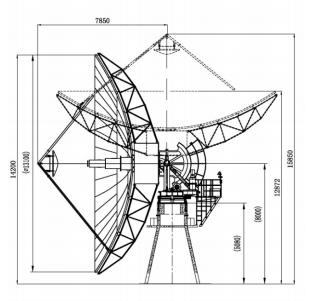

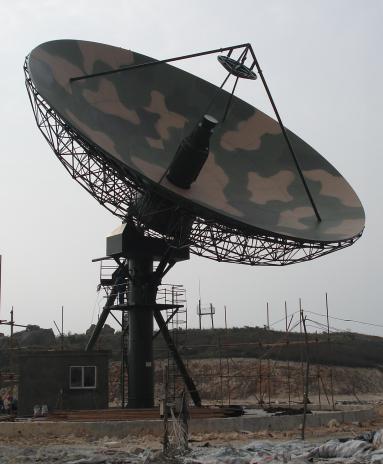

The probecom 13m ground station (aluminium dish antenna) delivers exceptional performance for transmit/receive and receive only applications for L through Ka-band frequencies. This earth station antenna offers a reflector design that incorporates precision-formed panels, truss radials and hub assembly using matched tooling for interchangeable components. It features an innovative Cassegrain or Ring Focus feed and sub-reflector design which results in high gain, low noise temperature, high antenna efficiency and excellent rejection of noise and microwave interference. A large center hub provides spacious accommodation for equipment mounting. The reflector is supported by a galvanized elevation over azimuth kingpost pedestal that provides the required stiffness for pointing and tracking accuracy. The pedestals are designed for full orbital arc coverage and are readily adaptable to ground or rooftop installations.

Highlighted Features:

*Meets CCIR 580 and INTELSAT Requirements

*Precisely adjusted before leaving factory, and no need theodolite to adjust the panel accuracy;

*High precision alloy aluminum main reflector.

Hot spray galvanized with white paint

*CP/LP switchable feed

*High RF performance

*Galvanized stainless steel hardware

*Different frequency ranges from many feed configurations

*Ka band antenna with rotary pedestal is available

*A large hub for install RF equipments

*Multi-layer anti-corrosion treatment.



Options

*L,S, X ,Ka bands and multi-bands

*Customer feed system design

*800MHz Extended C band is available

*Full motion antenna

*Feed blower or deicing sub-systerm with automatic controls

*Two or four Tx/Rx port in linear or circular polarized feeds

*Antenna control system with tracking

*ODU Support Kits

*Increase the surface spray zinc thickness along seaside.



Antenna Accessory

*Motorization Kits

*Limit Switches

*Factory Feed System Testing and Documentation

*Ocean /Air Transport Packing

*Foundation Kit

*Grounding Kit Cable-Mounting Kit



Electrical Specification

Type

C130T

EC130T

IC130T

K130T

DBS130T

Operating Frequency, GHz

Standard C band

Extended C band

Insat C band

Ku Band

DBS Band

Receive

Transmit

Receive

Transmit

Receive

Transmit

Receive

Transmit

Receive

Transmit

3.625~4.2

5.85~6.425

3.4~4.2

5.85~6.725

4.5~4.8

6.725~7.025

10.70~12.75

13.75~14.5

10.70~12.75

17.3-18.4

Typical Gain, Mid-band, dBi

52.6

56.5

52.4

56.8

54.1

57.5

61.8

63.4

61.8

65.3

Polarization

Linear/circular

Linear/circular

Linear/circular

Linear

linear

XPD(on Axis), dB( Linear)

35

35

35

35

35

35

35

35

35

35

XPD across 1dB Beam Width, dB( Linear)

30

30

30

30

30

30

30

30

30

30

Axis Ratio, dB (circular)

0.5

0.5

0.5

0.5

0.5

0.5

/

/

/

/

VSWR

1.25

1.25

1.30

1.30

1.25

1.25

1.30

1.30

1.30

1.30

Antenna Noise Temperature (4 Port Feed)

10° Elevation

30° Elevation

50° Elevation



50K

43K

41K





52K

45K

43K





55K

48K

45K
