AC3500 Antenna Control System (AC Control System)

AC3500 Antenna Control System (AC Control System)

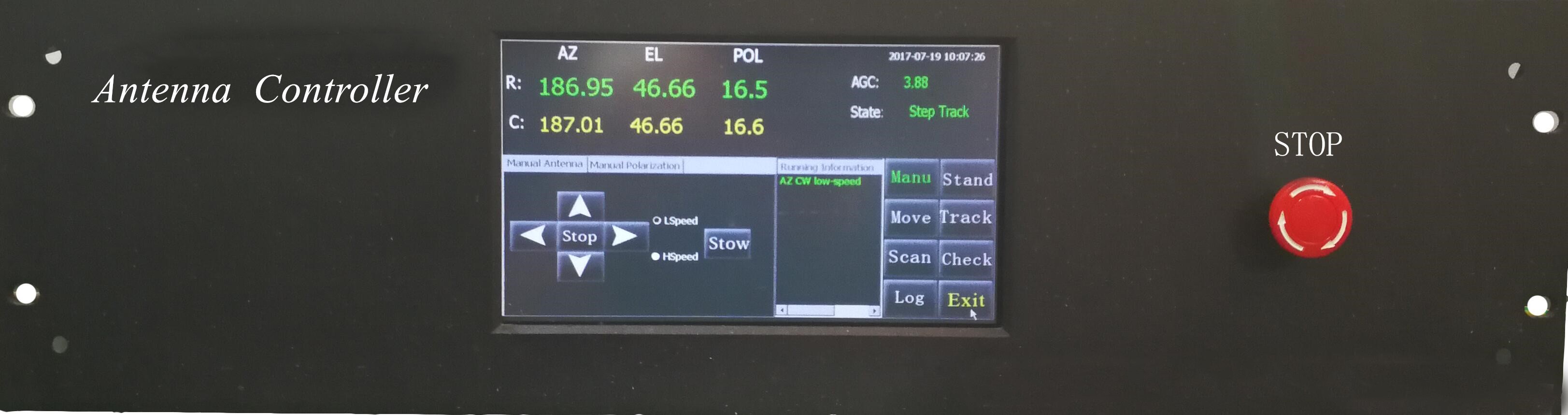

AC3500

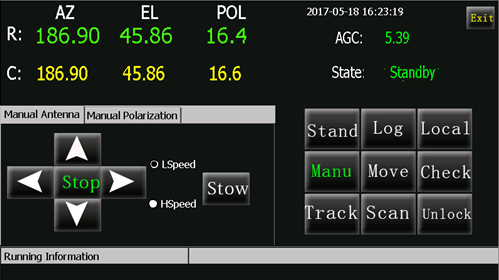

GUI

General Description:

The Probecom Model AC3500 Antenna Control Unit AC3500 ACS as a suit of antenna pointing system, it can manually or automatically control antenna rotation to precisely pointing to the satellite. The ACU adopts ARM9 series microprocessor and thus reliably guarantees the accuracy and stability of algorithm for antenna tracking system. Provided with standard RJ45 cable interface and The human-computer interface is designed by a 7-inch color touch screen with decent appearance and easy for operation.

Control unit and drive unit are integrated into one 3U standard chassis

Highlight:

*Integrated in 3U standard chassis(include ACU&ADU)

*ARM9 series microprocessor

*WINDOWS CE6.0 CORE operating system.

*16-bit optical resolver

*7.0-inch (16:9) TFT True Color LCD touch screen

*Two speed driver(high for slew ,Low for tracking)

*0.001°display for AZ and EL

*100 Satellite Positions Preset

*Emergency Stop

*Remote control over Ethernet or Various serial port

*Big screen display of alarm, antenna position and fault indication.

*Software and hardware travel limit switches ensure the safety operation.

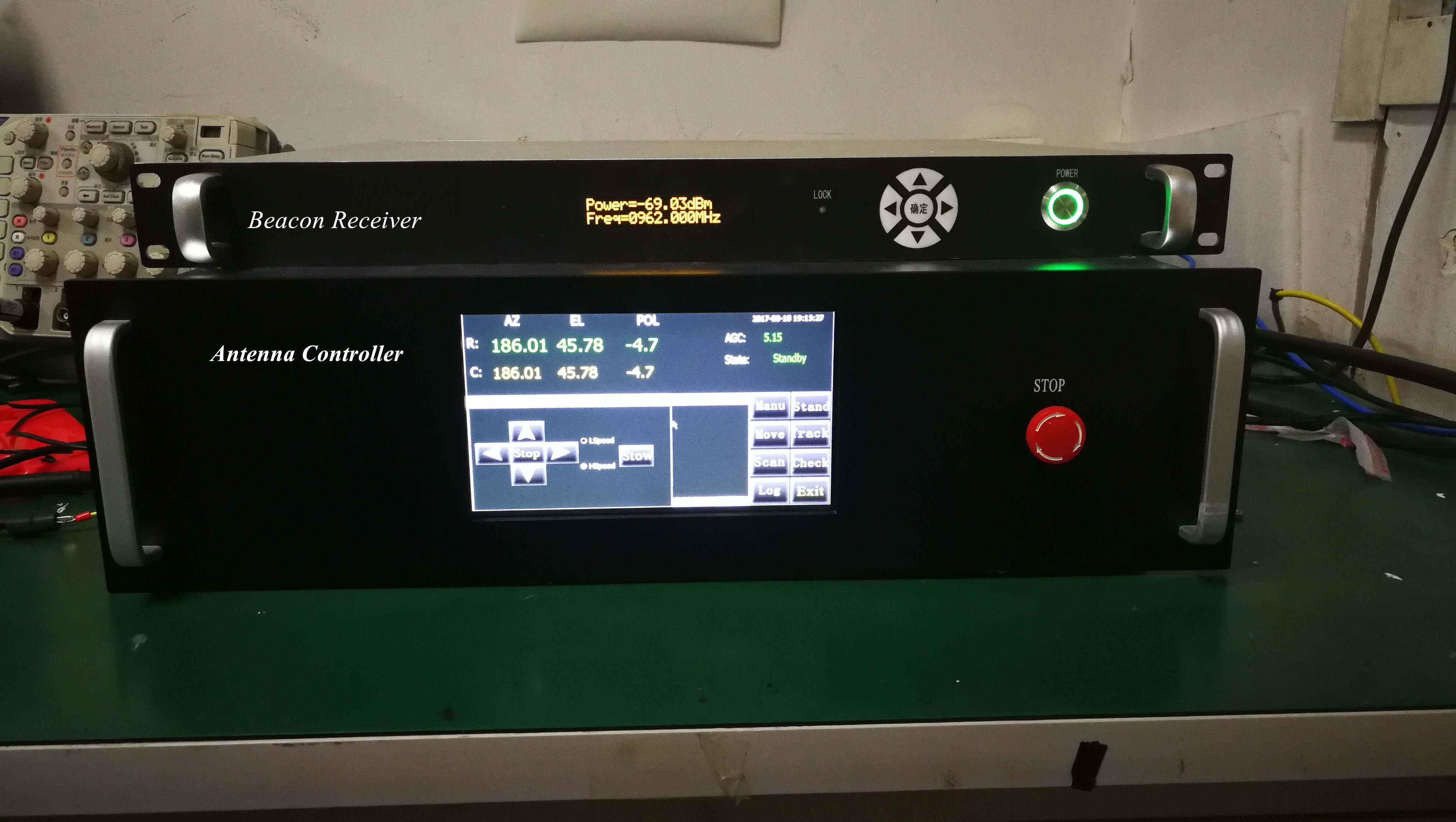

*Integrated beacon receiver as a option

Modes of Operation

* STANDBY

* MANUAL

* STEPTRACK

* MEMORY TRACKING

Tracking Accuracy

Better than 10% receive 3dB beam width RMS in Step Tracking

Controls / Interfaces

Front panel Local control

Remote: Ethernet,

Serial: RS-422,OR RS-232,OR RS-485

Receiver Interface: 0-10 VDC OR RS-232

Alarm: Summary output

Environmental

Temperature: 0 to 50° C

Humidity: 95% non-condensing

Electrical

100-240 VAC,47-63 Hz 100 W typical

Motor Size:  1-3 HP standard

Larger sizes available

Mechanical

Height:3 Rack Units

Width: 19”

Depth: 19”
