AC3000E Antenna Control System(AC Control System)
Online consulting:
- DESCRIPTION
- TECHNICAL
- SPECIFICATIONS

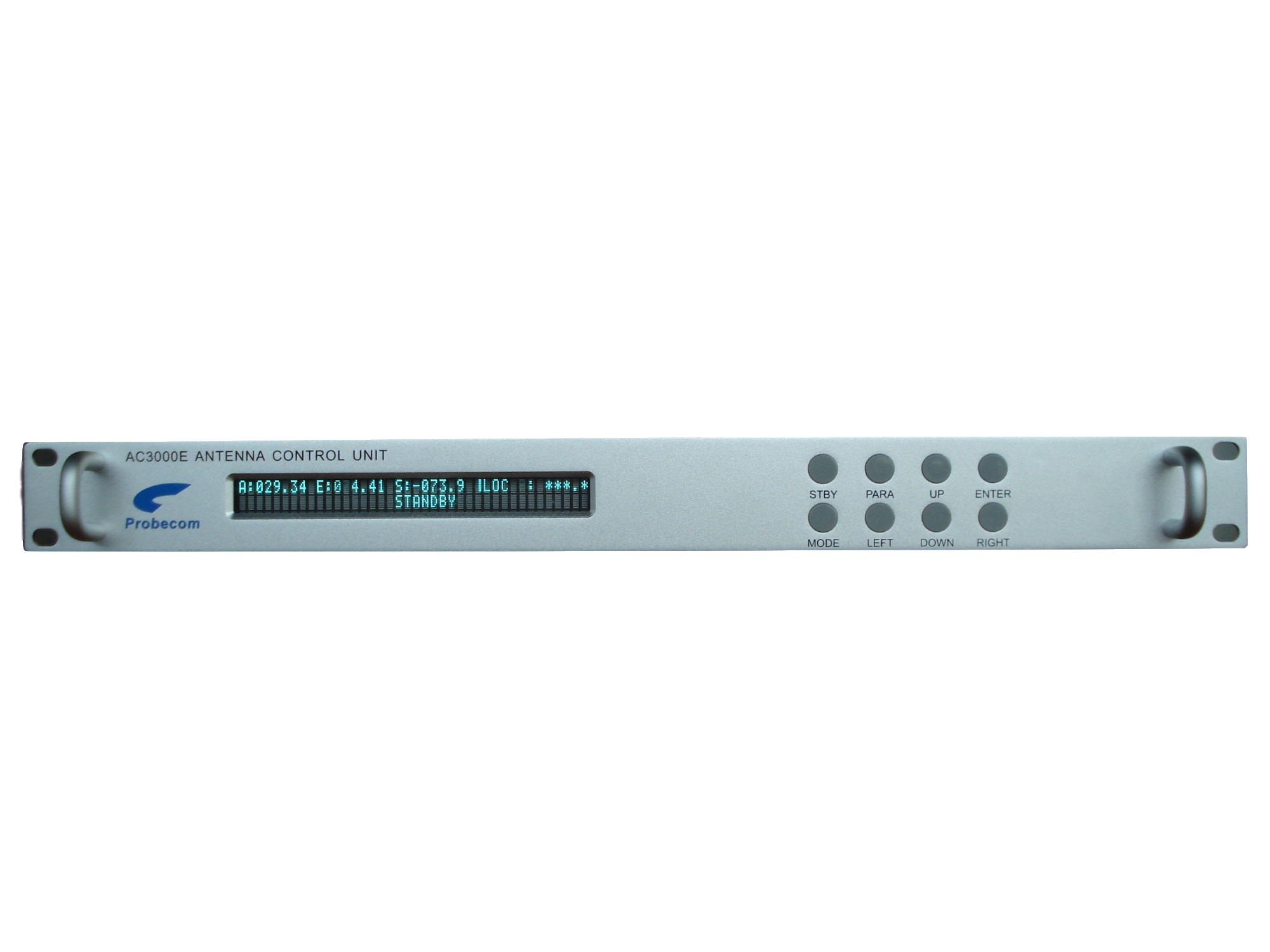

The Pobecom Model AC3000E Antenna Control Unit enables satellite earth station antennas to accurately track geostationary and Inclined orbit satellites up to 5 degree.
AC3000E antenna control system is designed with the latest digital processing technology, the most precise antenna pointing, high reliability and maximum flexible system configuration.
The system is remotely controllable over Ethernet via TCP/IP or various serial ports (, RS-232, RS-485.)
Highlight:
*Key Stroke Operation
*Two speed driver(high for slew ,Low for tracking)
*VFD display
*50 Satellite Positions Preset , 50 Look angle Preset
*Three Axis Control for Az and EI .Polarization as a option.
*Software and hardware travel limit switches ensure the safety operation.
*Remote control over Ethernet or Various serial port
|
Modes of Operation *Standby * Manual(High/low speed control) * Step tracking *Move to look angel or satellite * Learning optimization tracking(LOP) (it can track synchronous satellites with inclined angle≦5°)(optional) *Command mode (optional) *Program tracking mode (optional) *Scanning mode (optional) |
Tracking Accuracy Better than 10% receive 3dB beamwidth RMS in Step Tracking Nominally 7% receive 3dB beamwidth RMS with LOP Tracking Position display resolution：0.001°
|
|||
|
|
Controls / Interfaces Front panel Local control Remote: Ethernet, TCP/IP Serial: RS-485, RS-232 Receiver Interface: 0-10 VDC ADU: Standard Drive Interface Alarm: Summary output |
Environmental Temperature: 0 to 50° C Humidity: 95% non-condensing |
||
|

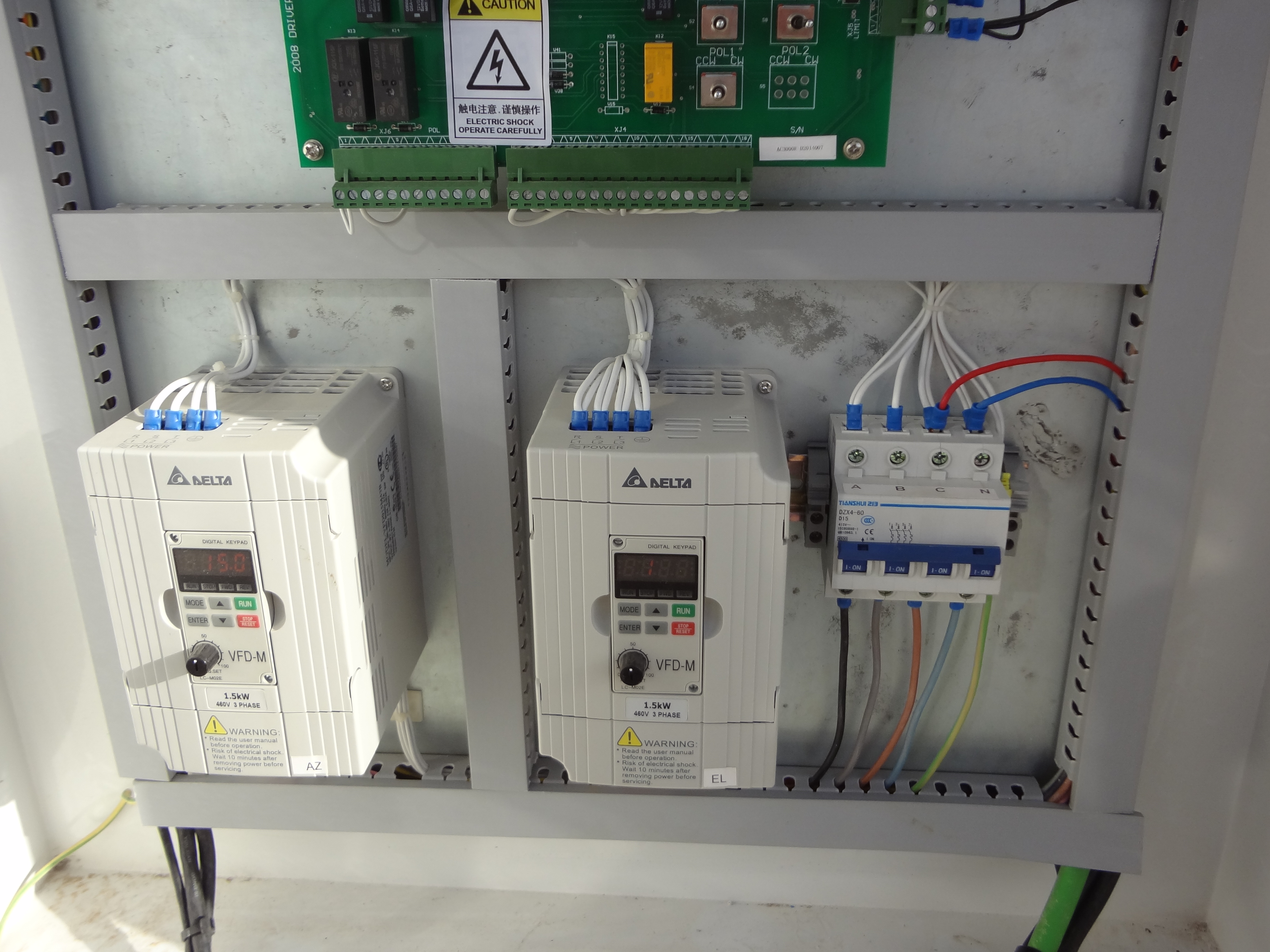

Electrical ACU: 100-240 VAC,47-63 Hz 100 W typical ADU: Motor Size: 1-5 HP standard Larger sizes available |
Mechanical ACU:Height: 7” (1 Rack Units) Width: 19” Depth: 19” |
ADU: Height: 1000mm Width: 700mm Depth: 300mm |
||
