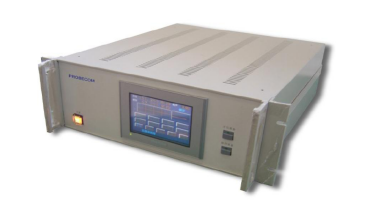

AC2000D Antenna Control System(DC Control System)


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

AC2000-D ACS adopt DSP technology, including antenna position detection and DC servo motor, PWM is for DC motor speed adjusting and IPM. It adopts multi-circuit hi-speed digital processor, fully digital control from the antenna position detection and control to double DC motor drive away gap. Motor con trol mode is for pulse width modulation (PWM) dc speed, power amplifier main loop is using intelligent power module (IPM).

*Azimuth, Elevation DC motor backlash

Azimuth, Elevation position testing & control

* Storage of 12 satellite antenna position

* Calculating satellite antenna position according to the longitude

soft limit, switch prelimit, eventual 3 limit switches space protection

* Elevation collection locking control

* Fault diagnosis and interlock protection, display, alarm and records

* Real-time serial communication


  Modes of Operation

  *Manual

  *Manual control speed

  *Preset position

  *Preset satellite

  *Step track,

  *Auto-search



 Tracking Accuracy

 Better than 10% receive 3dB beamwidth RMS in Step Tracking

 Position display resolution0.001°

 Position control resolution0.002°



 Controls / Interfaces

 Front panel touch  screen control

 Serial: RS-485, RS-232

 Receiver Interface: 0-10 VDC

 Alarm: Summary output

 Environmental

 Temperature: 0 to 50° C

 Humidity: 95% non-condensing

 Electrical

 100-240 VAC,47-63 Hz 500 W typical



 Mechanical

 ACU:Height: 4 Rack Units

Width: 19”

Depth: 19”
