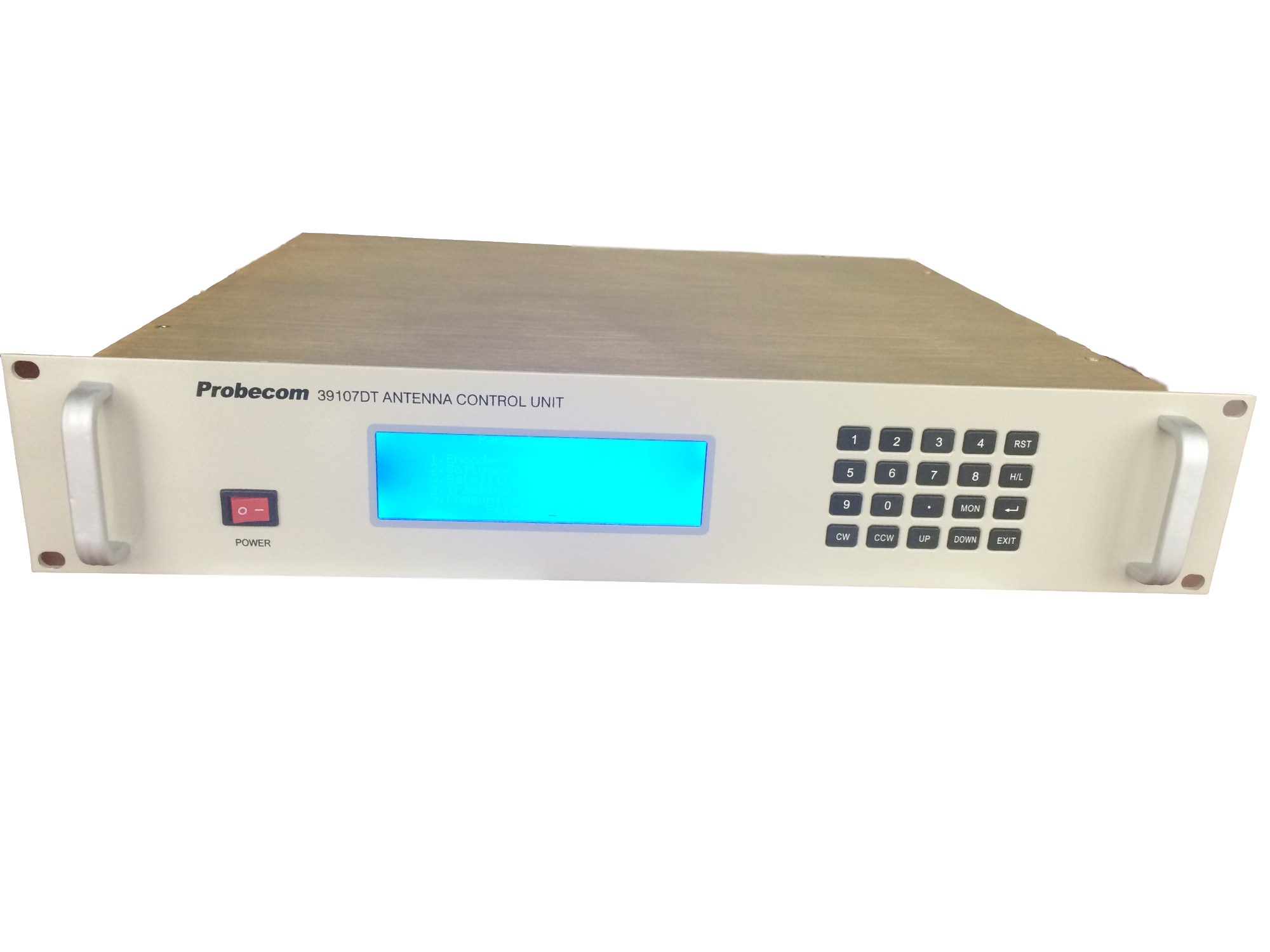

39107DT Antenna Control System(AC Control System)

Online consulting:


Model 39107DT Antenna control Unit comprise the antenna control unit and antenna drive unit.It can be used with antenna for precision satellite tracking and telemetry control applications. The Antenna Control Unit is the primary control and monitor interface of the system, featuring a friendly windowing interface and menu-driven configuration.

*Key Stroke Operation

*One speed driver

*Target Tracking

*50 Satellite Positions Preset

*Three Axis Control for Az and EI .Polarization as a option.

*Antenna Position Setting

*Big screen display of alarm, antenna position and fault indication.

*Remote Control Linked Via RS-232 communication ports on the rear panel of the ACU.

       *Software and hardware travel limit switches ensure the safety operation.

  Modes of Operation



  * Step tracking

  *Move to look angel or satellite


  Tracking Accuracy

  Better than 10% receive 3dB beamwidth RMS in Step Tracking

  Position display resolution0.01°


 Controls / Interfaces

 Front panel Local control

 Remote: RS-232

 Receiver Interface: 0-10 VDC

 ADU: Standard Drive Interface

 Alarm: Summary output


 Temperature: 0 to 50° C

 Humidity: 90% non-condensing


 ACU: 100-240 VAC,47-63 Hz 100 W typical

 ADU: Motor Size: 1-5 HP standard

Larger sizes  available


 ACU:Height: 2 Rack Units

 Width: 19”

 Depth: 19”


 ADU: Height: 2 Rack Units

 Width: 19”

 Depth: 19”
