6.2 Meter High Wind Resistance Antenna

2019-05-17

Probecom 6.2m antenna B3R


The Probecom 6.2m satellite antenna delivers exceptional performance for transmit/receive and receive only applications for L through Ka-band frequencies. This ground earth station antenna offers a reflector design that incorporates precision-formed panels, truss radials and hub assembly using matched tooling for interchangeable components. It features an innovative Cassegrain or Ring Focus feed and sub-reflector design which results in high gain, low noise temperature, high antenna efficiency and excellent rejection of noise and microwave interference. A large center hub provides spacious accommodation for equipment mounting. The reflector is supported by a galvanized elevation over azimuth kingpost pedestal that provides the required stiffness for pointing and tracking accuracy. The pedestals are designed for full orbital arc coverage and are readily adaptable to ground or rooftop installations.

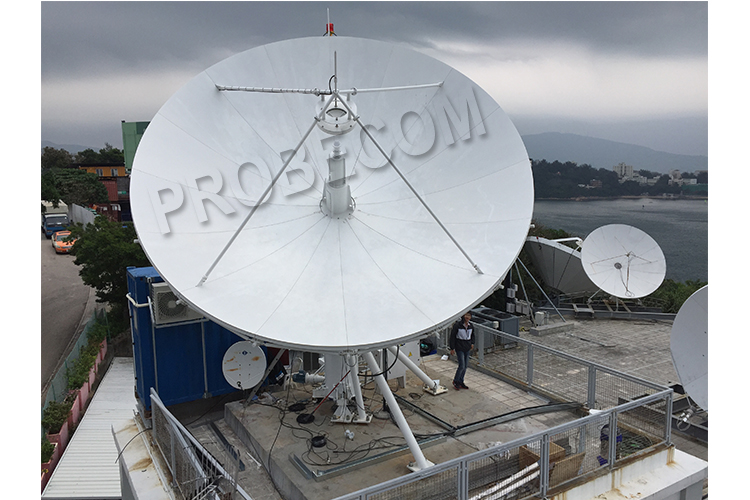

Probecom 6.2m antenna B1R

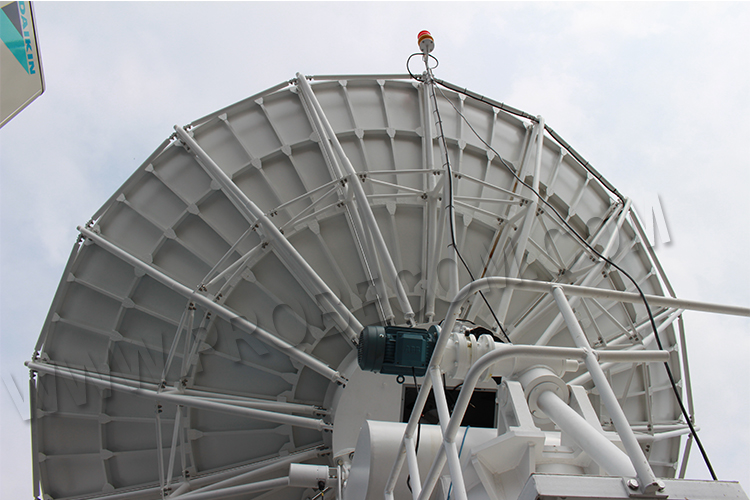

Probecom 6.2m antenna B2R


The Strength to Perform

C, X, Ku, Ka and DBS-band feed configurations

Aluminum reflector

Galvanized pedestal

High wind configuration

Turnkey installation and testing

Environmental hub configurations
