PROBECOM 1.8M CARBON FIBER TRANSPORTABLE OFFSET-FEED FLYAWAY ANTENNA

2019-05-10

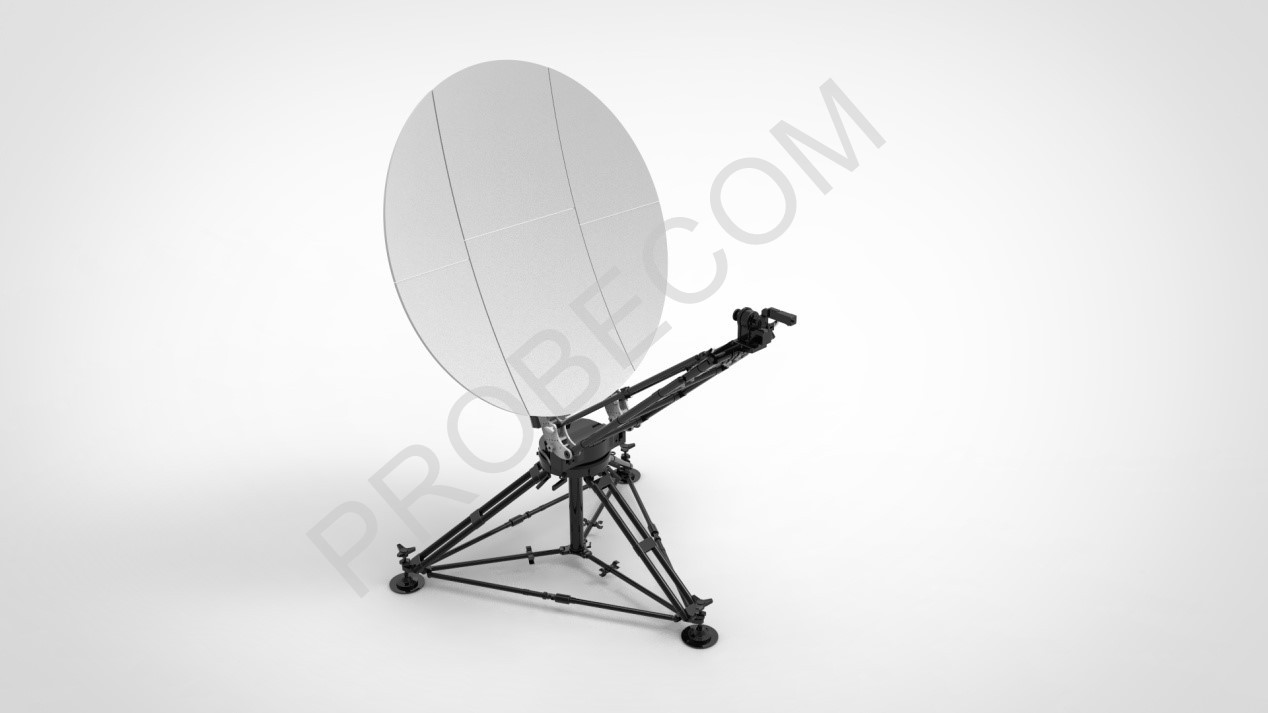

1.8MProbecom 1.8M Carbon fiber transportable offset-feed flyaway antenna is Probecom’s latest R&D products, have two types drive mode: manual  and motorized auto-tracking mode, antenna integrated C, Ku, Ka & X band frequency feed system. With compact structure design, antenna realized with portable and easy to install & operate. Carbon fiber reflector material makes antenna with light weight, high precision & efficiency, corrosion resistance, etc. With developed manufacture and strict test environment, ensured antenna can operate under harsh environment.

Components

l  Single Offset Antenna

l  Azimuth & elevation turntable

l  Portable case

l  Compass& leveling

Features

l  Simple manual or auto-tracking satellite acquisition

l  Waterproof and rugged design for harsh environments

l  Light weight, Portable cases for ease transportation

l  High performance carbon fiber segmented antenna

l  Fast acquisition

l  Support C, Ku, Ka & X-band (both manual & auto-tracking)

l  Set up time less than 5 minutes


Applications:

l  Public emergency events, all kinds of disasters on-site information gathering Disaster relief.

l  Public security, military, government, oil, water conservancy, electricity, finance and other important sectors of the country.

l  The remote areas, the vast rural areas out of coverage.

l  Field operations, explorations, military police and news media.



Technical specification

Electrical Specification

Type

CFM180EC

Frequency(GHz)

Extended C band

Operation temperation

Receive

Transmit

3.4~4.2

5.85~6.725

Typical Gain(dBi)

35.75@4.2

39.8@6.725

Polarization

Linear

VSWR

1.25:1

1.25:1

Beam width: -3dB

2.68°

1.67°

Power Handing Capability

100W

Feed Interface

CPR-229F

CPR-137F

Feed Insertion Loss(dB)

0.4dB

0.2dB

Tx/Rx Isolation

80dB

Cross Polarization Isolation

≥33dB

Side lobe

At least 90% of the side-lobe peaks does not exceed

32-25logθ(100λ/D<θ≤20°)

MECHANICAL SPECIFICATIONS

Weight

80kg

material

Carbon Fiber

Surface Accuracy (R.M.S)

0.3mm

Mounting time

5minutes Two Persons

Drive mode

Manual Drive

Azimuth Travel

360°

Elevation travel

90°

Polarization Travel Rate

±90°

Ambient Temperature

-30°+60°

Wind loading

Operating : 40Km/h gusting to 72 Km/h

Survival : 96 Km/h with ties down

Relative Humidity

0%~100

With strict screening and testing Probecom has successfully developed various models to meet customers` requirements. Include:

0.55m Ku Band Manual Flyaway Antenna Ku band.

0.75m Ku Band Manual Flyaway Antenna Ku Band, Ka Band.

0.75m Ku Band Manual Flyaway Antenna Ku Band

1.0m Ka Band Auto-tracking Flyaway Antenna Ka Band

1.0m Ku/Ka Band Manual Flyaway Antenna Ku Band, Ka Band

1.0m Ku Band Manual Flyaway Antenna Ku Band

1.2m Ku Band Manual Flyaway Antenna Ex C Band, Ku Band

1.2m Fiber Glass Manual Flayway antenna Extend C Band, Extend Ku Band

1.2m Ku Band Motorized Flyaway Antenna Ku Band

1.2m C/Ku Band Manual Flyaway Antenna Extend C Band, Extend Ku Band

1.8m Fiber Glass Manual Flyaway Antenna Extend C Band, Extend Ku Band

1.8m Carbon Fiber Manual Flayway Antenna Extend C Band


Carbon fiber manual flyaway antenna: 0.55m,0.75m,1.0m,1.2m,1.8m,2.4,

Carbon fiber automatic portable antenna: 1.0m, 1.2m.

Fiber glass manual flyaway antenna: 1.2m, 1.8m

Ka band carbon fiber flyaway antenna 0.75m, 1.0m, 1.2m.


Compared with others, our fly antenna win at low cost and high efficiency, should you have any requirement please feel free to contact at: sales@probecom.cn or follow us at or SNS links:
