C-, X-, Or Ku-Band 3.0 Meter Earth Station Antennas From Probecom

2019-05-07

initpintu_副本_副本

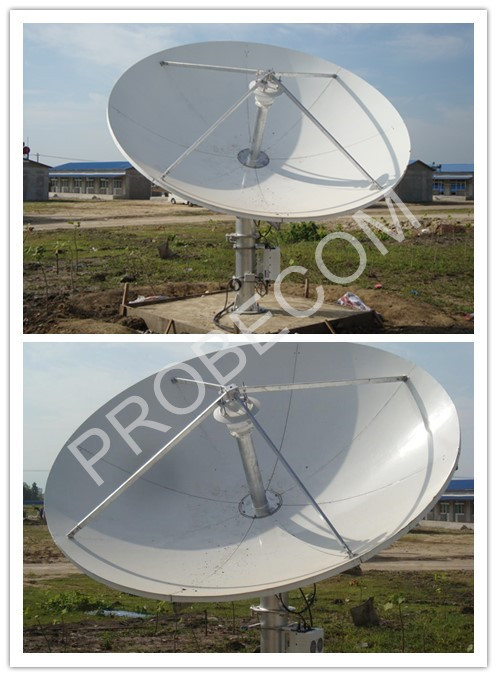

Probecom supply 3.0m vast Antenna/dish with C/KU/S/L/KA band, 3.0 meter Transmit / Receive Antennas ,3.0m TX/RX Antenna/dish with linear polarization or circular polarization. Probecom 3.0m VSAT Antenna is a common product with the features of stable structure and prior performance, that Cross Polarization Isolation is very good and other performances are done well according to the specification. Our product can meet the standard of INTELSAT IESS and CCIR Rec.580-4, INMARSAT, ASIASAT, APT and CHINASAT, etc.

Probecom 3.0Meter Antennas Features:

High Gain, Excellent Pattern Characteristics

High precision alloy aluminum main reflector.

Different frequency ranges from many feed configurations

Stable structure and good anti-rust capacity

3-year Warranty on All Structural Components

3.0M Earth station Antennas Electrical Specification

Type

C30T

K30T

Operating Frequency, GHz

C-Band

Ku-Band

Receive

Transmit

Receive

Transmit

3.625~4.2

5.85~6.425

10.95~12.75

13.75~14.5

Gain, Mid-band, dBi

40.12

43.70

49.42

50.73

Polarization

Linear/Circular

Linear

XPD(on Axis), dB

35

35

35

35

XPD across 1dB Beam Width, dB

33

33

33

33

Axial Ratio

(Circular-Polarized)

2-Port Feed

4-Port Feed

1.30

1.06

1.09

1.06

VSWR

1.25

1.25

1.25

1.25

Antenna Noise Temperature 2-port feed

10° Elevation

30° Elevation

50° Elevation

29K

22K

19K

48K

39K

35K

-3 dB Beam Width, Mid-band

1.5°

1.1°

0.56°

0.48°

Typical G/TEL>10°

20.4dB/K

(30° LNA)

27dB/K

(70° LNA)

Tx. Power Capability, KW

5

2

Feed Interface

CPR—229F

CPR—137F

WR-75

WR-75

Feed Insertion Loss, dB

0.2

0.2

0.25

0.2

Isolation, Tx to Rx, dB

85

85

First Side lobe

90% Peaks under Following Envelop

-14

29-25logθ(1°≤θ20°)

-14

29-25logθ(1°≤θ20°)

3.0M Earth station antenna Mechanical Specification

Antenna Diameter

3m

Antenna Type

Ring Focus

Surface AccuracyRMS

≤0.35mm

Antenna Pointing Range

Azimuth

Elevation

Polarization

0°~360°(Continuous)

0°~90°(Continuous)

±90°(Continuous)

Drive Mode

Manual or Motorized

3.0M Earth station antenna Environmental Specification

Operational Wind

72km/h gusting to 97km/h

Survival Wind

216km/h

Temperature

-40°~+60°

Relative Humidity

100%

Solar Radiation

1135Kcal/h/m²

Seismic(Survival)

0.3g(H), 0.15g(V)

Ice Loading

13mm Operational; 25mm Survival





















































Probecom design & manufacture a wide variety of L, C, X, Ku, & Ka band Satellite dish antennas for high-end customers including defense agencies, commercial broadcast networks, systems integrators and research agencies.

Full specifications of these antennas can be found on Probecom website.
