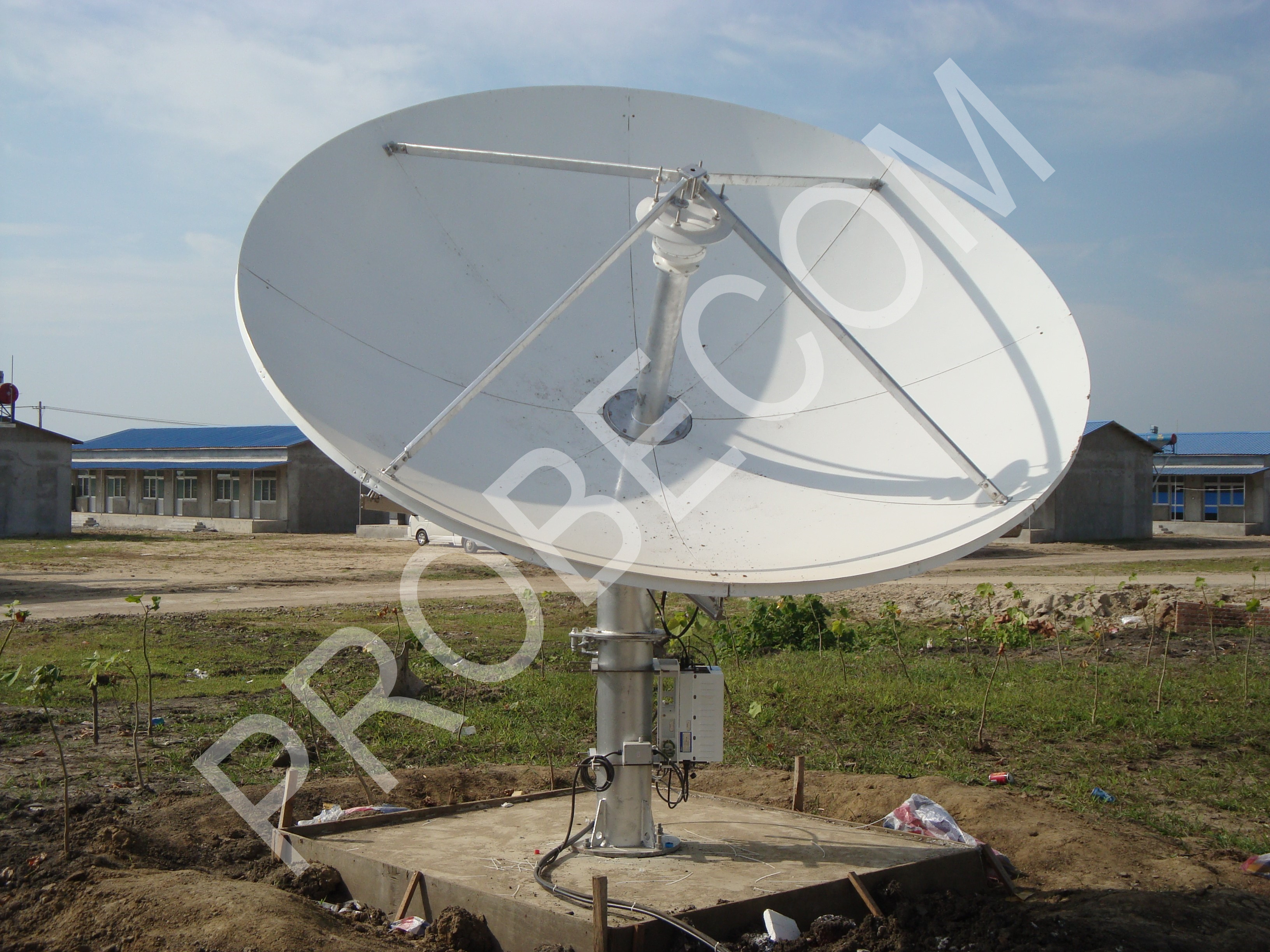

3.0M L, S, X BANDS AND MULTI-BANDS DBS ANTENNA

Probecom 3.0M Ring focus antenna provids Tx/Rx 2-port feed ,3.0m DBS band antenna only for linear polarization, can deliver exceptionally high performance for transmit/receive applications.

Probecom 3.0 M antenna RF specification can adhere to FCC Regulation 25.209,IESS and ITU-RS.580-5,INMARSAT, ASIASAT,INTELSAT, APT and CHINASAT,etc.

Probecom 3.0M antenna reflector incorporates stretch-formed doubly contoured panels with matched radials and hub for ease of field alignment. The standard designed azimuth over elevation pedestal provides a cost-effective solution for high stiffness and stability, full orbital arc coverage and fine drive performance, and ensures the pointing accuracy required for DBS band operation.

Highlighted Features

*Meets CCIR 580 and INTELSAT Requirements

*CP/LP switchable feed

*High RF performance

*Stainless hardware

*Different frequency ranges from many feed configurations

* Antenna reflector be pre-assembly in works, special designed taper-pin easy instllation and ensure on site assembly accuracy,no theodolite required

Options

*L,S,X bands and multi-bands

*800MHz bandwith is avaliable

*Feed blower or deicing with automatic controls

*Two or four Tx/Rx port in linear polarized feeds

Antenna Accessory

Motorization Kits

Limit Switches

ODU Support Kits

Factory Feed System Testing and Documentation

Ocean Transport Packing

Foundation Kit

Lightening Rod Kit

Grounding Kit Cable-Mounting Kit

Anti-icing and Deicing

Electrical Specification
Type			DBS-30T
Operating Frequency, GHz			DBS-Band
			Receive		Transmit
			10.95~12.75		17.3~18.4
Gain, Mid-band, dBi			49.2@11.85GHz		52.4@17.85GHz
Polarization			Linear
XPD(on Axis), dB			35		35
XPD across 1dB Beam Width, dB			30		30
VSWR			1.30		1.30
Antenna Noise Temperature 2-port feed 10° Elevation 30° Elevation 50° Elevation			48K 39K 35K
-3 dB Beam Width, Mid-band			0.6°		0.4°
Typical G/T（EL=10°）			29.0dB/K (70K LNA)
Tx. Power Capability, KW					1
Feed Interface			WR-75		WR-62
Feed Insertion Loss,dB			0.4		0.3
Isolation, Tx to Rx, dB			80
First Sidelobe 90%Peaksunder Following Envelop			-14 29-25logθ(1°≤θ＜20°)
Mechanical Specification
Antenna Diameter				3.0m
Antenna Type				Ring focus
Surface Accuracy（RMS）				≤0.5mm
Antenna Pointing Range		Azimuth Elevation Polarization		360°(Continuous) 0°~90°(Continuous) ±90°(Continuous)
Drive Mode				Manual or motorized
Motor Drive System	Azimuth Travel Rate Elevation Travel Rate			0.11°/S(0.06°/S) 0.17°/S(0.08°/S)
Environmental Specification
Operational Wind				72km/h gusting to97km/h
Survival Wind				200km/h
Temperature				-40°~+60°
Relative Humidity				100%
Solar Radiation				1135Kcal/h/m²
Seismic(Survival)				0.3g(H),0.15g(V)
Ice Loading				13mm Operational;25mmSurvival
