1.0m Ka Band Auto Tracking Flyaway antenna

2018-06-25

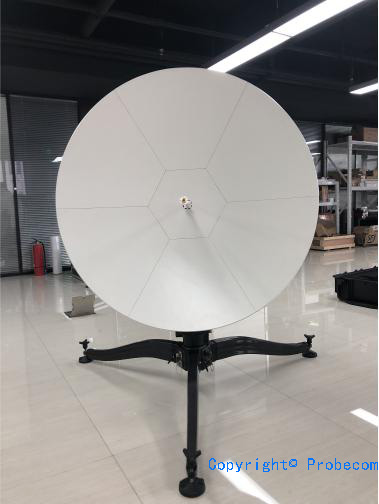

Probecom 1.0m Ka Band Auto Tracking Flyaway antenna

1

*Splashing Plate

*Panel and legs adopts carbon fiber material.

*Net weight 26.5kgs

*X/Ku/Ka band optional

*Feed quick changeable


2


*Power adaptor waterproof IP67

*Whole system waterproof IP65

*Travel speed from 0.1°/s - 3°/s

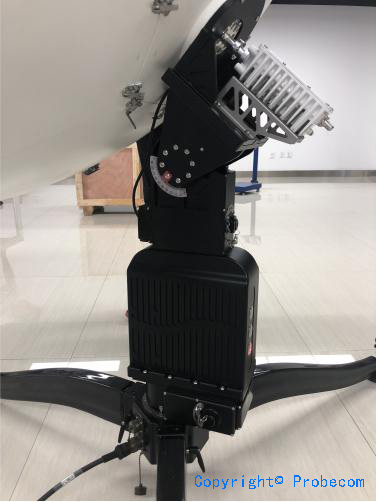

3

*Unique modular structure desgin , easy to maintenance.

*Support VIASAT, SKYWARE, GILAT tria system，

*Aluminum alloy shell for motor and control system.


4

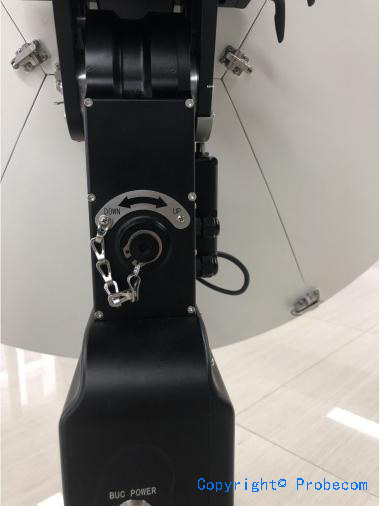

*Motorize and Manual optional for Elevation/Azimuth adjustment.


5

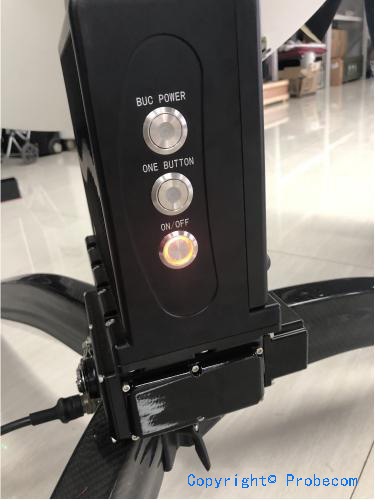

*one key operation

*BUC power button

*Modem, BUC and relative equipment can be mounted at side.


6

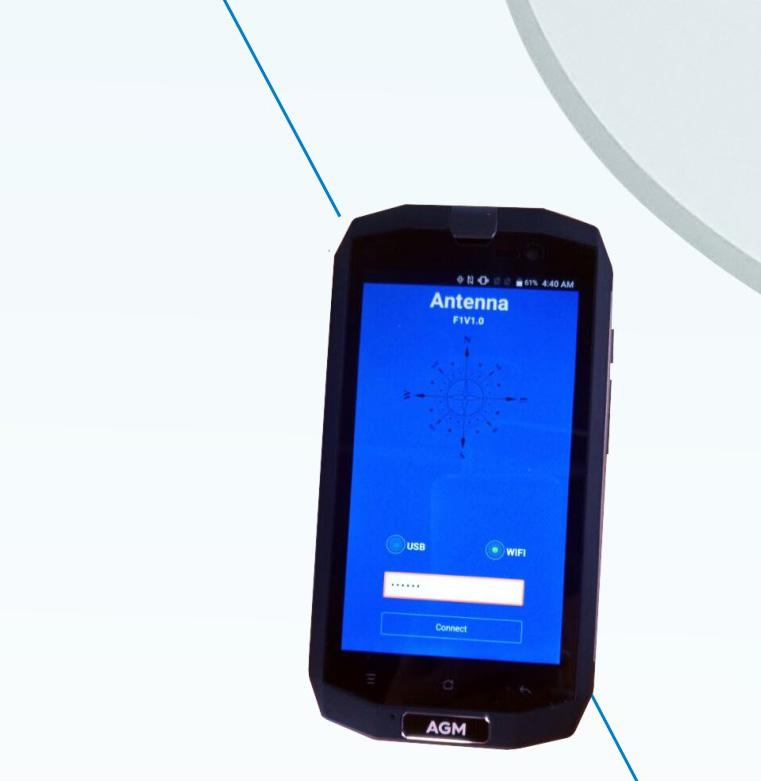

Handheld Terminal Control

*Android system, easy operation

*WIFI connection
