A NEW 1.2 METER KA BAND VSAT ANTENNA FOR SALE

2019-04-12

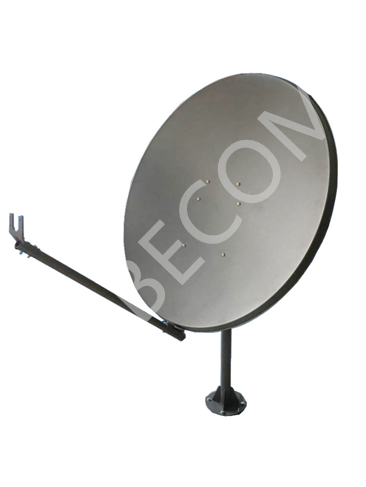

1.2m Ka Band VSAT加水印

Like first two VSAT Ka band here comes a bigger dish one of 1.2M Ka band VSAT, as the same advantages of f corrosion resistance and long lifetime. The antennas' surface accuracy (R.M.S) is less than 0.3mm and support various Ka transceivers in the market. we also provide this product in very competetive price and suitable for a wide range of applications.

TECHANICAL SPECIFICATION

Specifications

Ka-Receive

Ka-Transmit

Frequency(GHz)

19.2-20.2

29.5-30

Typical Gain(dBi)

45.7@20GHz

49.3@30GHz

VSWR

1.3:1

1.3:1

Beam width: -3dB

0.84°

0.30°

Polarization

Circular

Asix Ratio

1dB

Power Handing Capability

200W

Feed Interface

WR42

WR28

Feed Insertion Loss(dB)

0.5dB

0.5dB

Tx/Rx Isolation

85dB

First Side Lobe

-14dB

Side Lobes

CCIR.580-4

MECHANICAL SPECIFICATIONS

Type

Single Offset

Materials

Iron

Azimuth Travel

360°

Elevation travel

90°

Surface Accuracy (R.M.S)

0.3mm

Operational Wind Speed

76Km/h gusts to 97Km/h

Survival Wind Speed

200Km/h

Ambient Temperature

-30°+60°

Relative Humidity

0%~100

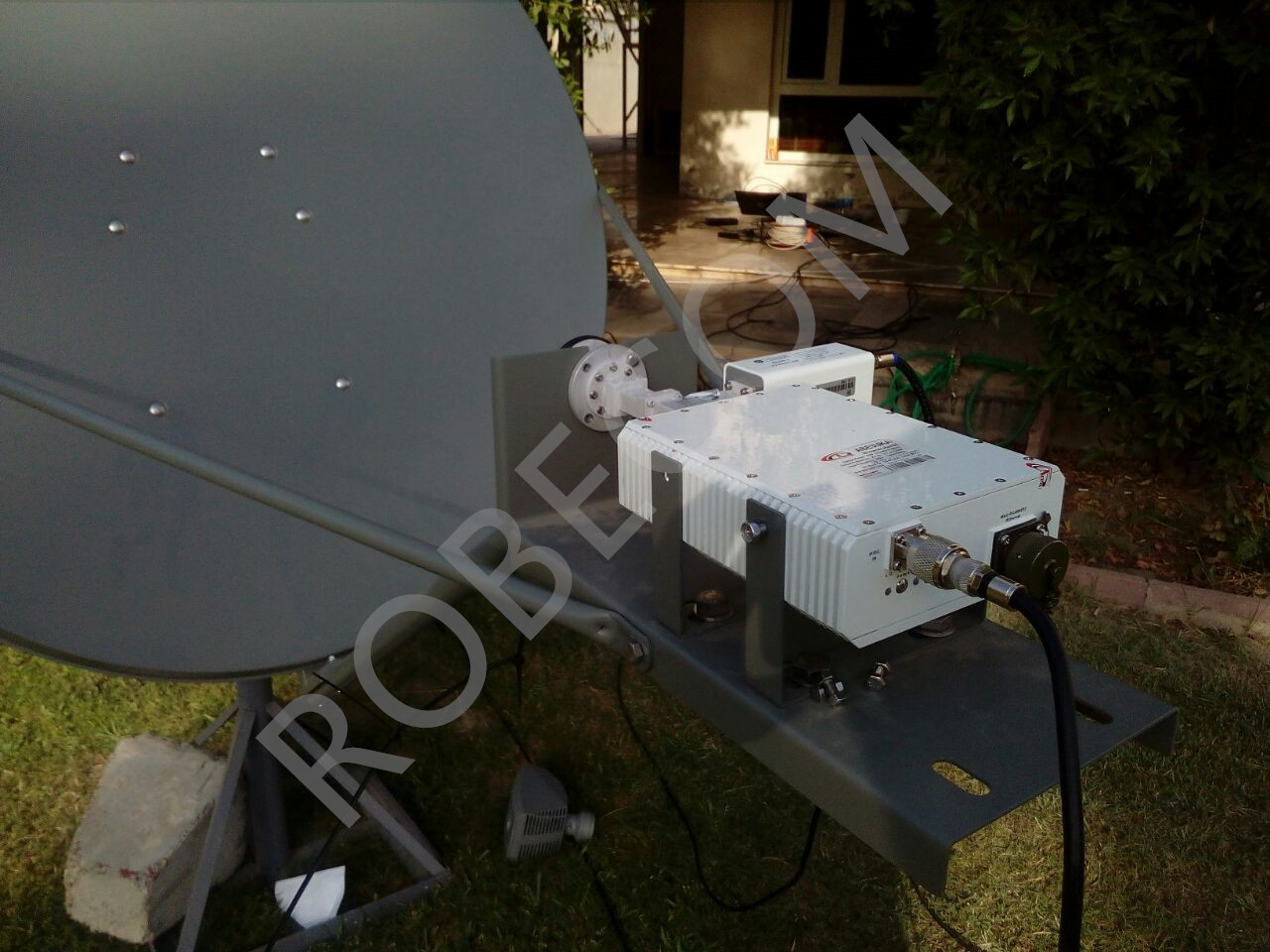

IMG-20180830-WA0007加水印


120 cm antenna installing at site


Inquiries on this 120 cm Ka band offset VSAT antenna please feel free to contact sales@probecom.cn for more information.


Best buy products of this month: 1.2M Ku Band Manual Flyaway Antenna, just click item for more information, contact sales@probecom.cn for price and detailed information.


Welcome to know our latest promotion product: Probecom Standard C Band Linear Diplexer hot sale high quality and completive price microwave components and smaller dish dia. of 98 cm Ka VSAT antenna are just one click away.


As a rapidly developing designer & manufacturer in satcom industry our company is concentrating on providing solutions on telecommunication we have strong ability of mass production machining ability in manufacturing flyaway antenna, earth station antenna of all ranges and bandwidth.
