Product description:

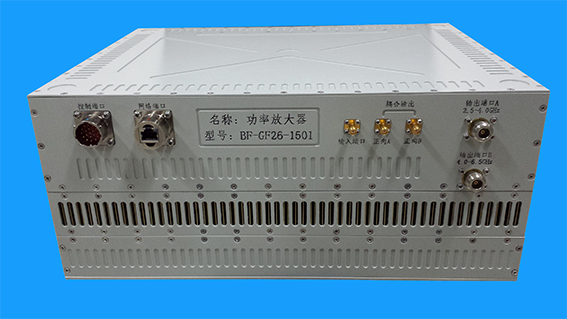

C-Band solid state power amplifier can be used in satellite communication ground station, data link, measurement and control, electronic warfare and other fields. It also can be used as a single component, or adopted phase synthesis to obtain higher output power to replace the traveling wave tube amplifier. Product frequency coverage from 5.8Ghz to 8.5Ghz, the output power range from 10W to 1KW. The product is suitable for ground, vehicle, carrier, airborne, etc.


Product Feature

The series of solid state power amplifier products integrated monitoring system, power supply system and cooling system. Built in monitoring system to provide forward / echo output power detection, temperature detection, remote switch machine, over temperature protection, VSWR protection, real-time monitoring of power amplifier voltage and current function. The monitoring system is communicated with the terminal computer through the serial port RS485/422/LNA, and all the test data are displayed on the computer terminal in real time.

The high power amplifier series products can replace a hundred watt traveling wave tube (TWTA) to solve the localization problem.

The output power can be customized according to customer requirements, continuous wave output power up to 1KW, the need for higher output power, greater bandwidth please kindly contact us.


SSPA Feature

 Output power range:10W~1KW

 High linearity

 Remote control via RS485/422 or Ethernet

 Forward and reverse power detection

 Output sampling

 Protection against over temperature

 Integrated band filter

 Products can be used outdoors



  Option:

   1:1 or 1:2 Redundant Configuration

   Adopted phase synthesis system for higher power input

   L band input(SSPB/BUC type)

   Harmonic filter

General Technical Index

 Operating Frequency

5.856.75GHz /5.96.4GHz/7.78.5GHz

 Output power

10W1KW

 Gain

60dB

 Gain adjustment range

20 dB in 0.2dB steps

 Gain flatness (full band)

± 1.5 dB max.

 Gain flatness (40MHz)

±0.3 dB max.

 Gain variation over temperature

±2dB max

 Input VSWR

1.5:1(max)

 Output VSWR

1.5:1(max)

 Spurious

-60 dBc max.



 Harmonics

-40dBc@P1dB



 AM/PM conversion

4°/dB@P1dBmax

 Three order IMD

-25dBc at 4dB total back-off from rated P1dB

 Group delay

1nsec p-p max

 Phase noise degradation

2dBmax

 Noise power density

70dBW/4kHzTransmit Band);-150dBW/4KHzReceive Band

 Power supply

 220VAC/48VDC/28VDC

 Cooling system

Cool air/cold liquid (optional

 Interface

 RF input



SMA-F

 RF output



 N-F or waveguide

 RF output sampling



SMA-F

 Communication and control interface



Navigation plug

 Power supply interface



Navigation plug

 Environmental

Operating temperature



 -40℃ ~ +55℃

 Storage temperature



 -55℃ ~ +88℃

Humidity



5% to 95% non-condensing

 Can meet Vehicle / carrier / airborne requirement
