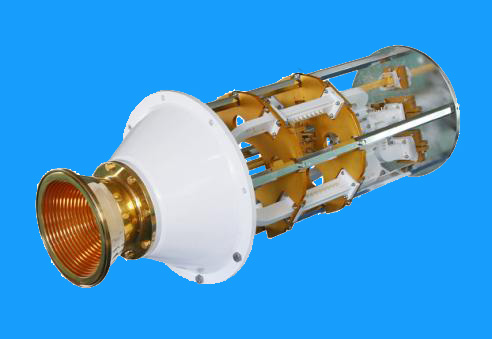

Customer Band Diplexer (X/Ka)


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

  Probecom Technologies' Torrance Facility designs, fabricates, and electrically tests waveguide filters and diplexers from 1-40 Ghz for the commercial, military .
  A full array of standard filters and diplexers is available for the various commercial and military frequency bands. Many are "off the shelf products". Custom designed filters and diplexers for specific customer applications are available.

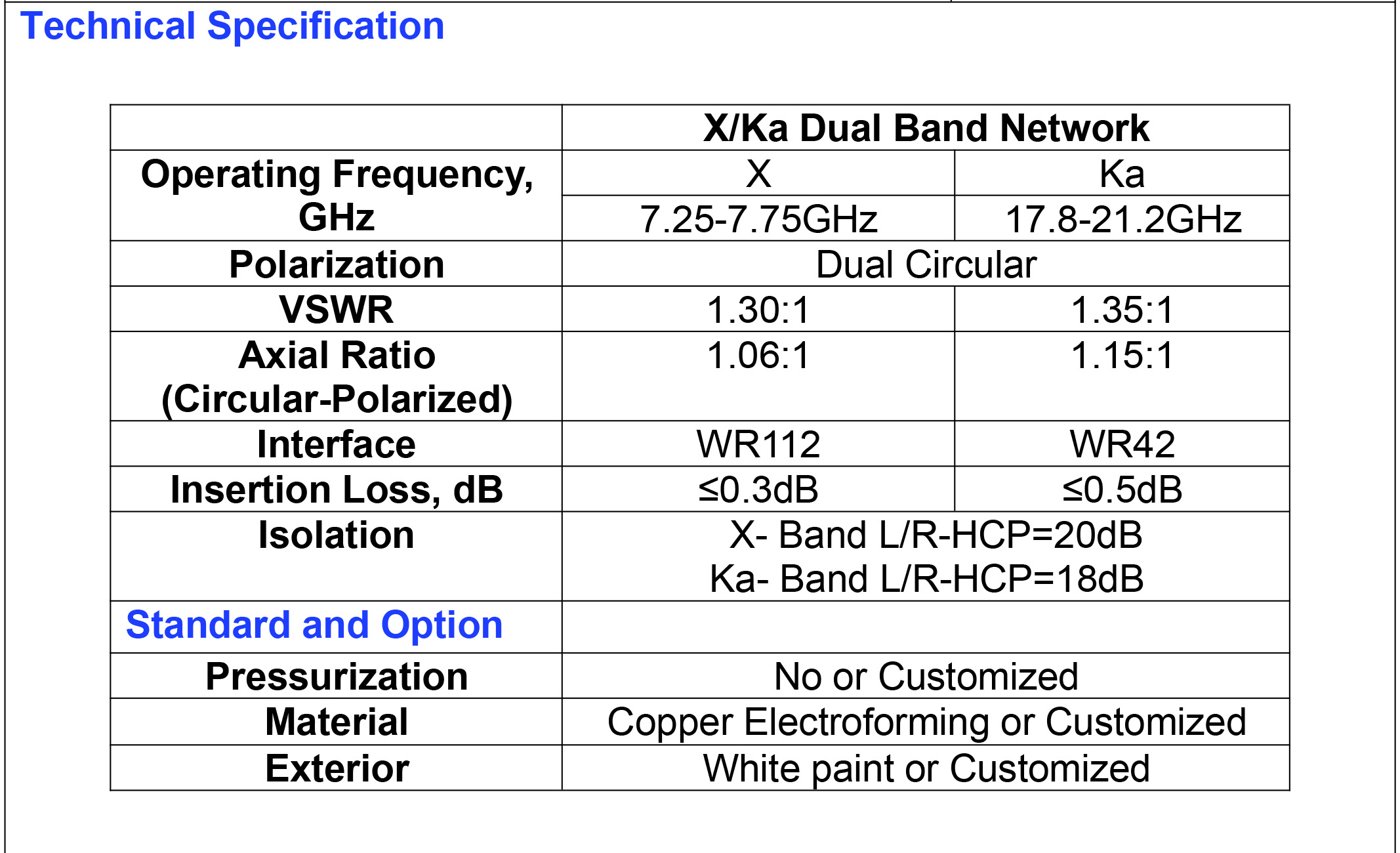

X/Ka Dual Band Network

Operating Frequency, GHz

X

Ka

7.25-7.75GHz

17.8-21.2GHz

Polarization

Dual Circular

VSWR

1.30:1

1.35:1

Axial Ratio

(Circular-Polarized)

1.06:1

1.15:1

Interface

WR112

WR42

Insertion Loss, dB

≤0.3dB

≤0.5dB

Isolation

 X- Band L/R-HCP=20dB

Ka- Band L/R-HCP=18dB

Standard and Option



Pressurization

No or Customized

Material

Copper Electroforming or Customized

Exterior

White paint or Customized
