Microwave Components

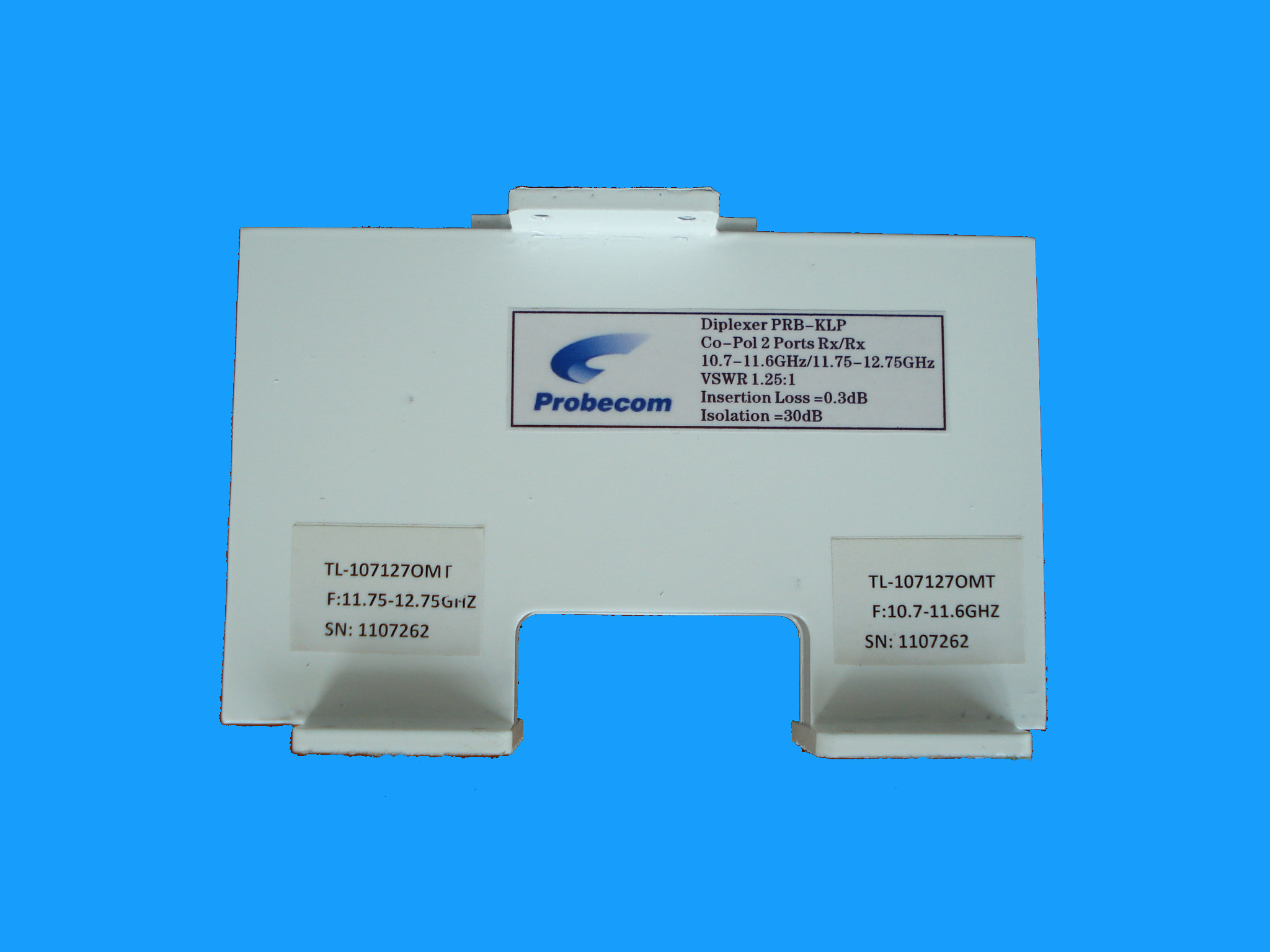

Extended KU Band Waveguide Splitter (RX Only)


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

Probecom Technologies' Torrance Facility designs, fabricates, and electrically tests waveguide filters and diplexers from 1-40 GHz for the commercial, military.

A full array of standard filters and diplexers is available for the various commercial and military frequency bands. Many are "off the shelf products". Custom designed filters and diplexers for specific customer applications are available.

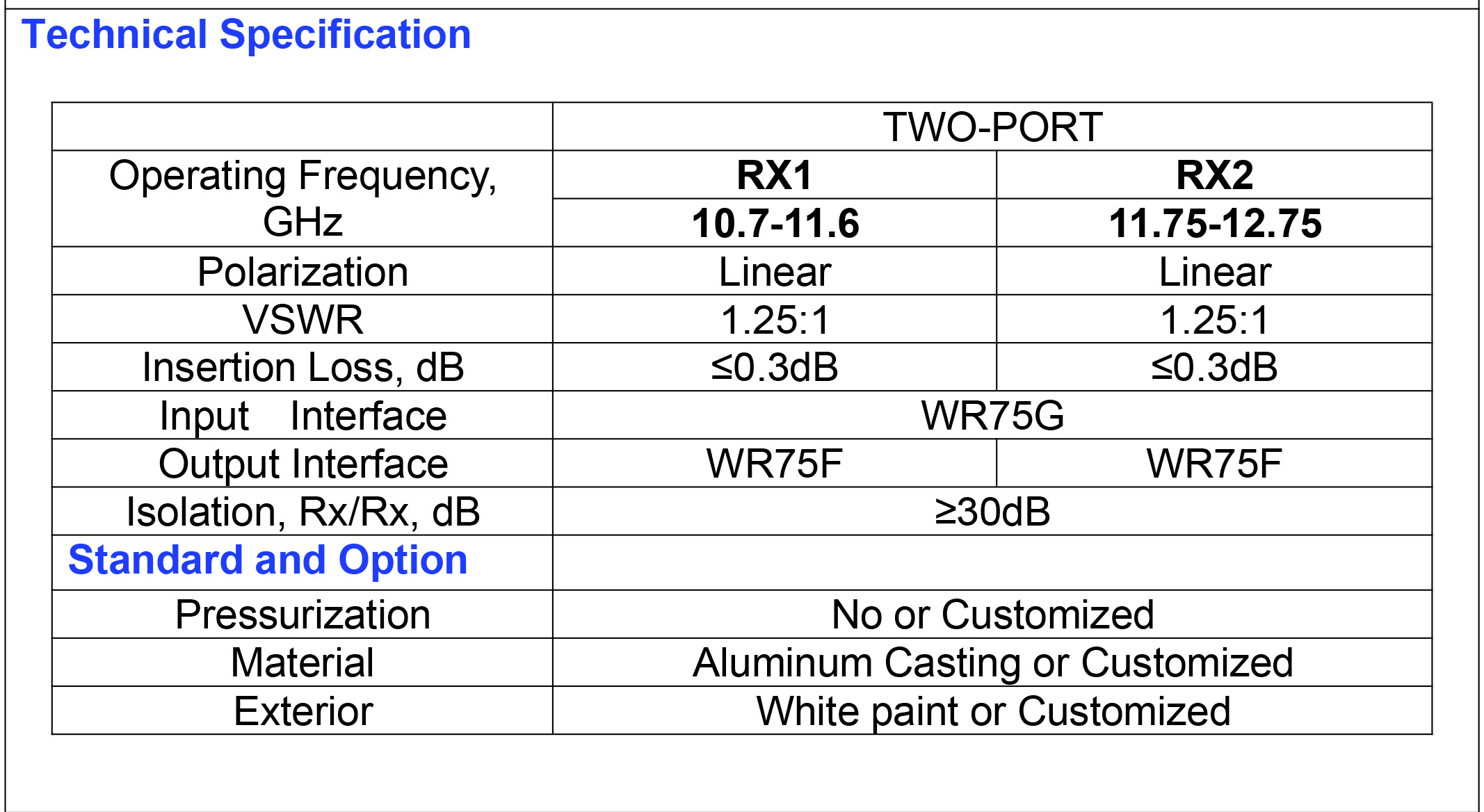

TWO-PORT

Operating Frequency, GHz

RX1

RX2

10.7-11.6

11.75-12.75

Polarization

Linear

Linear

VSWR

1.25:1

1.25:1

Insertion Loss, dB

≤0.3dB

≤0.3dB

Input  Interface

WR75G

Output Interface

WR75F

WR75F

Isolation, Rx/Rx, dB

30dB

Standard and Option



Pressurization

No or Customized

Material

Aluminum Casting or Customized

Exterior

White paint or Customized
