Microwave Components

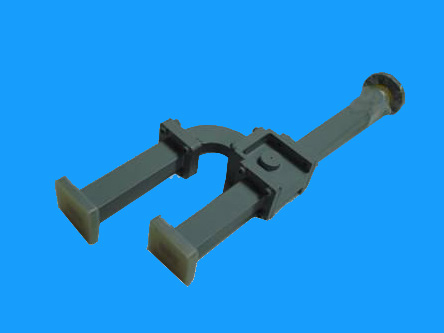

Lower Ku Band 2 ports Diplexer (Linear CO-POL)


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

Probecom Technologies' Torrance Facility designs, fabricates, and electrically tests waveguide filters and diplexers from 1-40 GHz for the commercial, military.

A full array of standard filters and diplexers is available for the various commercial and military frequency bands. Many are "off the shelf products". Custom designed filters and diplexers for specific customer applications are available.

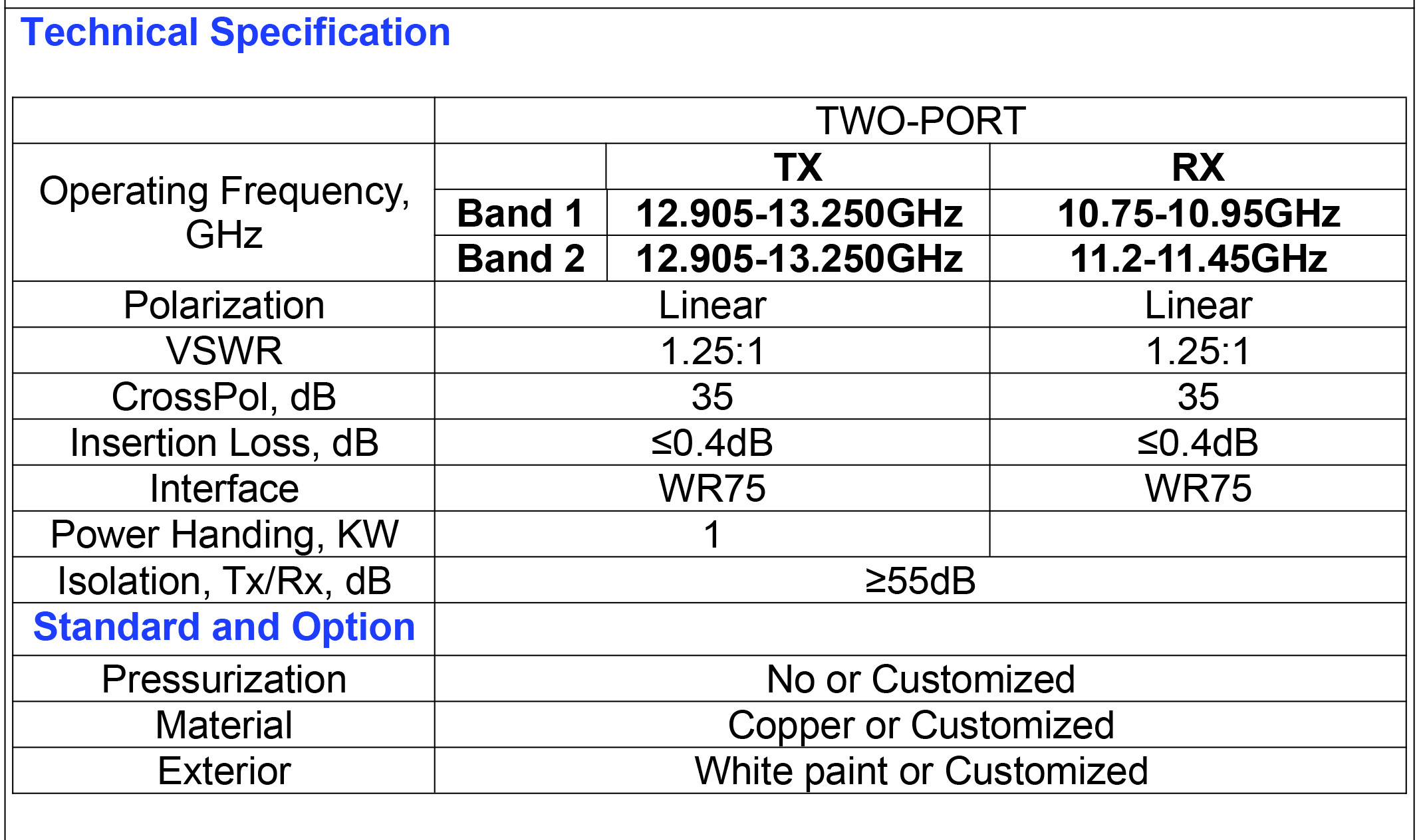

TWO-PORT

Operating Frequency, GHz



TX

RX

Band 1

12.905-13.250GHz

10.75-10.95GHz

Band 2

12.905-13.250GHz

11.2-11.45GHz

Polarization

Linear

Linear

VSWR

1.25:1

1.25:1

CrossPol, dB

35

35

Insertion Loss, dB

≤0.4dB

≤0.4dB

Interface

WR75

WR75

Power Handing, KW

1



Isolation, Tx/Rx, dB

55dB

Standard and Option



Pressurization

No or Customized

Material

Copper or Customized

Exterior

White paint or Customized
