Meteorological Radars

Low-Level Wind Profiler Radar


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

The low-level wind profile radar is a flexible deploying atmospheric detection and remote sensing device which is used in low-level clear sky. It adopts frequency modulation and persistent wave system and solid-state active phased array technology, which can provide high precision wind data of 20m~600m low-level in time. This product can be installed and fixed in car. It is used for observation and numerical forecast of low-level atmospheric wind filed, environmental monitoring, small and medium scale disastrous weather monitoring and early warming, airport wind field detection and power wind field exploration.

Advantage

a flexible deploying atmospheric detection and remote sensing device which is used in low-level clear sky.

high spatial and temporal resolution high detection precision

good maneuverability

simple structur

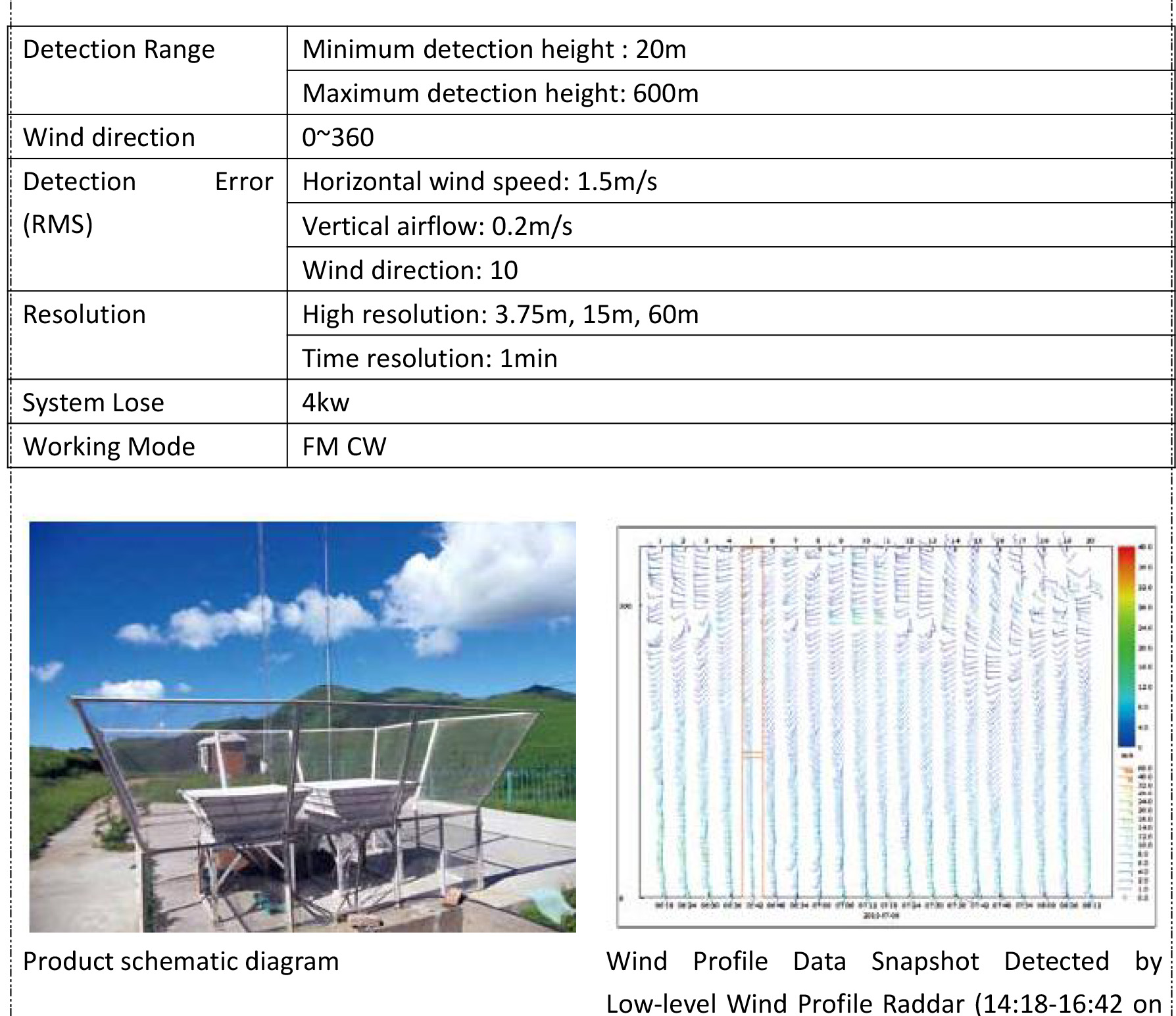

 Detection Range

 Minimum detection height : 20m



 Maximum detection height: 600m

 Wind direction

 0~360

 Detection Error (RMS)

 Horizontal wind speed: 1.5m/s



 Vertical airflow: 0.2m/s



 Wind direction: 10

 Resolution

 High resolution: 3.75m, 15m, 60m



 Time resolution: 1min

 System Lose

 4kw

 Working Mode

 FM CW
