Flyaway Antenna

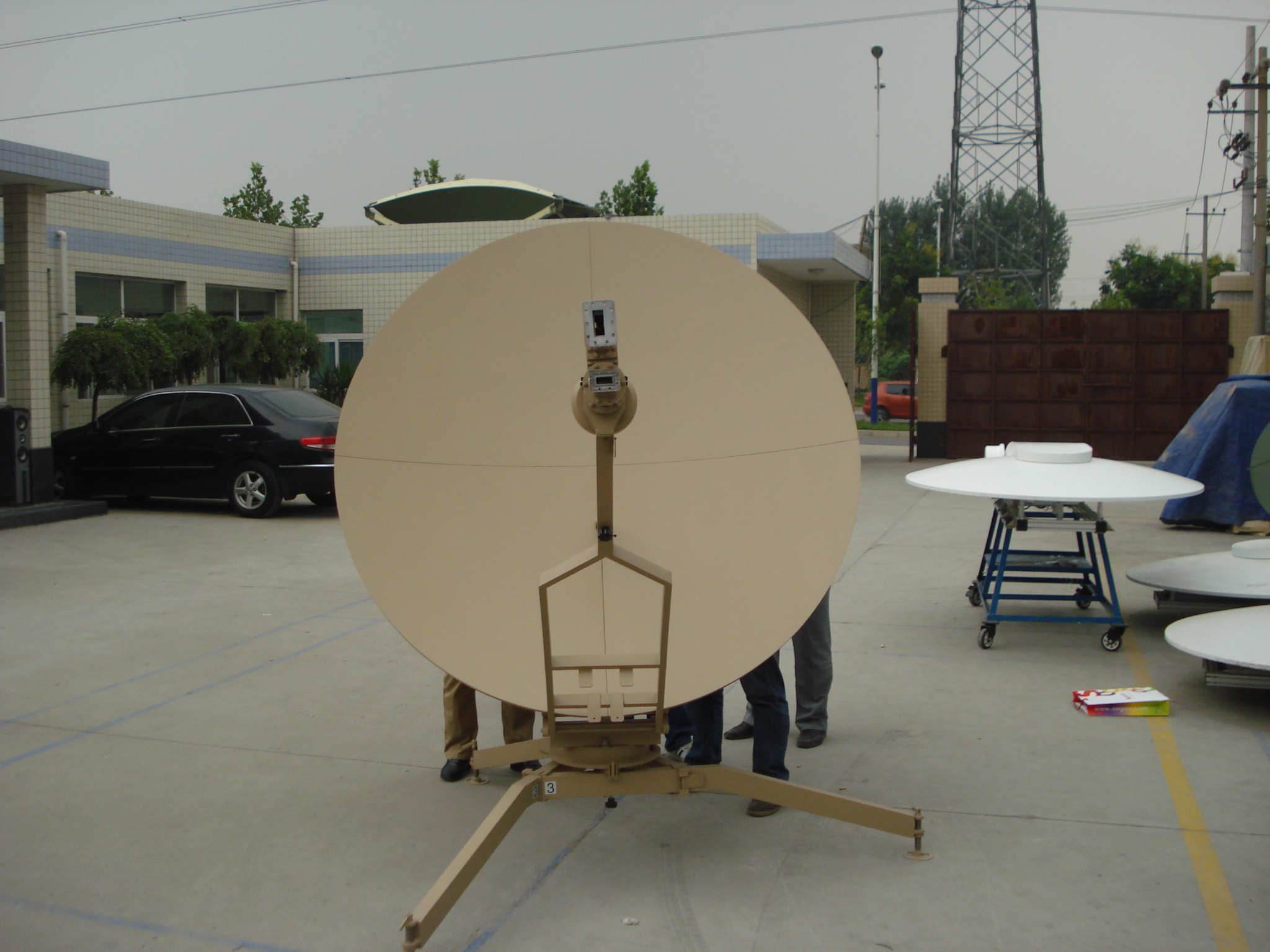

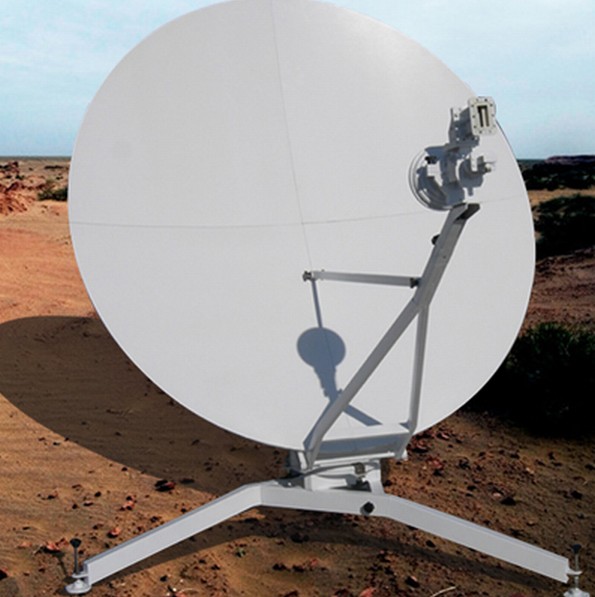

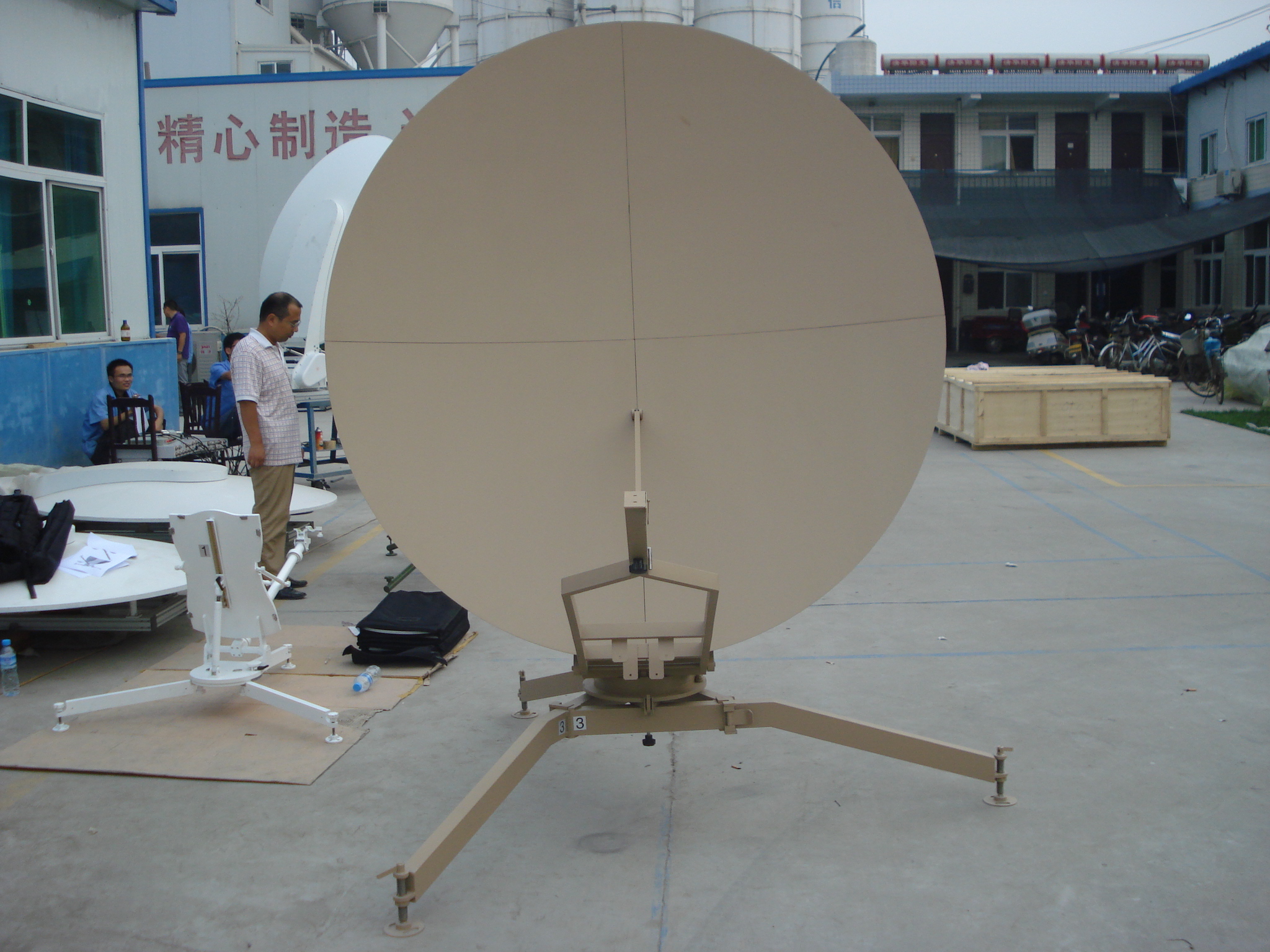

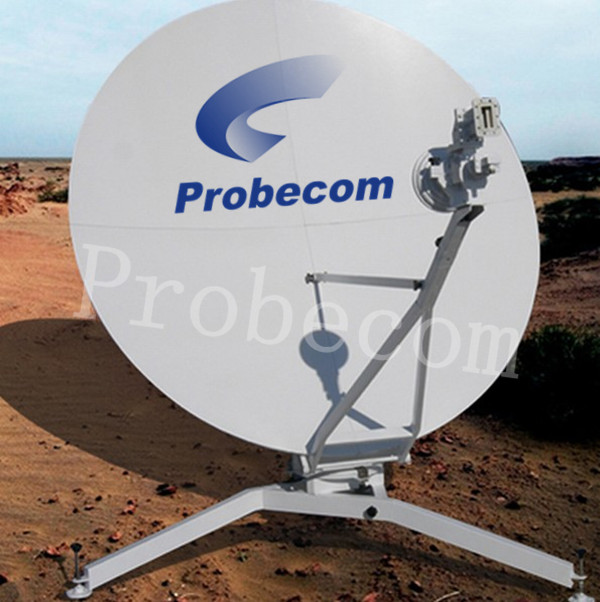

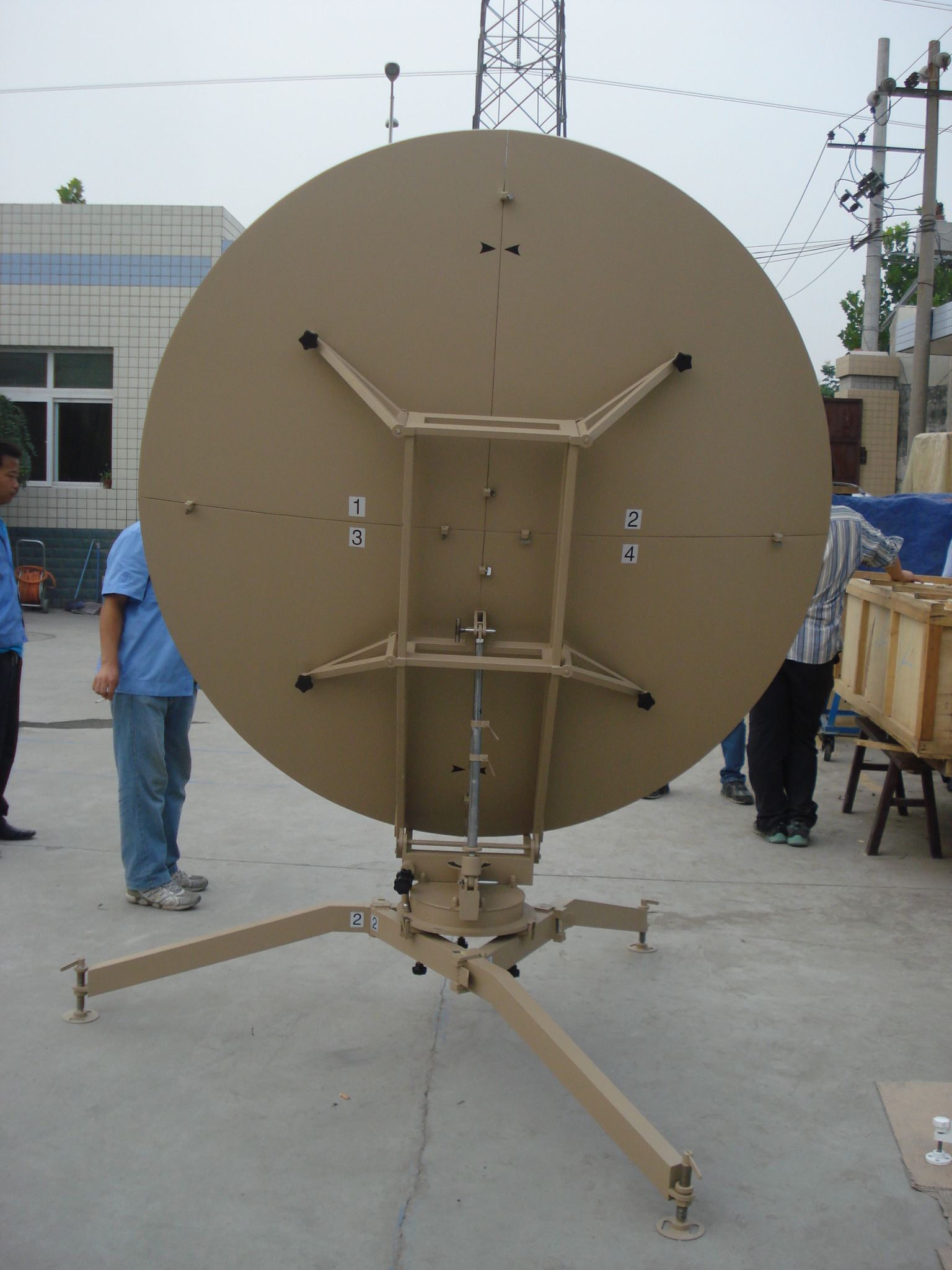

1.8m Carbon Fiber Manual Flayway Antenna


Online consulting:

  • DESCRIPTION
  • TECHNICAL
  • SPECIFICATIONS

The probecom 1.8m flyway manualsatellite satcom antenna is specially designed for highly portable antenna by adopting carbon fiber material with light weight and can be assembled in less than 3 minutes by two person .

It can provide users exceptional performance in high gain and low side lobe.

Applications

Sudden public events and all kinds of disasters on-site information gathering Disaster relief.

Public security, military, government, oil, water conservancy, electricity, finance and other important sectors of the country

The remote areas and the vast rural areas out of coverage.

Field operations, exploration, military police and news media.

Highlight Features

Carbon fiber antenna reflector with light weight, high precision and high efficiency, corrosion resistance and other characteristics, it ensured the antenna in the normal operation under harsh environment in greatest degree.

Compact structure, Lightweight, portable, rapid deployment, high performance, a person can install within 3 minutes, available in airline baggage.

The latest design of the Ku-band satellite antenna, being compact and robust, cost-effective can be used in the fast and reliable satellite communications.

Designed specifically for field use, regardless of when and where, it can quickly transfer high-quality broadband content.



Components

Single Offset Antenna

Azimuth & elevation turntable

Portable case

Compass& leveling

Electrical Specification

Type

CFM180EC

Frequency(GHz)

Extended C band

Operation temperation

Receive

Transmit

3.4~4.2

5.85~6.725

Typical Gain(dBi)

345

39.5

Polarization

Linear

VSWR

1.25:1

1.25:1

Beam width: -3dB

3.1°

19°

Power Handing Capability



100W

Feed Interface

CPR-229F

CPR-137F

Feed Insertion Loss(dB)

0.4dB

0.2dB

Tx/Rx Isolation

80dB

Cross Polarization Isolation

≥30dB

Side lobe

At least 90% of the side-lobe peaks does not exceed

32-25logθ(100λ/D<θ≤20°)

MECHANICAL SPECIFICATIONS

Weight

10kg

material

Carbon Fiber

Mounting time

3 minutes Two Persons

Drive mode

Manual Drive

Azimuth Travel

360°

Elevation travel

5°85°

Polarization Travel Rate

±90°

Surface Accuracy (R.M.S)

0.3mm

Ambient Temperature

-30°+60°

Relative Humidity

0%~100
